YTH 224 T (960410309-00) - Husqvarna Yard Tractor (2012-10) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

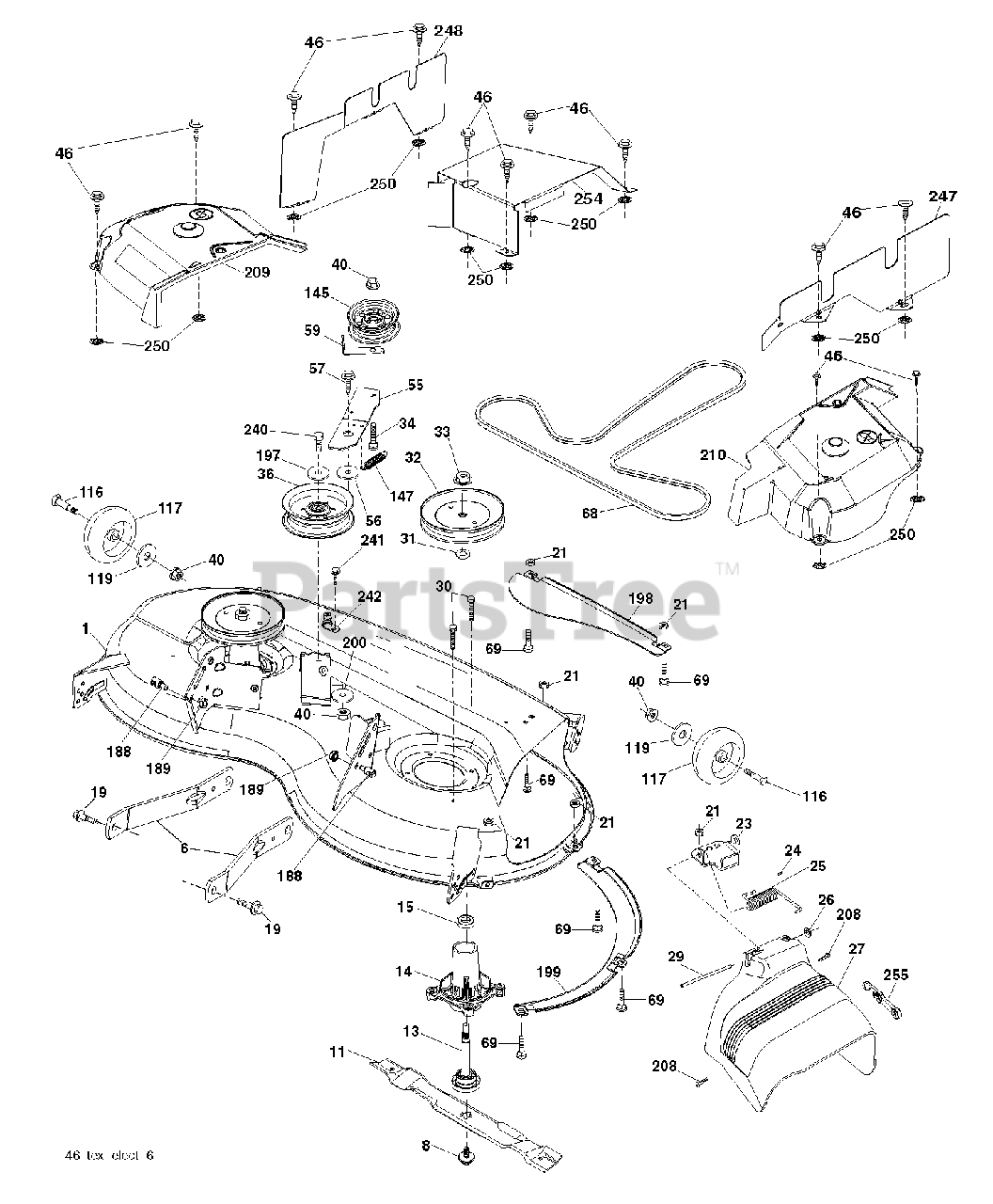

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532442415

DECK.WLDMT.W/TB.46.4GA.TTR
(Superseded to 532421798)

$375.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532442895

SHIELD SUBASM DEFLECTOR 46 FRE
(Superseded to 583567001)

$51.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 16

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 9

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 8

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

197

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 532432395

COVER MANDREL LEFT
(Superseded to 583479901)

$17.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532432396

COVER MANDREL RIGHT
(Superseded to 583480001)

$27.99

$

Usually ships in 3-10 days

0

240

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 17

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

247

Husqvarna 532432398

SHIELD RIGHT
(Superseded to 583480201)

$36.99

$

Usually ships in 3-10 days

0

248

Husqvarna 532432397

SHIELD LEFT
(Superseded to 583480101)

$28.99

$

Usually ships in 3-10 days

0

250

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

254

Husqvarna 532432399

SHIELD ASSEMBLY 46 TEX REAR DE
(Superseded to 583480301)

$47.99

$

Usually ships in 3-10 days

0

255

Husqvarna 532436087

ELASTIC STRAP KIT
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) and bearing (key 15) only- ulley /nut /washer and blade bolt /washers not included)

$47.99

$

In Stock, Qty 20+

0

--

Husqvarna 532421797

$508.99

$

Usually ships in 3-10 days

0
