YTH 2242 TDRF (960410237-00) - Husqvarna 42" Yard Tractor (2011-05) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

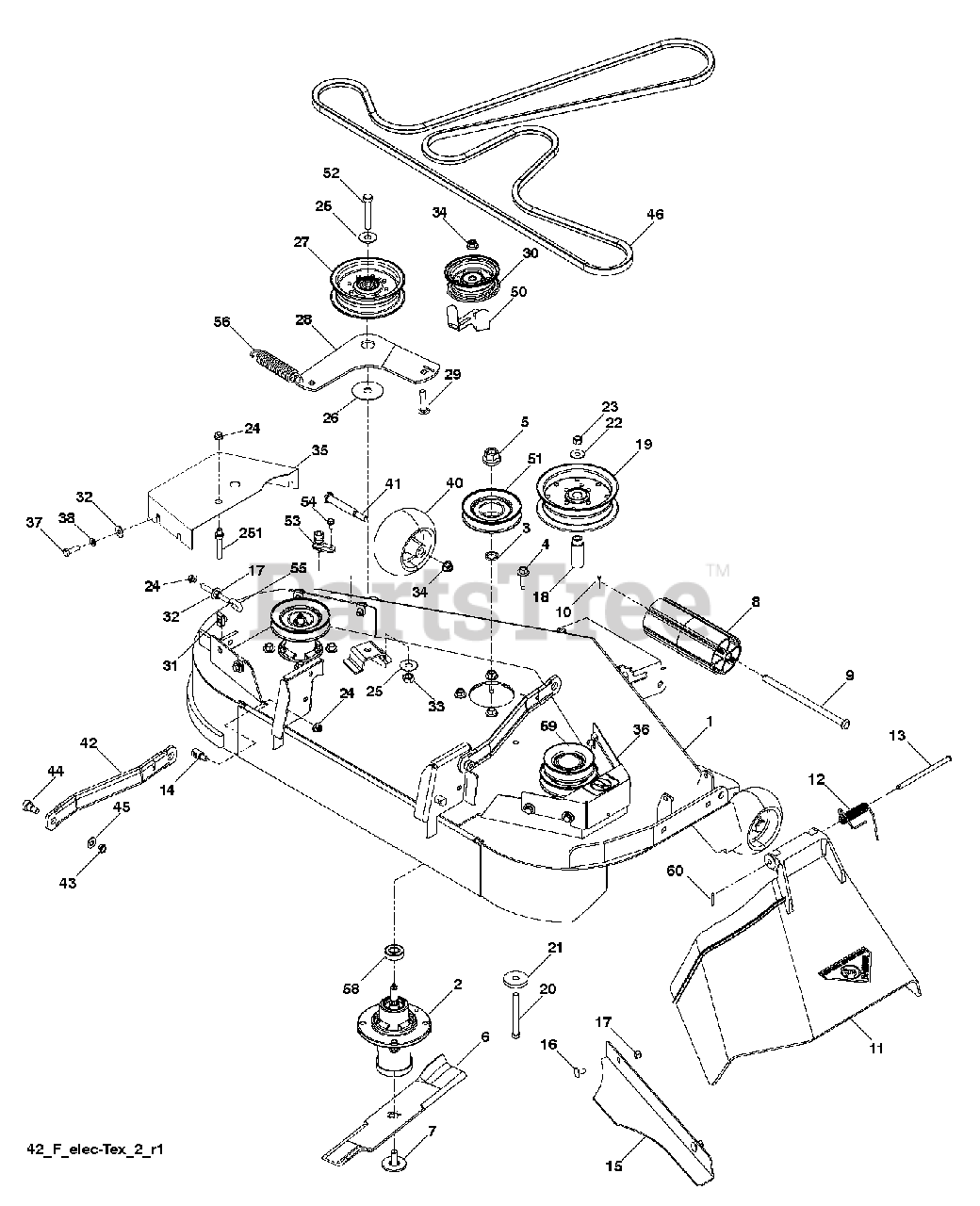

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 575438001

DECK SVC W/DECALS 42 YTH ORNGE

$1941.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$74.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539112078

BLADE, 14 5/8"

$21.99

$

In Stock, Qty 20+

0

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532110731

DISCHARGE CHUTE - 42 PLASTIC
(Superseded to 539110731)

$53.99

$

In Stock, Qty 7

0

12

Husqvarna 532110735

SPRING - TORSION
(Superseded to 539110735)

$

$

Not available

13

Husqvarna 532110736

PIN, CLEVIS 5/16 X 5.19

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

15

Husqvarna 539112412

PLATE.CONFINEMENT.42"
(Superseded to 539112413)

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 575224501

BUSHING, IDLER

$24.99

$

In Stock, only 4 left!

0

19

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

20

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, Qty 9

0

21

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

22

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 11

0

26

Husqvarna 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$34.99

$

In Stock, Qty 20+

0

28

Husqvarna 574827101

ARM IDLER RAW
(Superseded to 574827102)

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 532177968

PULLEY.IDLER.FLAT

$24.99

$

In Stock, Qty 20+

0

31

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

35

Husqvarna 575224701

(Superseded to 583623401)

$26.99

$

Usually ships in 3-10 days

0

36

Husqvarna 575967101

$

$

Currently unavailable

37

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

40

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

44

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 574845601

BELT, 42" FAB DECK

$85.99

$

In Stock, Qty 12

0

50

Husqvarna 575224301

BELT GAURD
(Superseded to 532141043)

$4.99

$

In Stock, Qty 17

0

51

Husqvarna 575224401

PULLEY, MANDREL 4.08 OP

$37.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 874780740)

$3.99

$

In Stock, Qty 13

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

54

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 10

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

56

Husqvarna 539106850

SPRING

$

$

Not available

58

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 575416201

PULLEY, COLLECTION 42

$75.99

$

In Stock, only 2 left!

0

60

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

251

Husqvarna 532164173

KEEPER.BELT.ENGINE

$8.99

$

Usually ships in 3-10 days

0

--

Husqvarna 574792401

$

$

Currently unavailable
