Z 2002K (7080186) - Snapper Zero-Turn Mower, 20hp Joystick Steering Control Parts (Part 2) Parts Diagram

Zero-Turn Mower, 20hp

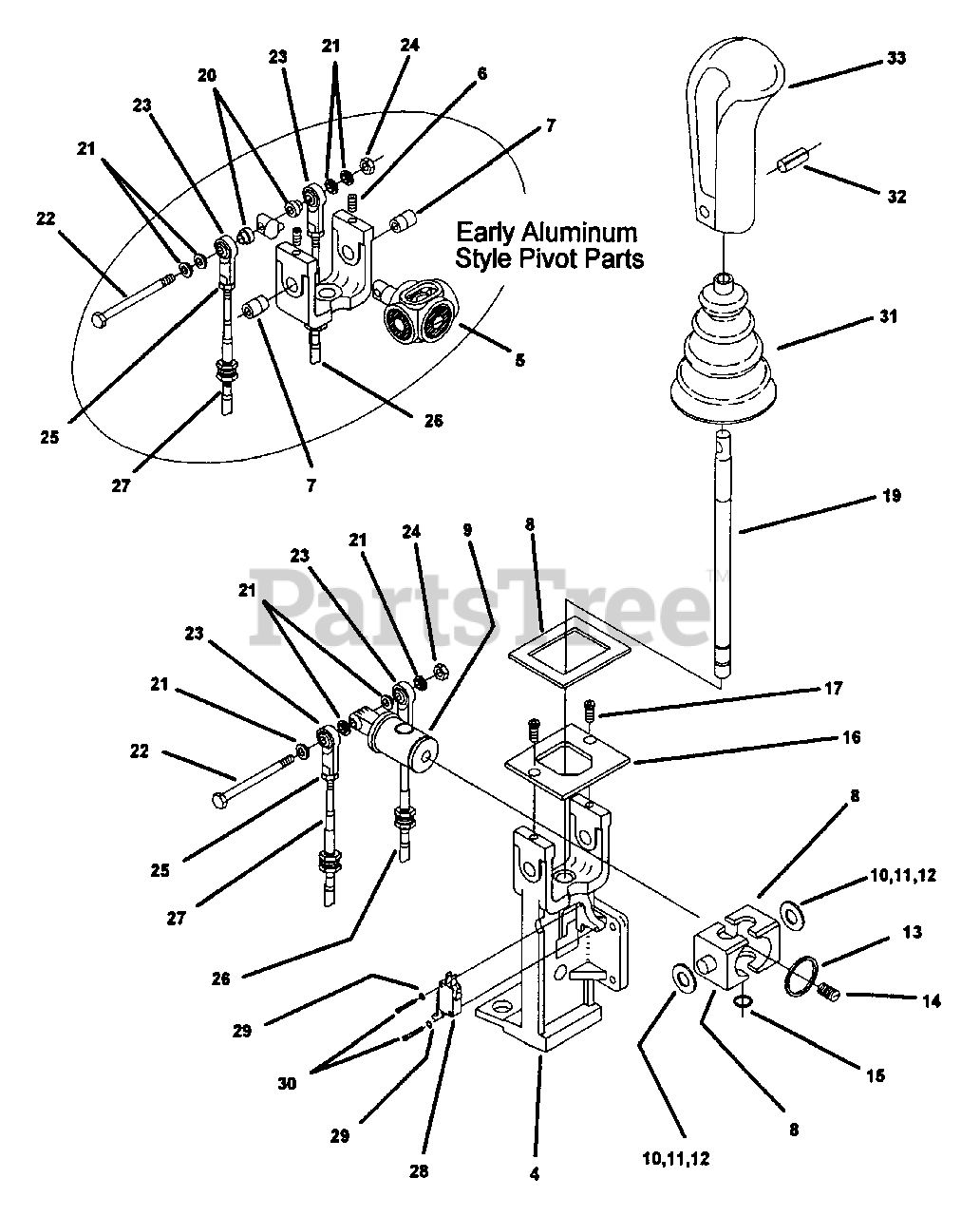

Joystick Steering Control Parts (Part 2) Parts Diagram

  • Title

4

Snapper 7079522

JOYSTICK YOKE

$

$

Currently unavailable

EARLY ALUMINUM STYLE PIVOT PARTS

Note: USE REPLACEMENT KIT #62303 (Kit includes items 8 thru 13)

$

$

Not available

5

PIVOT BLOCK ASSEMBLY

Note: USE REPLACEMENT KIT #62303 (Kit includes items 8 thru 13)

$

$

Not available

6

Snapper 7079372

SET SCREW, 1/4-20 X 5/16 Nylock
(Superseded to 7079372YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7079526

TRUNNION PIN
(Superseded to 7079526YP)

$6.99

$

Usually ships in 2-12 days

0

LATER DELRIN PLASTIC STYLE PIVOT PARTS

Note: USE REPLACEMENT KIT #62303 (Kit includes items 8 thru 13)

$

$

Not available

8

PIVOT BLOCK, Delrin Plastic

Note: USE REPLACEMENT KIT #62303 (Kit includes items 8 thru 13)

$

$

Not available

9

PIVOT SHAFT, Delrin Plastic

Note: USE REPLACEMENT KIT #62303 (Kit includes items 8 thru 13)

$

$

Not available

10

Snapper 7062305

SHIM WASHER, 1/2 ID x 1 OD x .005 Thick
(Superseded to 7062305YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7062306

SHIM WASHER, 1/2 ID x 1 OD x .010 Thick
(Superseded to 7062306YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7062307

SHIM WASHER, 1/2 ID x 1 OD x .020 Thick

$

$

Currently unavailable

13

Snapper 7062304

SNAP RING, Spirlock

$

$

Not available

14

Snapper 7079537

BALL PLUNGER, 3/8-16 X 5/8"
(Superseded to 7079537YP)

$25.99

$

Usually ships in 2-12 days

0

15

Snapper 7079536

SNAP RING, 1/2"
(Superseded to 7079536YP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7079734

TOP PLATE, Joystick
(Superseded to 7079734YP)

$33.99

$

Usually ships in 2-12 days

0

17

Snapper 7079576

SCREW, 1/4-20 X 1/2", Flathead
(Superseded to 7079576YP)

Note: Was 79587

$3.49

$

Usually ships in 2-12 days

0

?18

Snapper 7079867

GASKET, Foam
(Superseded to 7079867YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7079696

JOYSTICK SHAFT

$37.99

$

In Stock, only 1 left!

0

20

Snapper 7079645

BUSHING, Ball Joint
(Superseded to 7079645YP)

$5.99

$

Usually ships in 2-12 days

0

21

Snapper 7079807

BUSHING, Ball Joint

$

$

Not available

22

Snapper 7091317

CAP SCREW, 1/4-20 X 3", Hex Head
(Superseded to 704208)

Note: Was 62259

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7079513

BALL JOINT, 1/4-28, Female
(Superseded to 7079513YP)

$23.99

$

Usually ships in 2-12 days

0

24

Snapper 7076978

NUT, 1/4-20, Nylock
(Superseded to 703232)

Note: Was 79260 (Now 76978 + 90372)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7090095

NUT, 1/4-28,
(Superseded to 7090095FS)

Note: (comes with 26 & 27)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7079511

PUSH-PULL CABLE, 55"

$

$

Not available

27

Snapper 7079795

PUSH-PULL CABLE, 39"
(Superseded to 7079795YP)

$186.99

$

In Stock, only 1 left!

0

28

Snapper 7079530

SWITCH, SPDT, Miniature
(Superseded to 7079530YP)

$41.99

$

Usually ships in 2-12 days

0

29

Snapper 7079534

LOCK WASHER, #4 Star

$

$

Currently unavailable

30

Snapper 7079535

SCREW, #4-40 X 3/4"

$

$

Currently unavailable

31

Snapper 7079529

BELLOWS BOOT

$

$

Not available

32

Snapper 7079294

ROLL PIN, 3/16 X 1"
(Superseded to 7079294YP)

$2.99

$

In Stock, only 1 left!

0

33

Snapper 7023656

HANDLE GRIP
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 18

0

Snapper 7062303

JOYSTICK PIVOT REPLAC

$

$

Not available
