Z 248 F (967953902-00) - Husqvarna 48" Zero-Turn Mower (2018-09) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

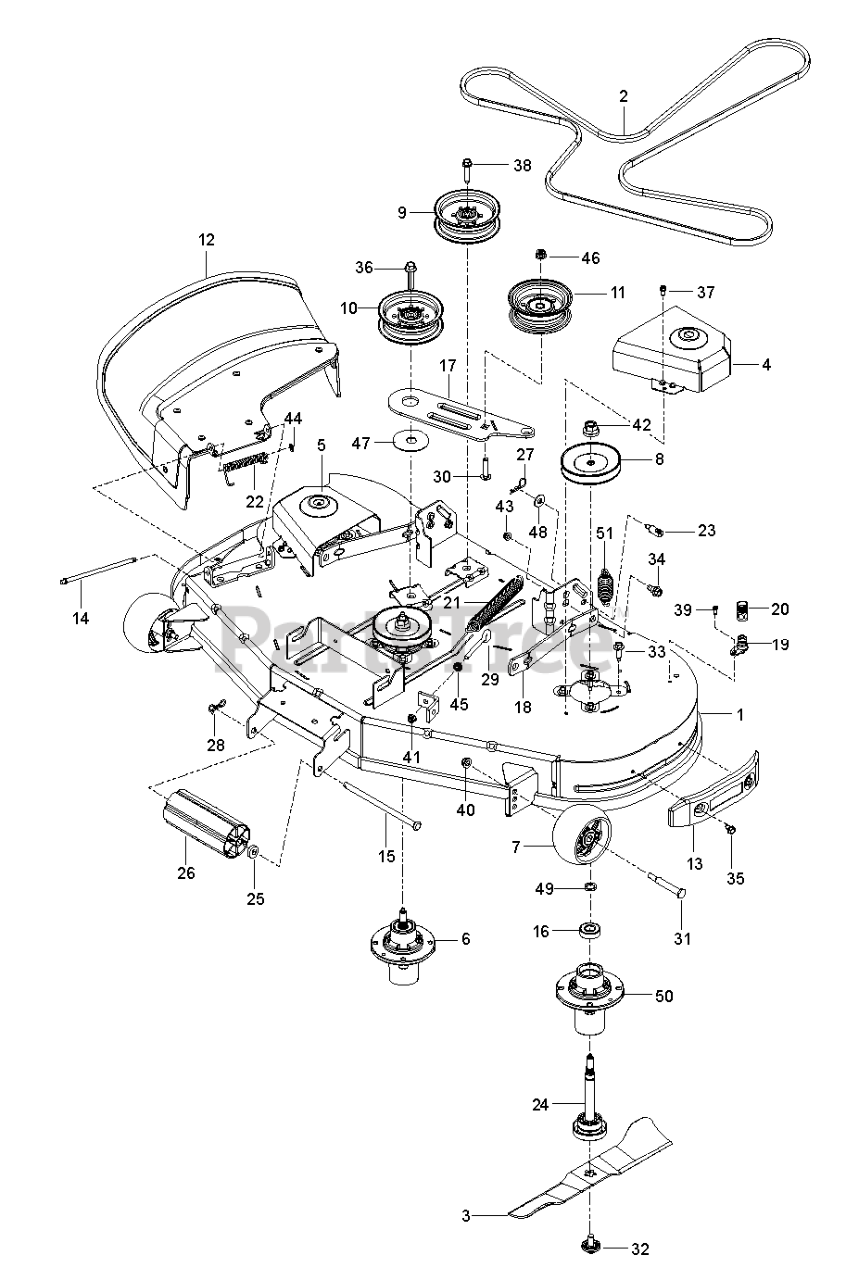

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

37

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 583810101

DECK SVC.48.CC.RZ 668

$911.99

$

Usually ships in 3-10 days

0

22

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$4.99

$

In Stock, Qty 6

0

47

Husqvarna 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$34.99

$

In Stock, Qty 20+

0

27

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 582504001

SPRING.EXTENSION

$7.49

$

In Stock, Qty 10

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$24.99

$

In Stock, Qty 20+

0

23

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

4

Husqvarna 588812802

COVER.PNT.MANDREL.LH.ZTR.GREY

$12.99

$

In Stock, only 4 left!

0

26

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

20

Husqvarna 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

43

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

2

Husqvarna 582558001

BELT.DECK

$97.99

$

In Stock, Qty 8

0

44

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 20+

0

42

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 11

0

24

Husqvarna 532187291

SHAFT ASM MANDREL

$25.99

$

In Stock, Qty 20+

0

7

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 582541103

BUMPER 48 CLEARCUT TRIM SIDE A

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

16

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

50

Husqvarna 539131767

MANDREL, HOUSING - CAST IRON
(Superseded to 539131898)

$80.99

$

In Stock, Qty 20+

0

40

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

8

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$10.99

$

In Stock, Qty 20+

0

28

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.49

$

In Stock, Qty 8

0

46

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

11

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

12

Husqvarna 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR

$

$

Not available

15

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

34

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

48

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

51

Husqvarna 539118762

SPRING

$

$

Not available

3

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$30.99

$

In Stock, Qty 20+

0

17

Husqvarna 588812202

ARM.PNT.CLUTCHING.EDIP

$7.49

$

Usually ships in 3-10 days

0
