Z 248 F (967953902-00) - Husqvarna 48" Zero-Turn Mower (2018-09) SEAT Parts Diagram

48" Zero-Turn Mower

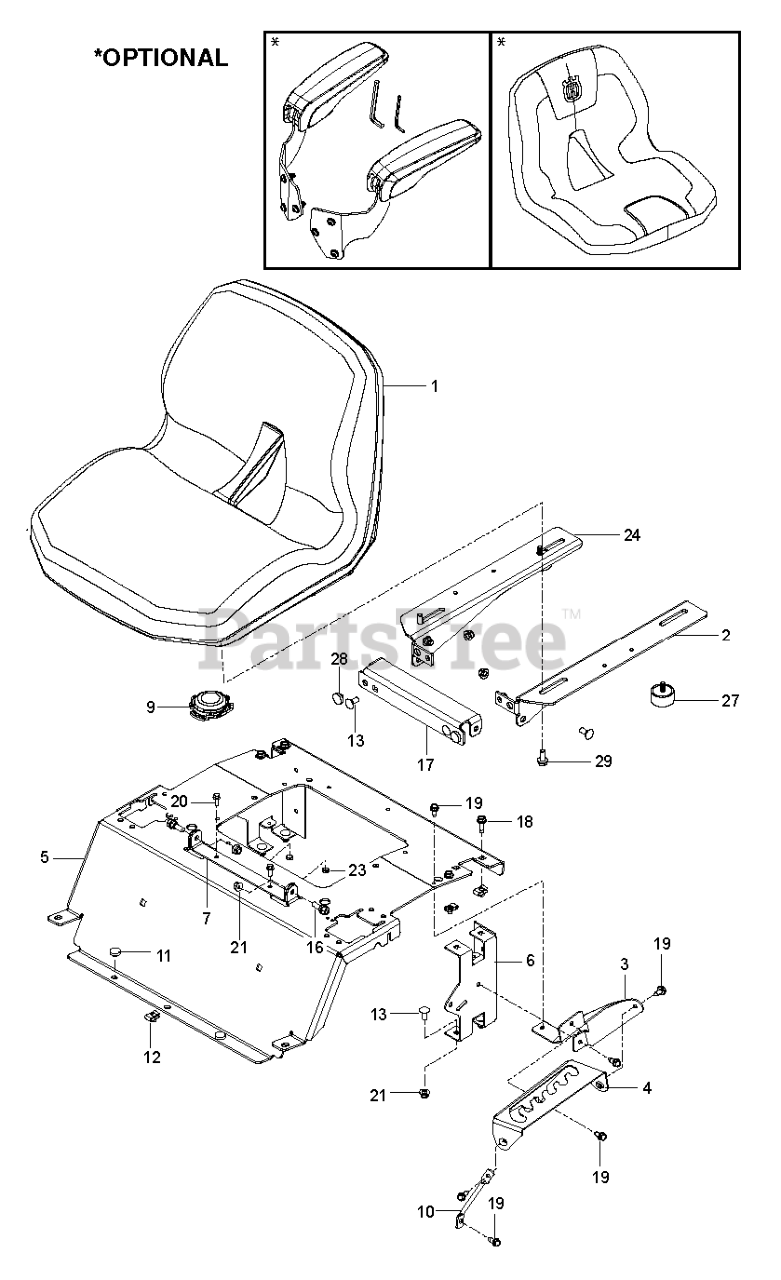

SEAT Parts Diagram

  • Title

16

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 597959401

Seats

$120.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$6.99

$

In Stock, Qty 6

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

27

Husqvarna 582478702

BUMPER 5/16-18 CLEAR ZINC

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589028501

SCREW.FLG.LOCKING.1/4-20X.75

$

$

Not available

17

Husqvarna 596673002

BRACKET FRONT SEAT PAN BLACK X

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

5

Husqvarna 589761206

SUPPORT.SEAT.RZ.HUSQ.ORANGE

$136.99

$

Usually ships in 3-10 days

0

24

Husqvarna 596679402

BRACKET SEAT PAN RIGHT BLACK X

$14.99

$

Usually ships in 3-10 days

0

Husqvarna 597658203

ARMREST KIT

$133.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 2 left!

0

19

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 597658101

Seats

$302.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

2

Husqvarna 596672902

BRACKET SEAT PAN LEFT BLACK X4

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590899903

BRACKET.SEAT.REINF.X668

$10.99

$

Usually ships in 3-10 days

0
