Z 248 F (970467501-00) - Husqvarna 48" Zero-Turn Mower (2020-03) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

48" Zero-Turn Mower

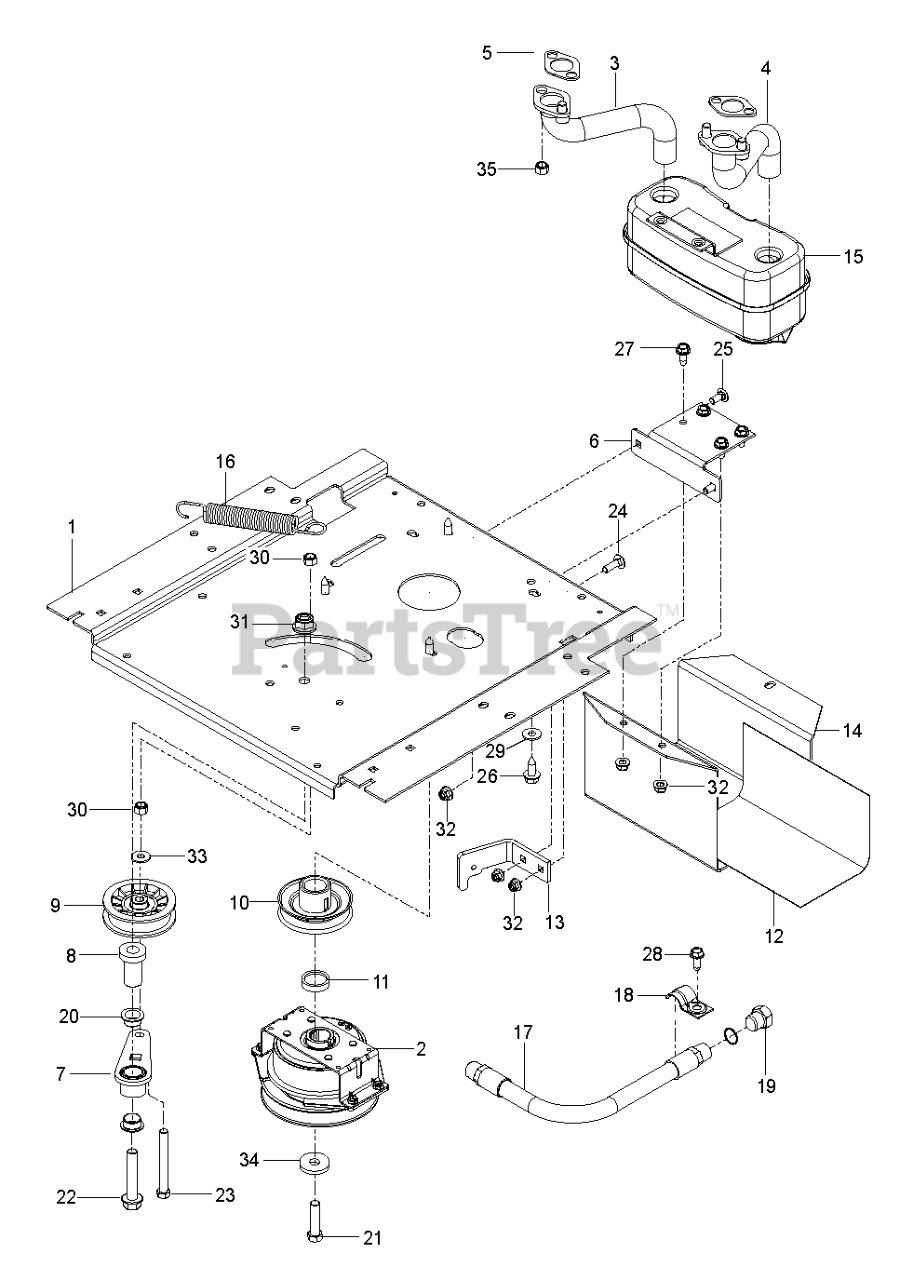

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

15

Husqvarna 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 18

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

3

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

25

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$29.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$7.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593898602

PLATE ENGINE; RZ, 23IN BLACK

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 582539502

Bolts

$3.99

$

In Stock, Qty 8

0

000000000

Note: Engine, Kawasaki FX691V 23 HP. For engine replacement parts, see a Kawasaki dealer.

$

$

Not available

30

Husqvarna 596240901

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 587537401

PULLEY.ENGINE

$26.99

$

In Stock, Qty 7

0

20

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 596637301

Screws

$2.49

$

Usually ships in 3-10 days

0

6

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

24

Husqvarna 595901501

Bolts

$3.99

$

In Stock, Qty 17

0

18

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

32

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 581332806

Bolts

$8.99

$

In Stock, Qty 5

0

9

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

5

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 582538902

SPINDLE.IDLER

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

26

Husqvarna 596564402

Bolts

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

33

Husqvarna 596134901

GSPH

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 596238701

Washers

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.49

$

In Stock, Qty 9

0

27

Husqvarna 596135901

Bolts

$2.49

$

Usually ships in 3-10 days

0

31

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 596433901

Screws

$3.99

$

In Stock, Qty 17

0
