Z 248 F (970467501-00) - Husqvarna 48" Zero-Turn Mower (2020-03) FRAME Parts Diagram

48" Zero-Turn Mower

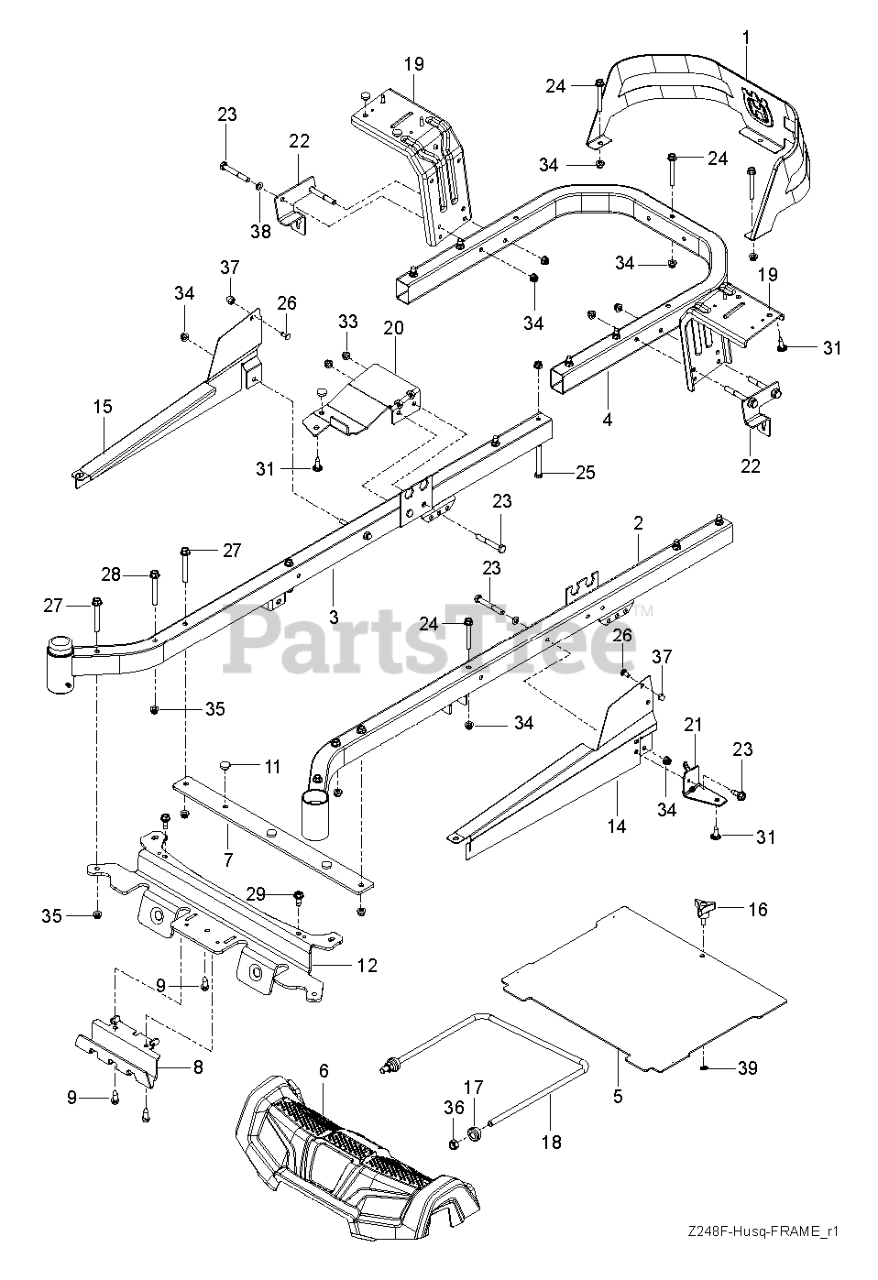

FRAME Parts Diagram

  • Title

9

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 584991002

TUBE.PNT.FRAME.RER.HUSQ.23".RZ

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585523204

SKID.PLATE.PNT.RZ.REF.SIVER

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 585938101

NUT ACORN,FLANGED,5/16-18

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585523004

FOOTREST.PLATE.SUPPORT.X431

$

$

Not available

34

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$4.99

$

In Stock, Qty 10

0

16

Husqvarna 597783101

GSPW Knobs

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 589283302

FRAME.TUBE.RZ.MAIN.WELD.LH.ORG

$68.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585039802

GUARD.ENGINE.HUSQ.RZ.X498

$25.99

$

In Stock, only 3 left!

0

35

Husqvarna 521996502

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 585940001

BOLT.CARRIAGE.5/16-18.7/16

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

15

Husqvarna 585331502

COVER.RAIL.LH.RZ.X668

$20.99

$

Usually ships in 3-10 days

0

24

Husqvarna 596218601

Bolts

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 595901901

Nuts

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 577117702

Hardware

$2.49

$

Usually ships in 3-10 days

0

20

Husqvarna 585523404

SUPPORT.PNT.RH.CONSOLE.FRONT

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 585523604

SUPPORT.PNT.LH.CONSOLE.FRONT

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 586881101

BOLT.5/16-18.THRD.ROLL.SHOULDR

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 585474302

BRKT ROD.BYPASS.EZT.X431

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 586703801

COVER.FOOTREST.REFRESH.ASM

$120.99

$

In Stock, only 1 left!

0

28

Husqvarna 586654302

Bolts

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 596434801

Bolts

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 585331602

COVER.RAIL.RH.RZ.X668

$20.99

$

Usually ships in 3-10 days

0

18

Husqvarna 521938102

Links

$12.99

$

In Stock, Qty 10

0

19

Husqvarna 580501302

FENDER.SUPPORT.PNT.X431

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ

Note: W/ SFTY DECALS

$157.99

$

In Stock, only 1 left!

0

25

Husqvarna 596564405

Bolts

$3.99

$

In Stock, Qty 10

0

17

Husqvarna 593842101

Bushings

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 589283402

FRAME.TUBE.RZ.MAIN.WELD.RH.ORG

$68.99

$

In Stock, only 1 left!

0

39

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585523104

CROSS.PNT.MEMBER.BLK

$68.99

$

Usually ships in 3-10 days

0
