Z 254 (967324101-00) - Husqvarna 54" Zero-Turn Mower (2016-10) WHEELS & TIRES Parts Diagram

54" Zero-Turn Mower

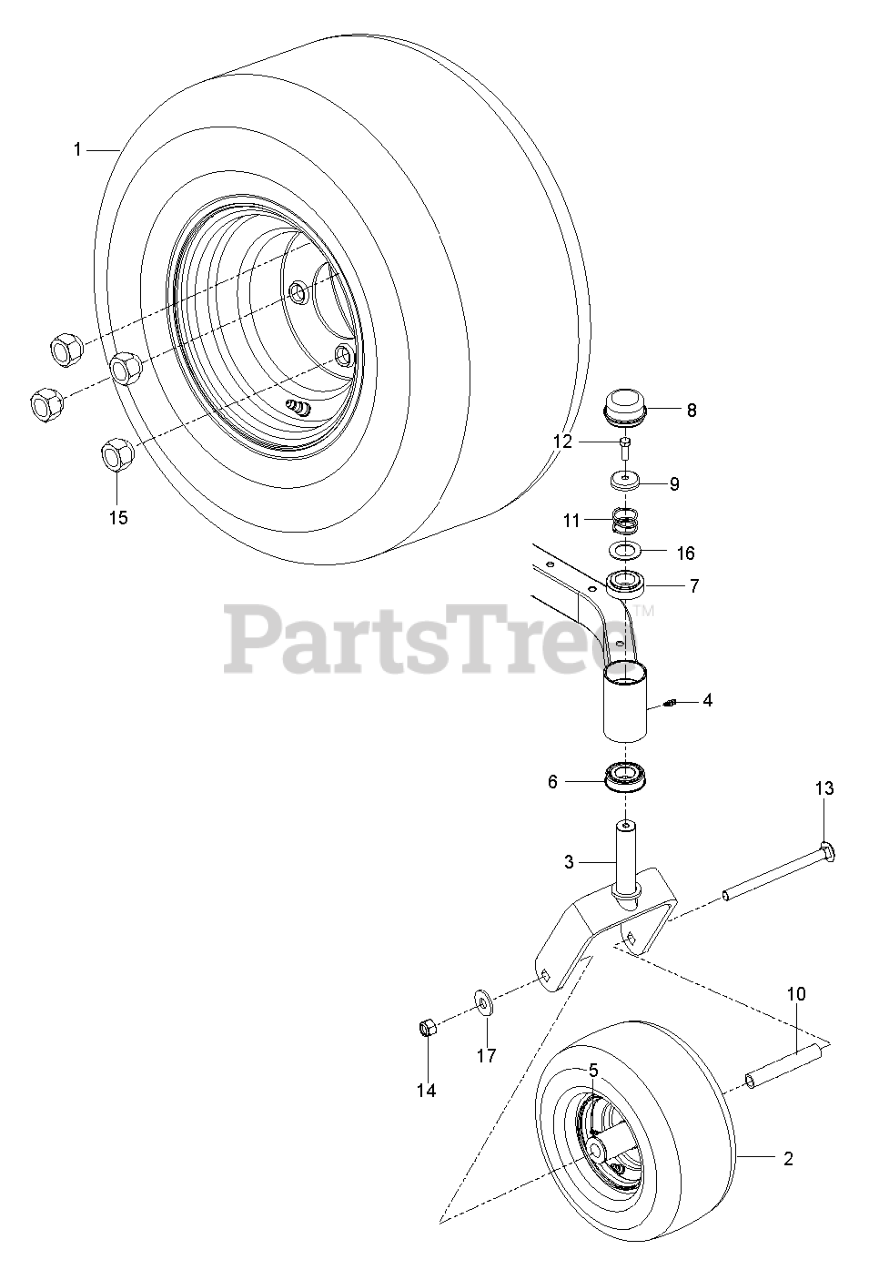

WHEELS & TIRES Parts Diagram

  • Title

4

Husqvarna 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

16

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

2

Husqvarna 576588602

WHEEL ASSY, WIDE, RZ

$121.99

$

Usually ships in 3-10 days

0

17

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

7

Husqvarna 539117901

BUSHING, CASTER

$8.99

$

In Stock, Qty 20+

0

14

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD

Note: Nut 1/2-13 Hex Center Lock (595316501)

$

$

Not available

1

Husqvarna 590486601

WHEEL CARLSTAR 18X9.5-8" SILVE

$182.99

$

In Stock, only 2 left!

0

13

Husqvarna 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601502)

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

9

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

15

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

10

Husqvarna 576588901

SPACER, PIVOT

$10.99

$

In Stock, Qty 20+

0

12

Husqvarna 874950516

5/16-18X1 HHB G5W/NY

$

$

Not available

3

Husqvarna 586650302

YOKE.PNT.CASTER.ORG
(Superseded to 586650309)

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539112660

BEARING FLANGED

$35.99

$

In Stock, Qty 19

0
