Z 254 F (967844901-02) - Husqvarna 54" Zero-Turn Mower (2020-08) SEAT 5 Parts Diagram

54" Zero-Turn Mower

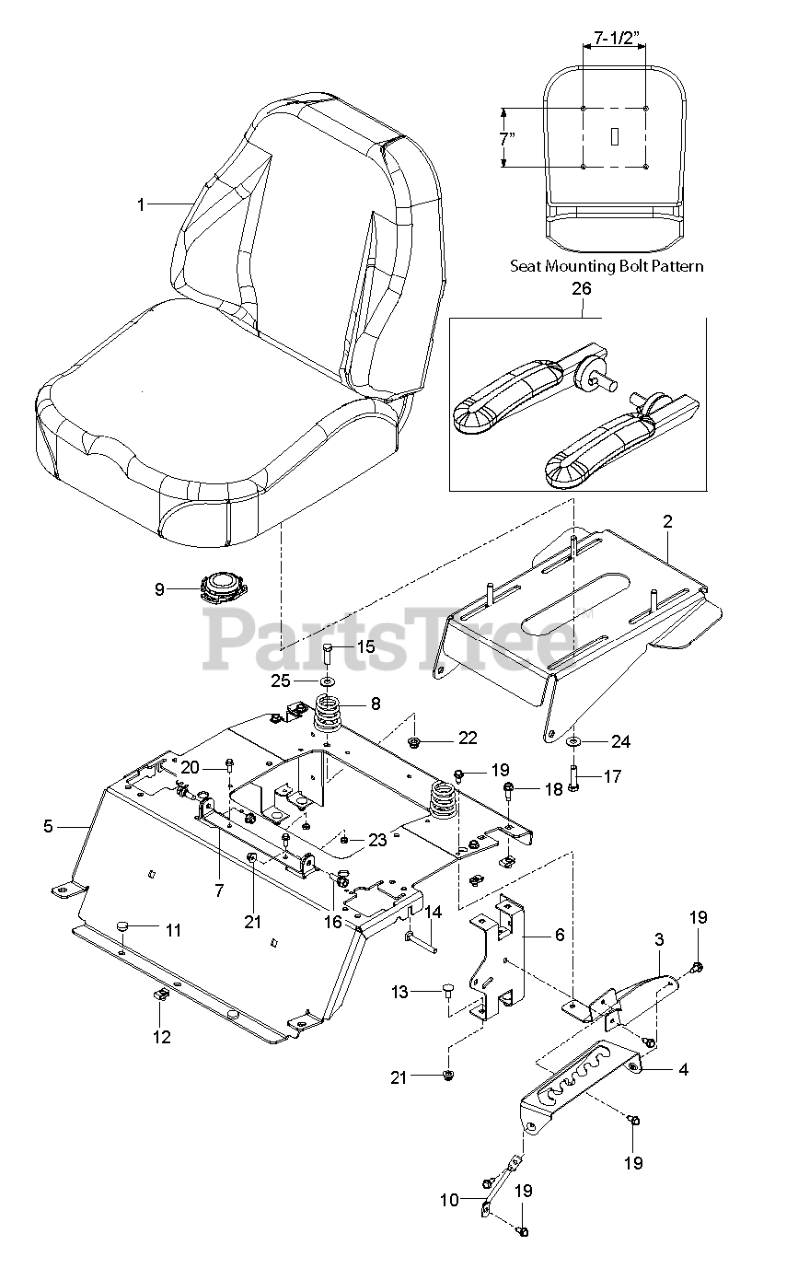

SEAT 5 Parts Diagram

  • Title

8

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

26

Husqvarna 590873402

SEAT KING 18" WOOD BTM, ARM

Note: ARM REST KIT - NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$6.99

$

In Stock, Qty 6

0

24

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 590856002

PAN SEAT, 4-BOLT BLACK X428

$78.99

$

In Stock, only 1 left!

0

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 12

0

7

Husqvarna 590899902

BRACKET.SEAT.REINF.X672

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$21.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589028501

SCREW.FLG.LOCKING.1/4-20X.75

$

$

Not available

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

5

Husqvarna 589761211

PLATE SEAT SUPPORT; RZ ORANGE

$121.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590873404

SEAT. WOOD.BOTTOM.4-BOLT.HUSQ
(Superseded to 590873408)

$399.99

$

Usually ships in 3-10 days

0

23

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

25

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0
