Z 4619 (968999656) - Husqvarna 46" Zero-Turn Mower (2007-04) 46" Cutting Deck Parts Diagram

46" Zero-Turn Mower

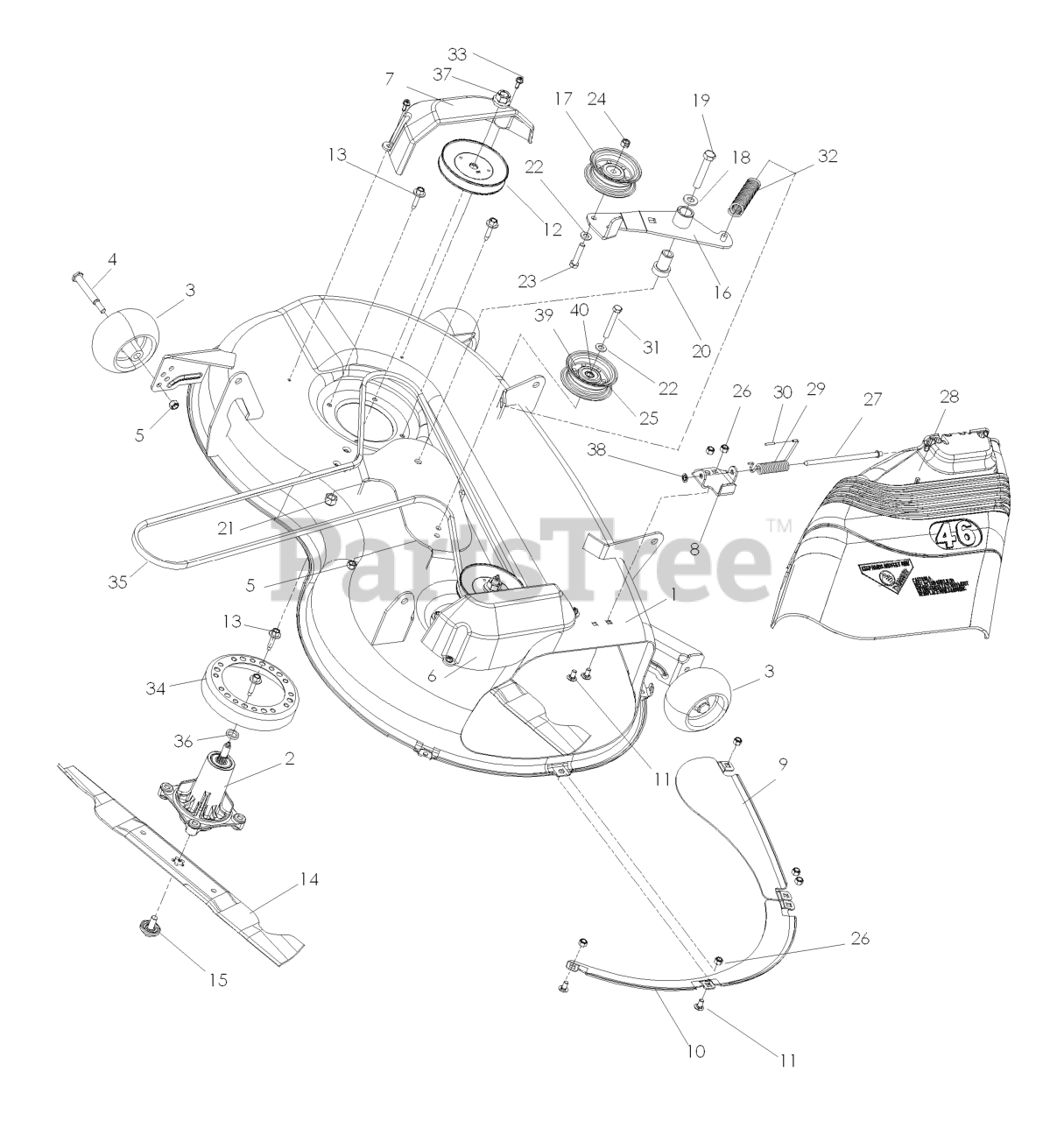

46" Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539131485

DECK W/DECALS 46 ORANGE

$

$

Not available

2

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$44.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

4

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, Qty 10

0

7

Husqvarna 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, Qty 6

0

8

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

13

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

16

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

17

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

18

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

21

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

25

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

26

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 8

0

29

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 12

0

33

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539117811

BELT

$68.99

$

In Stock, only 2 left!

0

36

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

40

Husqvarna 539110081

BEARING INSERT

$

$

Not available
