Z 4818 (968999250) - Husqvarna 48" Zero-Turn Mower (2005-08) ENGINE Parts Diagram

48" Zero-Turn Mower

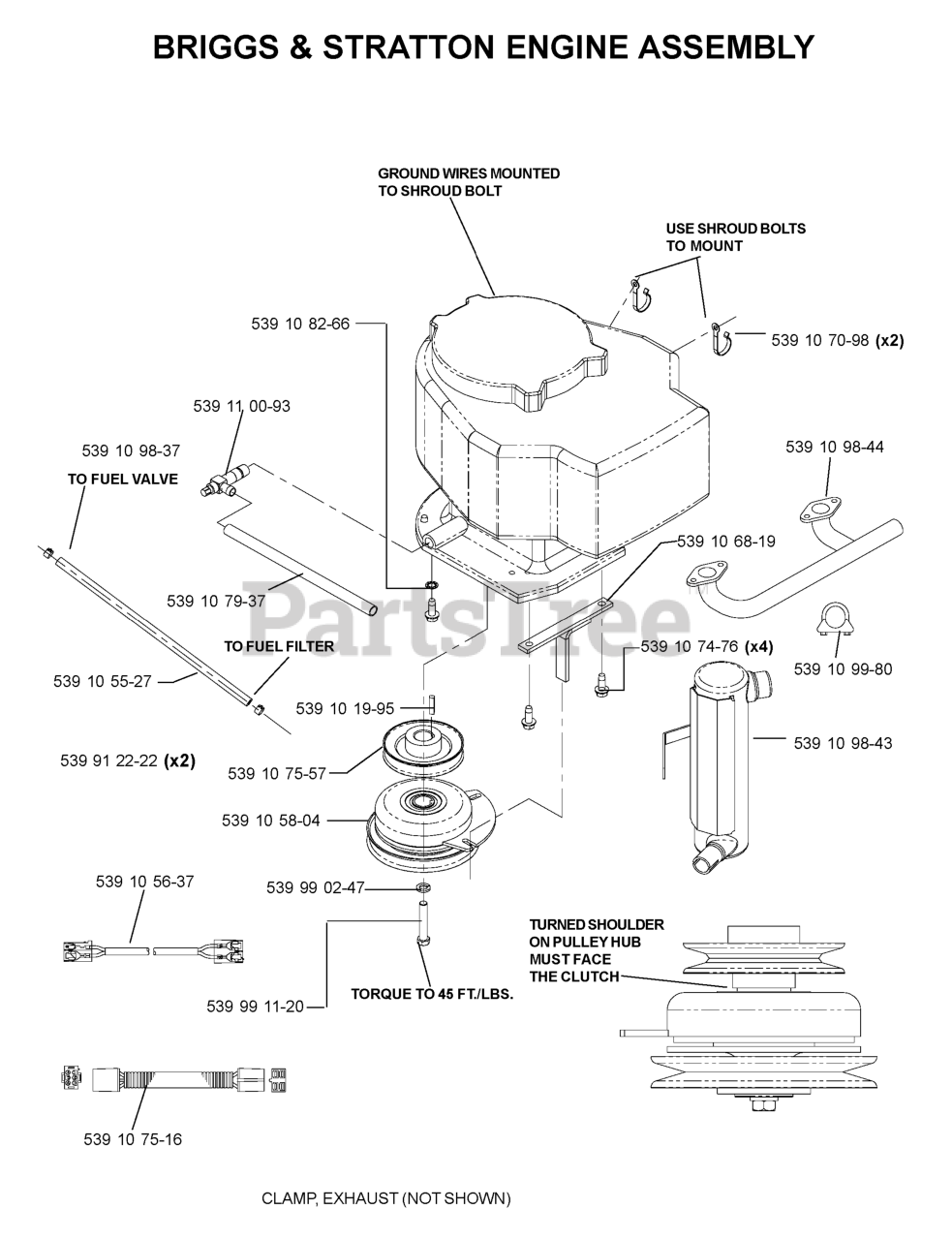

ENGINE Parts Diagram

  • Title

539 10 79-37

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

539 10 74-76

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 3 left!

0

539 10 58-04

Husqvarna 539105804

CLUTCH

$

$

Not available

539 10 19-95

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 2 left!

0

539 10 98-37

Husqvarna 539109837

DRAIN VALVE
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

539 10 82-66

Husqvarna 539108266

WASHER
(Superseded to 539990390)

$3.99

$

Usually ships in 3-10 days

0

539 11 00-93

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

539 10 98-44

Husqvarna 539109844

B&S MANIFOLD

$303.99

$

Usually ships in 3-10 days

0

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 10 98-43

Husqvarna 539109843

B&S MUFFLER, VERTICAL

$279.99

$

Usually ships in 3-10 days

0

539 10 75-16

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

Note: CLAMP EXHAUST (NOT SHOWN)

$

$

Not available

539 10 70-98

Husqvarna 539107098

CLAMP

Note: USE SHROUD BOLTS TO MOUNT

$14.99

$

Usually ships in 3-10 days

0

539 91 22-22

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

539 10 55-27

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

Note: TO FUEL VALVE TO FUEL FILTER

$7.49

$

In Stock, only 3 left!

0

539 99 11-20

Husqvarna 539991120

BOLT 7/16F X 2 1/2

Note: TORQUE TO 45 FT./LBS.

$6.49

$

In Stock, Qty 11

0

539 10 56-37

Husqvarna 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 6

0

539 10 75-57

Husqvarna 539107557

PULLEY

$

$

Not available

539 10 99-80

Husqvarna 539109980

MUFFLER CLAMP

$7.49

$

Usually ships in 3-10 days

0

539 10 68-19

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available
