Z 4818 (968999250) - Husqvarna 48" Zero-Turn Mower (2005-08) MOWER LIFT / DECK LIFT Parts Diagram

48" Zero-Turn Mower

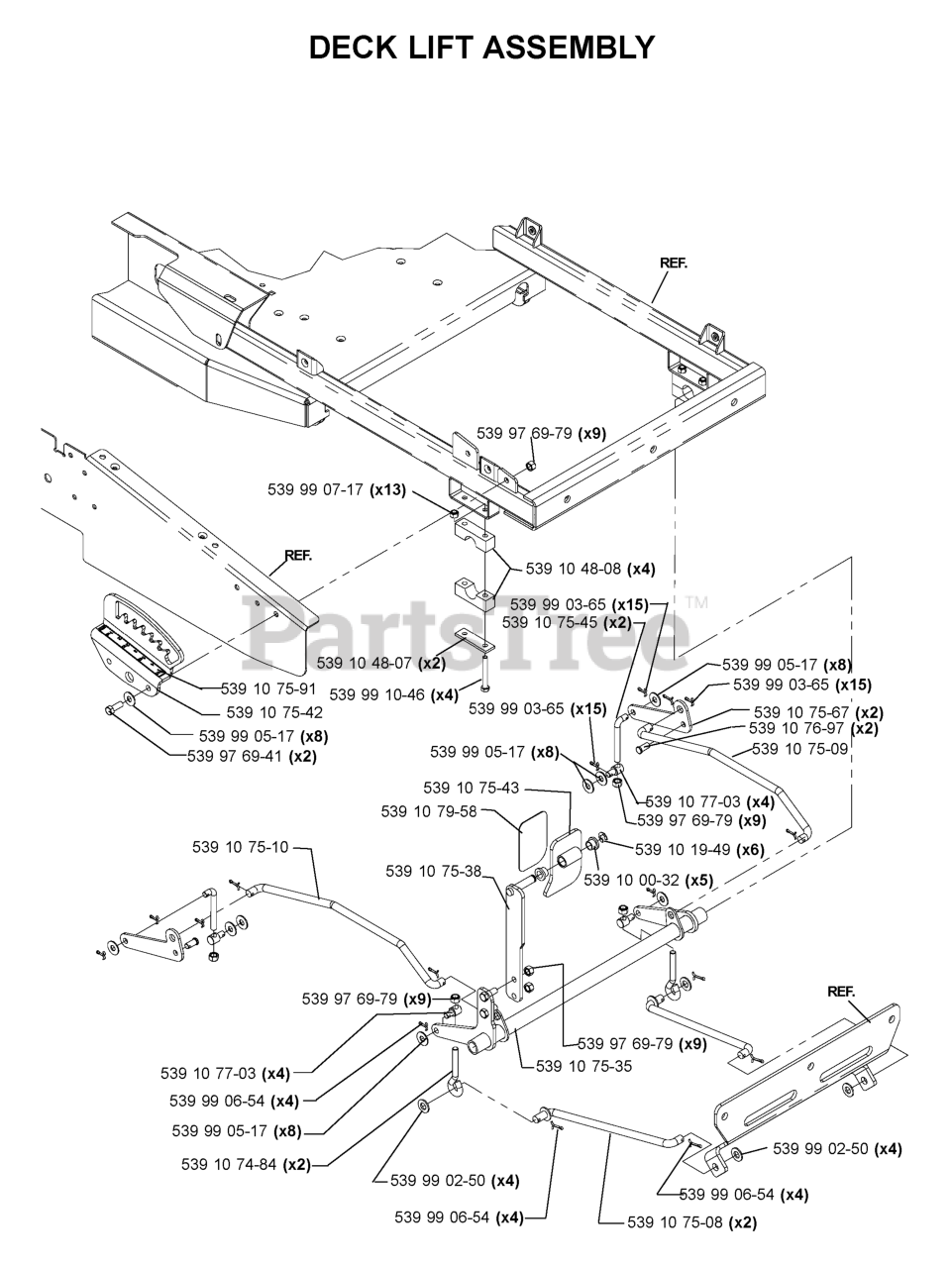

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

539 99 06-54

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

539 10 74-84

Husqvarna 539107484

EYE BOLT

$6.49

$

Usually ships in 3-10 days

0

539 10 00-32

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 10-46

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

539 10 75-08

Husqvarna 539107508

STRUT LINKAGE

$

$

Not available

539 10 75-35

Husqvarna 539107535

CROSS SHAFT WELDMENT

$75.99

$

Usually ships in 3-10 days

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 75-38

Husqvarna 539107538

LIFT ARM WELDMENT

$34.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 75-42

Husqvarna 539107542

HEIGHT PLATE

$78.99

$

Usually ships in 3-10 days

0

539 97 69-41

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

539 10 75-09

Husqvarna 539107509

LIFT LINKAGE-LH

$35.99

$

Usually ships in 3-10 days

0

539 10 75-10

Husqvarna 539107510

LIFT LINKAGE-RH

$46.99

$

Usually ships in 3-10 days

0

539 99 02-50

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

539 10 77-03

Husqvarna 539107703

SWIVEL

$

$

Not available

539 10 75-67

Husqvarna 539107567

REAR BELLCRANK

$12.99

$

In Stock, only 2 left!

0

539 10 76-97

Husqvarna 539107697

CLEVIS PIN

$

$

Not available

539 10 19-49

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

539 10 48-07

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$4.99

$

In Stock, only 3 left!

0

539 10 79-58

Husqvarna 539107958

FOOT PAD

$3.99

$

Usually ships in 3-10 days

0

539 10 75-91

Husqvarna 539107591

DECAL, CUTTING HEIGHT

$1.99

$

Usually ships in 3-10 days

0

539 10 75-45

Husqvarna 539107545

LIFT LINKAGE

$12.99

$

In Stock, only 1 left!

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

Note: REF.

$3.99

$

In Stock, Qty 20+

0

539 99 02-50

Husqvarna 539990250

WASHER 1/2" FLAT

Note: REF.

$1.49

$

Usually ships in 3-10 days

0

539 10 48-08

Husqvarna 539104808

PILLOW BLOCK

$8.99

$

Usually ships in 3-10 days

0

539 10 75-43

Husqvarna 539107543

FOOT PEDAL WELDMENT

$37.99

$

Usually ships in 3-10 days

0
