Z 4824 (968999512) - Husqvarna 48" Zero-Turn Mower (2006-09) FRAME Parts Diagram

48" Zero-Turn Mower

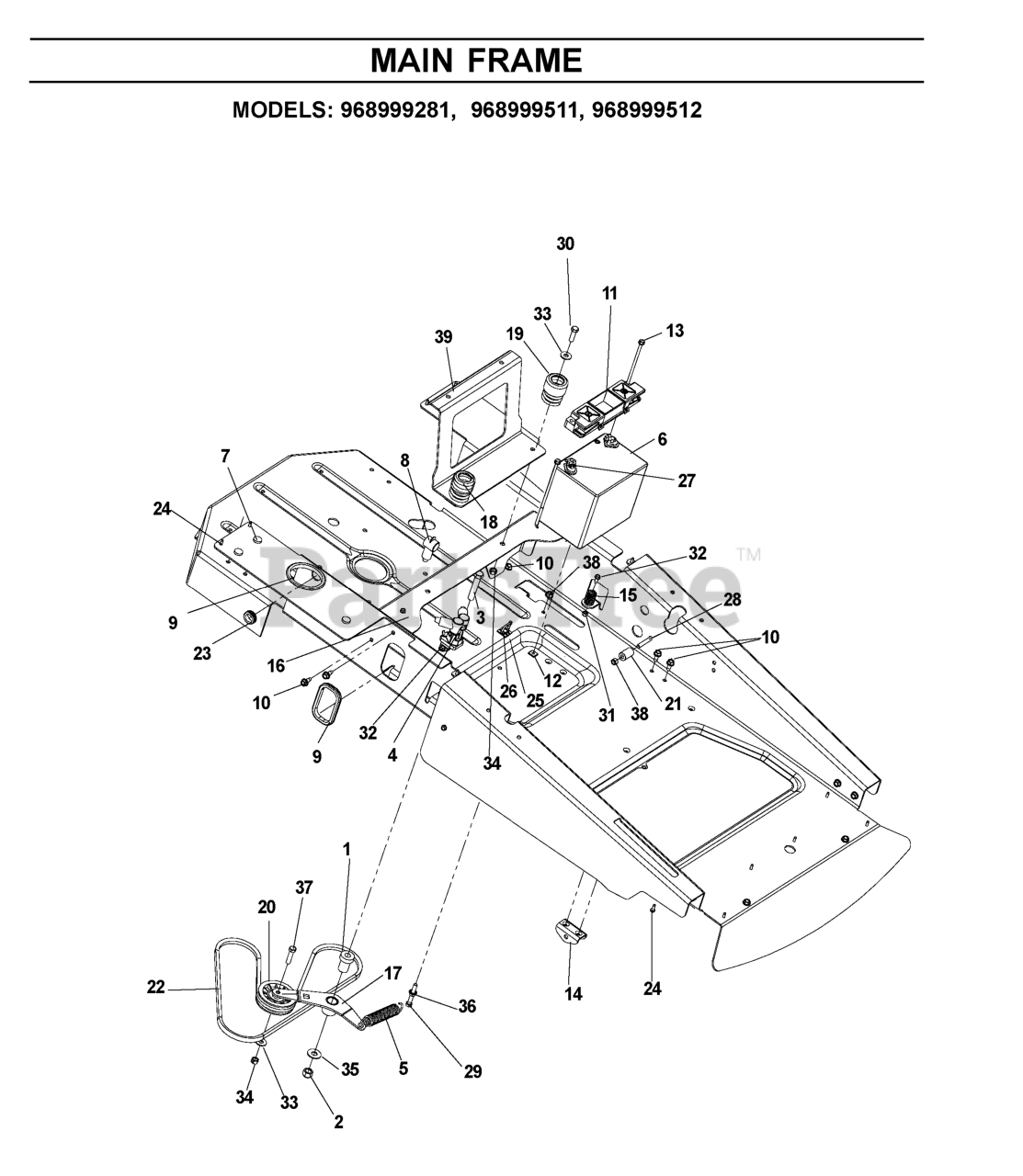

FRAME Parts Diagram

  • Title

18

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

13

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

4

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

5

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 12

0

1

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

9

Husqvarna 539107116

GROMMET

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110030

BRACKET, DECK HANGER

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110301

CAP, SPRING COVER
(Superseded to 532124238)

$

$

Not available

37

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

28

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 539112139

BRACKET, FRT SUPPORT, BLACK

$54.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110411

BELT, HYDRO PUMP

$28.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 4 left!

0

27

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 539110070

SPRING, RETURN TO NEUTRAL

$

$

Not available

35

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539110312

MOTION LIMITER

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

33

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

25

Husqvarna 539110863

MOUNTING BLOCK CABLE TIE

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539110219

PUMP IDLER WELDMENT

$103.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110126

REAR SEAT SUPPORT ORANGE

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

26

Husqvarna 539976856

TIE, PLASTIC

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

6

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

3

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0
