Z 50 (17AAFACQ066) - Troy-Bilt Mustang 50" Zero-Turn Mower (2020) Deck Parts Diagram

Mustang 50" Zero-Turn Mower

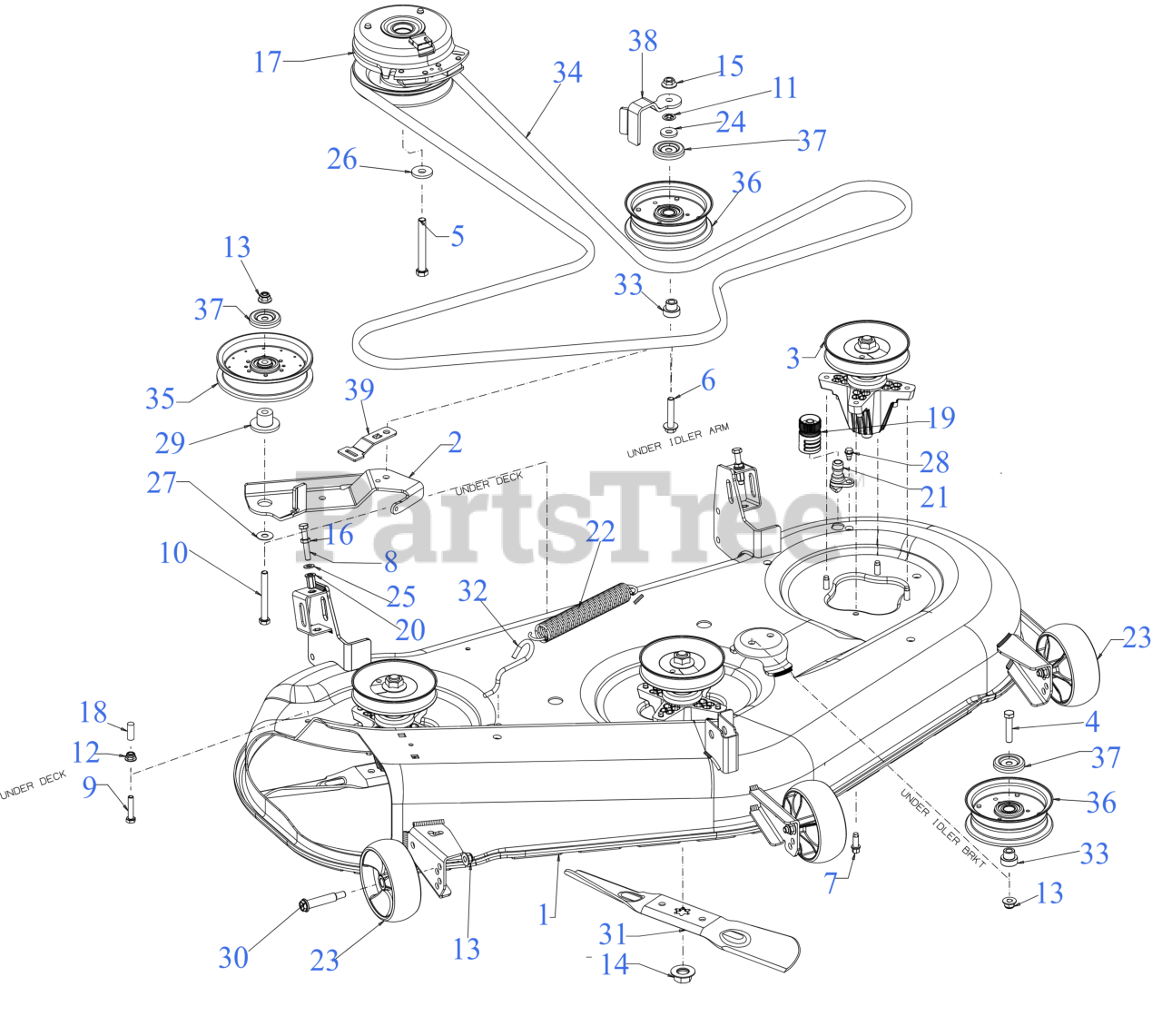

Deck Parts Diagram

  • Title

1

Troy-Bilt 603P05659

50" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$798.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-06899

DECK IDLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$61.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-06980

BLADE SPINDLE ASSEMBLY W/PULLEY

Note: (See Separate Breakdown)

$126.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04379A

SCREW 7/16-20 x 3.5 GR5

$5.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-06178

SCREW 3/8-16 x 2.0

$5.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-06322

SCREW 5/16-18 x .875

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 7

0

9

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$3.99

$

In Stock, Qty 8

0

10

Troy-Bilt 710-3130

SCREW 3/8-16 x 3.25 GR8

$9.49

$

In Stock, Qty 17

0

11

Troy-Bilt 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-3007

HEX NUT

$6.49

$

In Stock, Qty 6

0

17

Troy-Bilt 917-05209

ELECTRIC PTO CLUTCH

$507.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 720-05075

VINYL CAP

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 921-04041

WATER NOZZLE ADAPTER

$21.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 728-05043

NUT RIVET 5/16-18

$4.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04927

EXTENSION SPRING

$21.99

$

In Stock, Qty 6

0

23

Troy-Bilt 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$14.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-0264

FLAT WASHER

$6.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-0322

FLAT WASHER .445 x 1.248 x .170

$8.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0344

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-05081

SHOULDER SPACER

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 942-05052A

17.27" BLADE (2N1)

$28.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 490-110-C155

Cub Cadet 50" HI LIFT BLADE SET

Note: Retail Packaged Part

$82.99

$

In Stock, Qty 6

0

31

Troy-Bilt 490-110-M155

Genuine Factory Parts 50" BLADE SET

Note: Retail Packaged Part

$86.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 942-05052-L

50" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-05052-L0606)

$30.99

$

In Stock, Qty 19

0

31

Troy-Bilt 490-110-C182

Cub Cadet 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 490-110-M182

Genuine Factory Parts 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 942-05052-X

50" 6 PT STAR XTREME MULCH BLADE

$30.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 490-110-C178

Cub Cadet 50" XTREME BLADE SET

Note: Retail Packaged Part

$98.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 490-110-M178

Genuine Factory Parts 50" XTREME MULCH BLADE SET

Note: Retail Packaged Part

$98.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 747-05608A

DECK SPRING HOOK

$3.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 954-05078

V-BELT B SEC x 143.5 LG

$111.99

$

In Stock, Qty 14

0

34

Troy-Bilt 490-501-C070

Cub Cadet 50" DECK DRIVE BELT

Note: Retail Packaged Part

$111.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 490-501-Y070

Troy-Bilt 50" DECK DRIVE BELT

Note: Retail Packaged Part

$

$

Currently unavailable

35

Troy-Bilt 756-04511B

FLAT IDLER PULLEY

$49.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-05034A

IDLER PULLEY 4.50" DIA

$42.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-08619

BELT KEEPER
(Superseded to 783Z08619A)

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0
