Z-Force 48 (53AA5A7M710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Lift Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

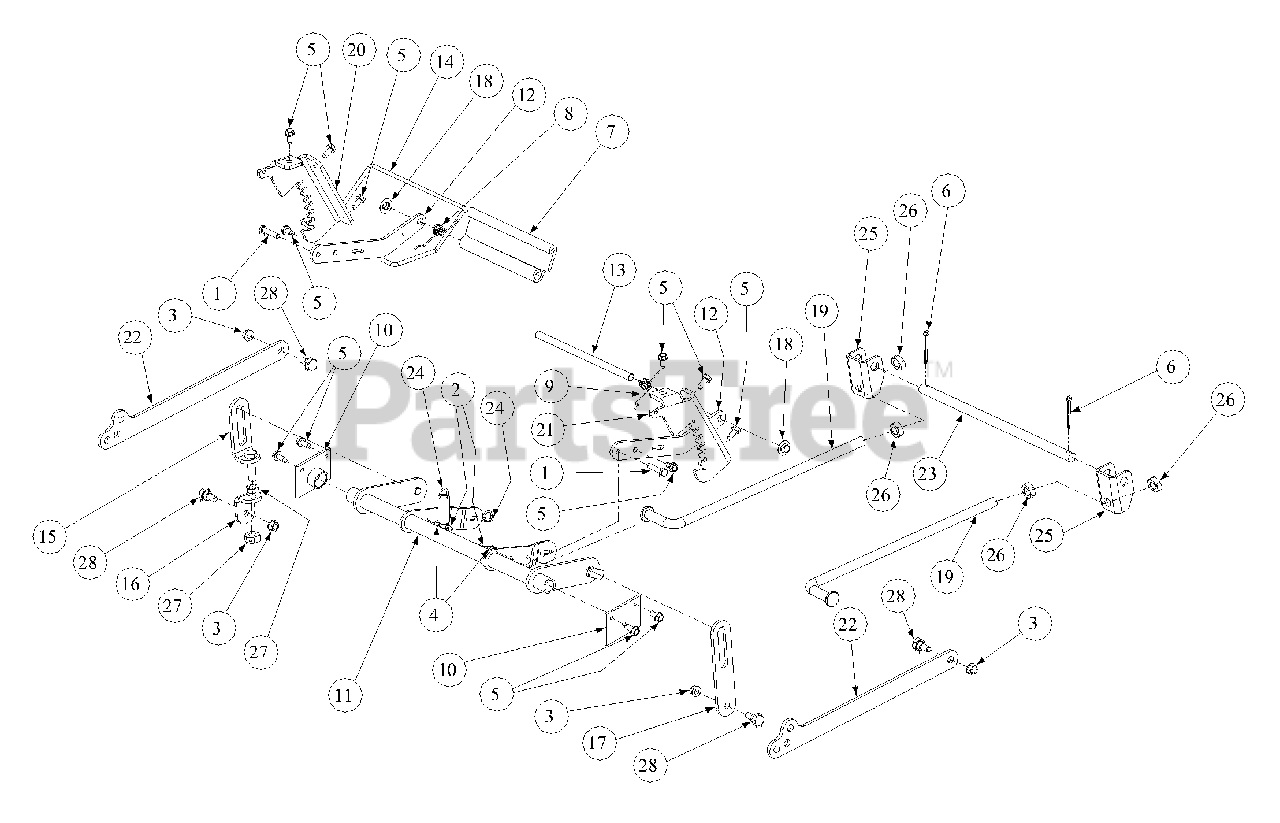

Lift Assembly Parts Diagram

  • Title
1

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

2

Cub Cadet 00022547

Nut, 5/16-18, Center Lock

$

$

Not available

3

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

5

Cub Cadet 01008620

Self Tapping Screw, 5/16-18 x 3/4
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01008139

Deck Lift Handle

$

$

Not available

8

Cub Cadet 01008140

Deck Lift Spring, Left Hand
(Superseded to 01008140P)

$34.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01008141

Deck Lift Spring, Right Hand
(Superseded to 01008141P)

$

$

Not available

10

Cub Cadet 01008477

Lift Hub Assembly
(Superseded to 01008477P)

$

$

Not available

11

Cub Cadet 01008459

Lift Shaft Assembly

$175.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01008494

Handle Lift Arm

$

$

Not available

13

Cub Cadet 01008175

Lift Handle Rod
(Superseded to 01008175P)

$

$

Not available

14

Cub Cadet 01008176

Lift Rod Index
(Superseded to 01008176P)

$

$

Not available

15

Cub Cadet 01008467

Upper Link Lift Assembly, Left Hand
(Superseded to 02000833P)

$51.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008183

Lower Lift Bracket, Left Hand
(Superseded to 01008183P)

$

$

Not available

17

Cub Cadet 01008186

Link Lift PLate, Right Hand
(Superseded to 01008186P)

$

$

Not available

18

Cub Cadet 01008187

Cap Lift Push Nut
(Superseded to 726-0221)

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet 01008382

Front Lift Rod

$

$

Not available

20

Cub Cadet 01008188

Lift Index Weldment, Left Hand

$

$

Not available

21

Cub Cadet 01008189

Lift Index Weldment, Right Hand
(Superseded to 01008189-0637)

Variations

Cub Cadet 01008189-0637

PLATE-RH LIFT INDE - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 01008465

Rear Lift Arm

$

$

Not available

23

Cub Cadet 01008557

Front Lift Rod
(Superseded to 01002586)

$46.99

$

In Stock, only 3 left!

0

24

Cub Cadet 01008573

Lift Spring
(Superseded to 01008573P)

$

$

Not available

25

Cub Cadet 01008638

Front Lift Bracket (44" & 48")

$

$

Not available

Cub Cadet 01009712

Front Lift Bracket (42")

$

$

Not available

26

Cub Cadet 00035632

Jam Nut, 5/8-11
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

28

Cub Cadet 738-3151

Shoulder Screw, 3/8-16, .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 3 left!

0
