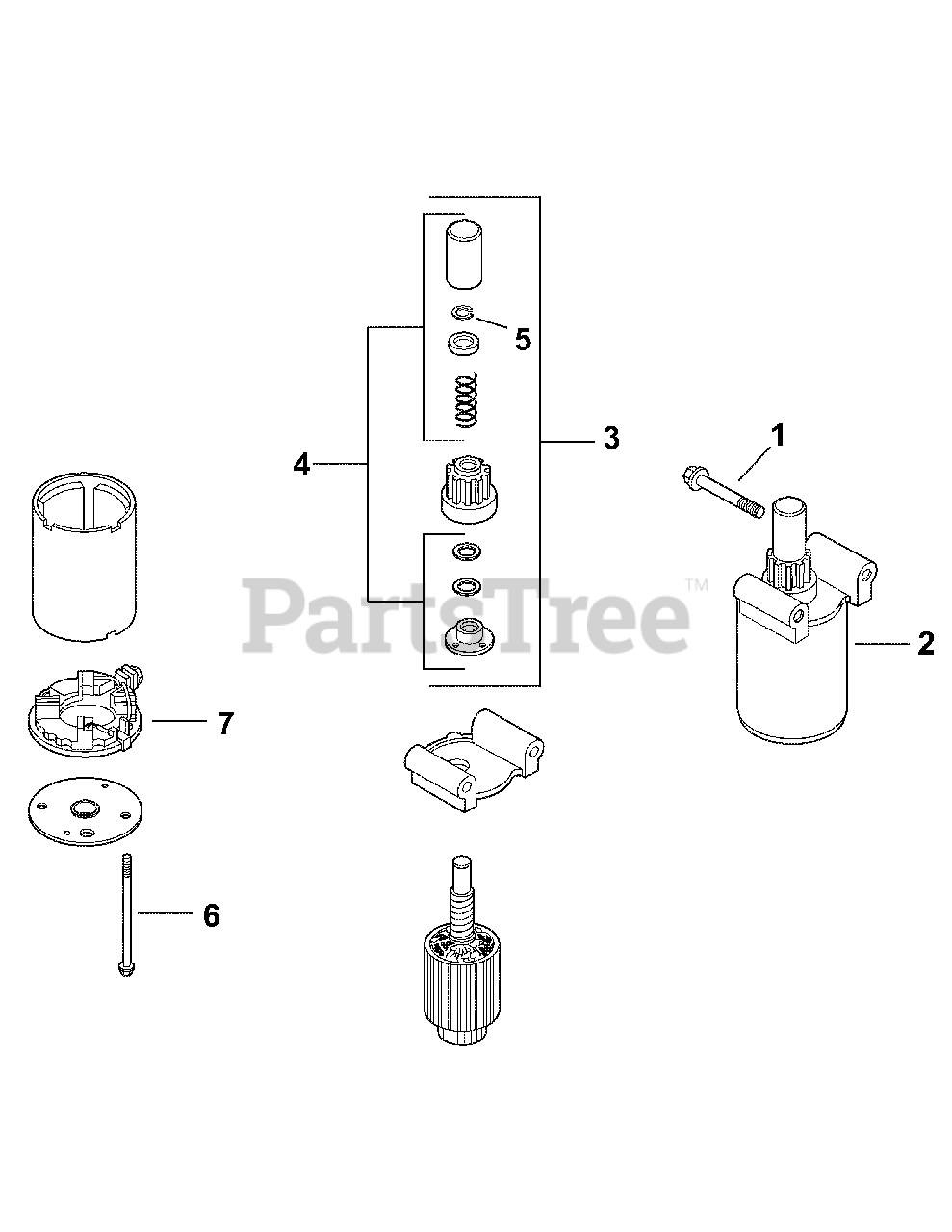

Z-Force 50 (17AF3AGP010) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler SV820 Starting System Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

SV820 Starting System Parts Diagram

  • Title

1

Cub Cadet KH-M-839080

Screw, FLG M8 x 1.25 x 80
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet KH-32-098-01-S

Starter Assembly
(Superseded to KH-32-098-10-S)

$227.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-12-755-39-S

Kit, Drive

$

$

Not available

4

Cub Cadet KH-12-755-38-S

Kit, Drive Parts

Note: (Includes Ref No. 5)

$

$

Not available

5

Cub Cadet KH-32-141-01-S

Ring, Retaining

$2.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-32-211-01-S

Bolt, Thru

$4.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-243-04-S

Commutator, End Cap

$

$

Not available
