Z-Force Pro 48 KH (53BH3AGN050) - Cub Cadet 48" Z-Force Zero-Turn Mower, 22hp Kohler Engine Accessories Parts Diagram

48" Z-Force Zero-Turn Mower, 22hp Kohler

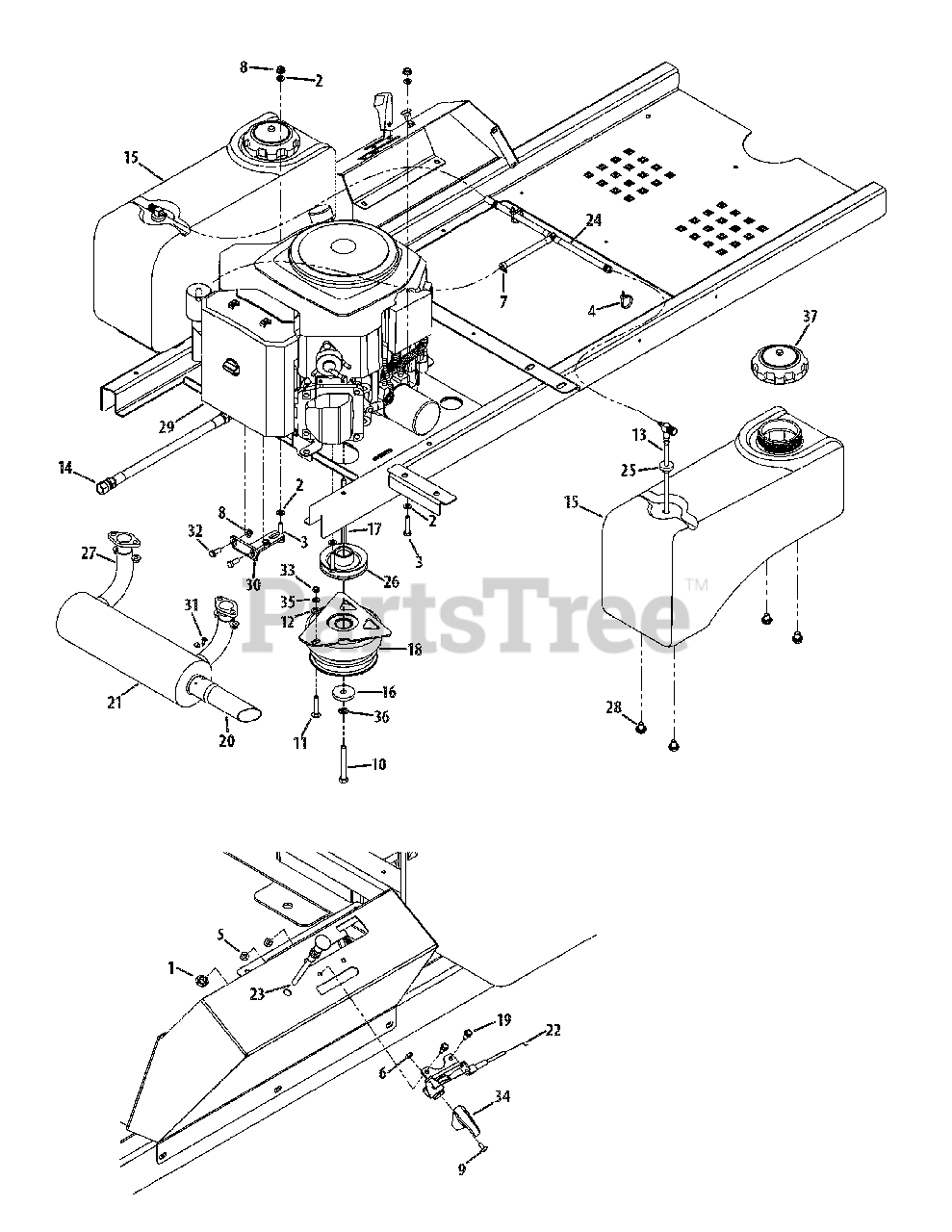

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 00011453

Jam Nut, 3.8-24

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012169

Washer, .344 x .688 x .063

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00012382

Hes Screw, 5.16-18 x 1.50

$

$

Not available

4

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

5

Cub Cadet 00014608

Nylock Nut, #10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00060056

Nut, #8-32

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 01000215

Hose Clamp

$

$

Not available

8

Cub Cadet 712-3004A

Flange Counterlock Nut, 5.16-18

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3217

Machine Screw, #8-32 x .356

$6.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-0510

Hex Screw, 7.16-20 x 3.00

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0458

Carriage Bolt, 5.16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01002710

Washer, .406 x .750 x .063

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01003116

Pick-Up Fuel Fitting

$54.99

$

In Stock, Qty 7

0

14

Cub Cadet 01003283

Oil Drain Hose

$78.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004350

Fuel Tank

$

$

Not available

16

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$14.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01007533

Key, .250 x .250 x 2.75

$11.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01008434P

Brake Clutch
(Superseded to 759-05064)

$478.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01008531P

Flange Screw, #10-32 x .500

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

21

Cub Cadet 02000456

Muffler
(Superseded to 02000456P)

$

$

Not available

22

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$47.99

$

In Stock, Qty 7

0

23

Cub Cadet 02000478

Choke Cable
(Superseded to 02000478P)

$38.99

$

In Stock, only 3 left!

0

24

Cub Cadet 02002164

Fuel Hose Assembly

$66.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02003417

Drive Pulley

$57.99

$

In Stock, Qty 11

0

27

Cub Cadet 02003984

Flange Nut, M8-1.25
(Superseded to 712-04312)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 02005013

Hex Screw, 3.8-16 x .500
(Superseded to 710-05412)

$3.49

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-CV670-3014

Kohler CV670-0013 Replacement Engine

$

$

Not available

29

Cub Cadet KH-CV680-3034

Kohler CV23-75592 Replacement Engine

$

$

Not available

30

Cub Cadet 703-07213

Clutch Return Bracket

Variations

Cub Cadet 703-07213-0637

RETAINER ASM - CLU - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 910-0224

Hex Washer Screw, #10-16 x 0.500

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-3008

Hex Screw, 5.16-18 x .75

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-3007

Jam Nut, 5.16-18

$6.49

$

In Stock, Qty 6

0

34

Cub Cadet 731-04914

Throttle Control Knob

$12.99

$

In Stock, only 3 left!

0

35

Cub Cadet 936-0119

Lock Washer, 5.16

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0171

Lock Wash, 7.16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 951-3124E

Fuel Cap

$33.99

$

In Stock, Qty 20+

0
