Z-Force S60 KH (53AH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler Kohler CV730-3134 Ignition & Electrical Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

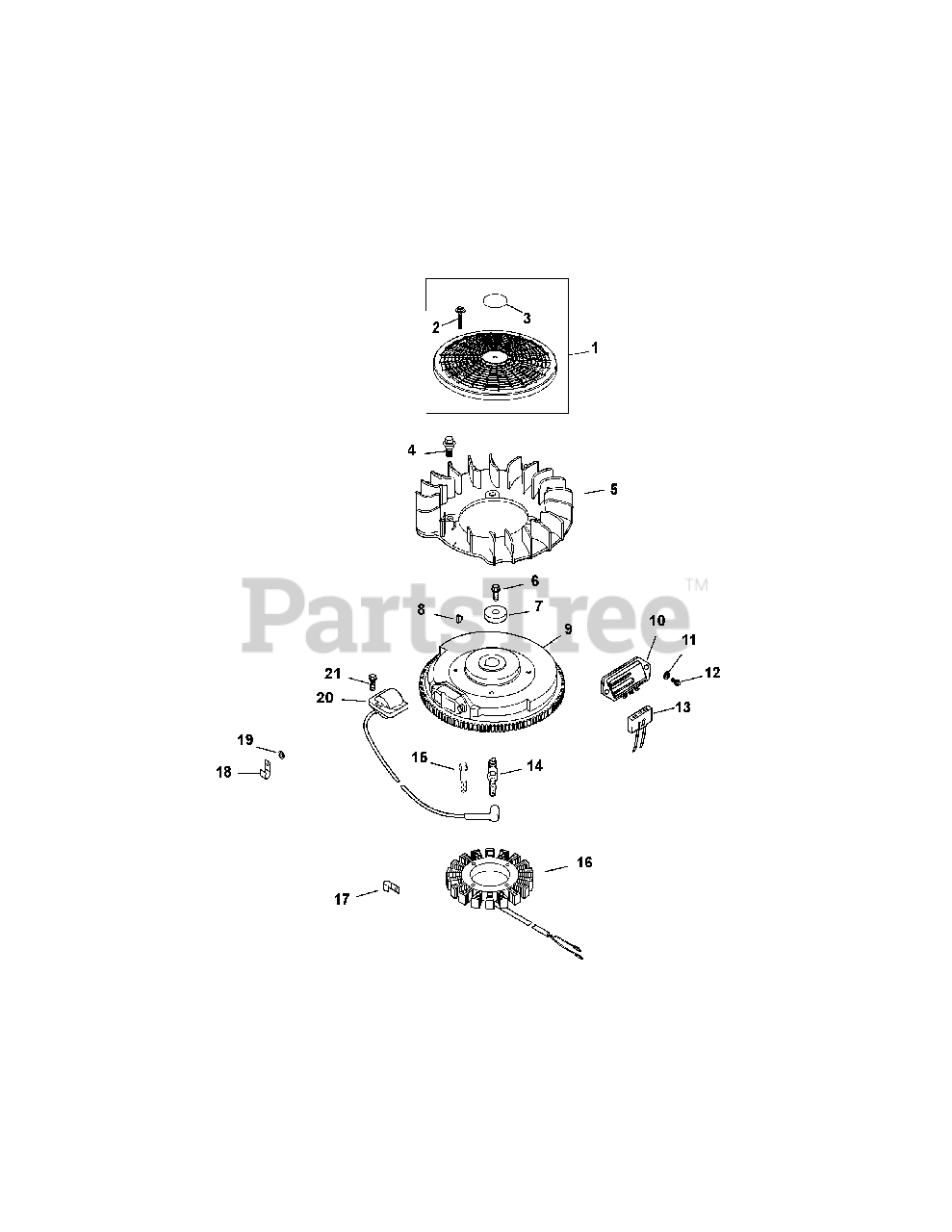

Kohler CV730-3134 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-15

KIT, GRASS SCREEN (includes 2,3)

$

$

Not available

2

Cub Cadet KH-25-086-117-S

SCREW, FLG SEMS M4X.7X25

$2.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-113-18-S

DECAL, GRASS SCREEN

$

$

Not available

4

Cub Cadet KH-25-086-47

BOLT, SHOULDER

$

$

Not available

5

Cub Cadet KH-24-157-12-S

FAN

$22.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-468-03

WASHER, FLAT 13/32''

$

$

Not available

8

Cub Cadet KH-X-42-15

KEY, 3/16'' X 5/8''

$

$

Not available

9

Cub Cadet KH-24-025-48-S

FLYWHEEL
(Superseded to KH-24-025-59-S)

$

$

Not available

10

Cub Cadet KH-41-403-10-S

REGULATOR/RECTIFIER
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 8

0

11

Cub Cadet KH-X-25-92

WASHER, FLAT 3/16''

$

$

Not available

12

Cub Cadet KH-24-086-18

SCREW, PHL HD #11-16X7/8''

$

$

Not available

13

Cub Cadet KH-25-155-41-S

CONNECTOR

$7.99

$

In Stock, Qty 9

0

14

Cub Cadet 759-3336

PLUG, SPARK (STD)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-M-548025-S

SCREW, THD FRM M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-237878

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-12-154-01

CLIP, TUBE & WIRING (KM)

$

$

Not available

18

Cub Cadet KH-235173

CLIP, CABLE

$

$

Not available

19

Cub Cadet KH-X-25-63

WASHER, FLAT 1/4'' (O.D. 1/2'')

$

$

Not available

20

Cub Cadet KH-24-584-45-S

IGNITION, MODULE
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-126-137-S

BRACKET, GROUND STRAP
(Superseded to KH-24-518-12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-468-07-S

WASHER, FLAT 7/32''

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-82-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$74.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
