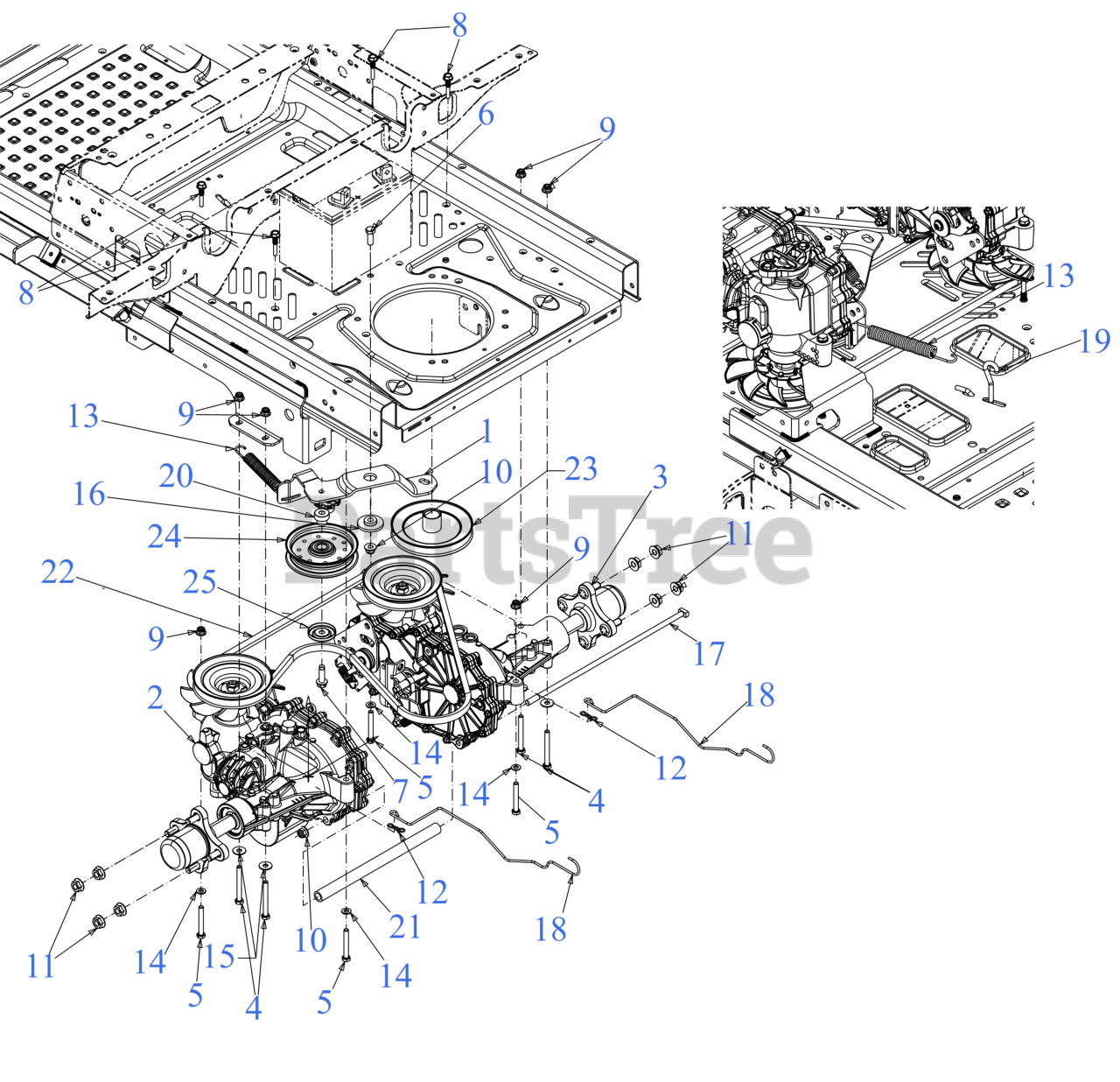

Z-Force SX48 KW FAB (47RIDGJB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki (2022) Drive Parts Diagram

48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki

Drive Parts Diagram

  • Title

1

Cub Cadet 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618P09970

TRANSMISSION (LH)

Note: (See Separate Breakdown)

$1745.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618P09971

TRANSMISSION (RH)

Note: (See Separate Breakdown)

$1875.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-06112

BELT KEEPER ROD .25 x 1.585

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-05160

HEX FLANGE NUT 7/16-14

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 732-05390

EXTENTION SRING .75 DIA. x 6.85

$22.99

$

In Stock, Qty 7

0

14

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, Qty 7

0

16

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet 738-04251A

SUPPORT TUBE ROD

$14.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-05657B

HYDRO BYPASS ROD

$14.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-06074

IDLER SPRING HOOK

$23.99

$

In Stock, only 1 left!

0

20

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 750-06147A

TRANSMISSION SPACER .75OD x 11.31

$23.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, Qty 20+

0

22

Cub Cadet 490-501-C069

Cub Cadet TRANS DRIVE BELT A x 67 RZT

Note: Retail Packaged Part

$50.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 490-501-Y069

Troy-Bilt TRANSMISSION DRIVE BELT

Note: Retail Packaged Part

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-05001B

TRANMISSION DRIVE PULLEY

$50.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

25

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

OIL 20W50

$

$

Not available
