Z-Force SZ48 (17AIDGHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kawasaki (2015) Kawasaki FR730V-AS21 Starter Parts Diagram

48" Z-Force S Zero-Turn Mower, Kawasaki

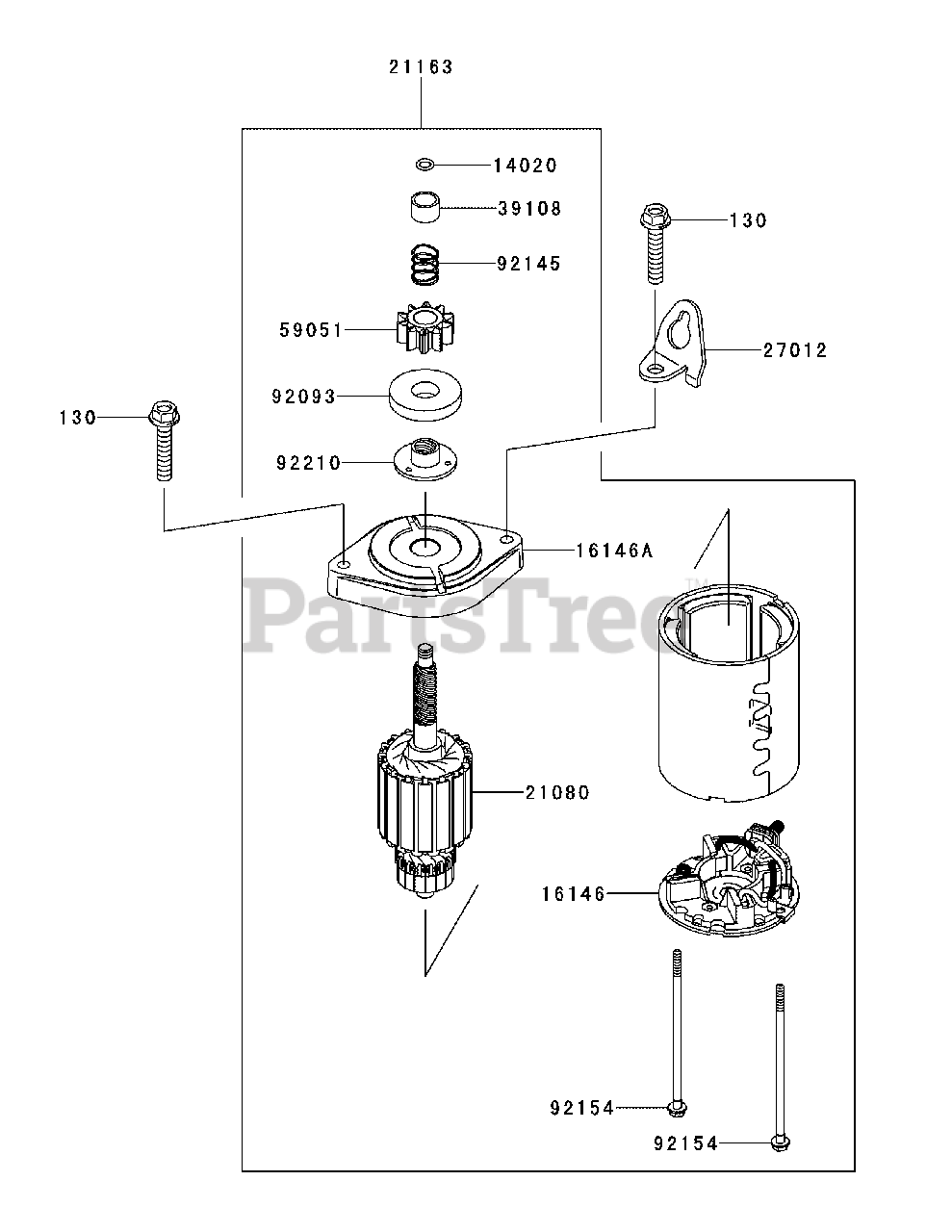

Kawasaki FR730V-AS21 Starter Parts Diagram

  • Title

14020

Cub Cadet KM-14020-7002

Retainer

$1.99

$

In Stock, only 3 left!

0

16146

Cub Cadet KM-16146-0731

Cover Assembly

$74.99

$

Usually ships in 2-5 days

0

16146A

Cub Cadet KM-16146-7030

Cover Assembly

$107.99

$

Usually ships in 2-5 days

0

21080

Cub Cadet KM-21080-0007

Armature

$

$

Not available

21163

Cub Cadet KM-21163-0743

Electric Starter
(Superseded to KM-21163-0804)

$286.99

$

Usually ships in 3-6 days

0

27012

Cub Cadet KM-27012-7008

Hook

$1.49

$

Usually ships in 2-5 days

0

39108

Cub Cadet KM-39108-0552

Retainer-Spring

$3.49

$

Usually ships in 2-5 days

0

59051

Cub Cadet KM-59051-7034

Spur Gear

$29.99

$

In Stock, only 1 left!

0

92093

Cub Cadet KM-92093-7007

Seal

$5.49

$

In Stock, Qty 9

0

92145

Cub Cadet KM-92145-7060

Spring

$2.99

$

In Stock, Qty 6

0

92154

Cub Cadet KM-92154-7001

Bolt

$7.99

$

Usually ships in 2-5 days

0

92210

Cub Cadet KM-92210-0884

Nut

$6.99

$

In Stock, only 4 left!

0

130

Cub Cadet KM-130BA0840

Flanged Bolt, 8 x 40

$2.49

$

In Stock, Qty 9

0
