Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Electrical Assembly Kohler Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

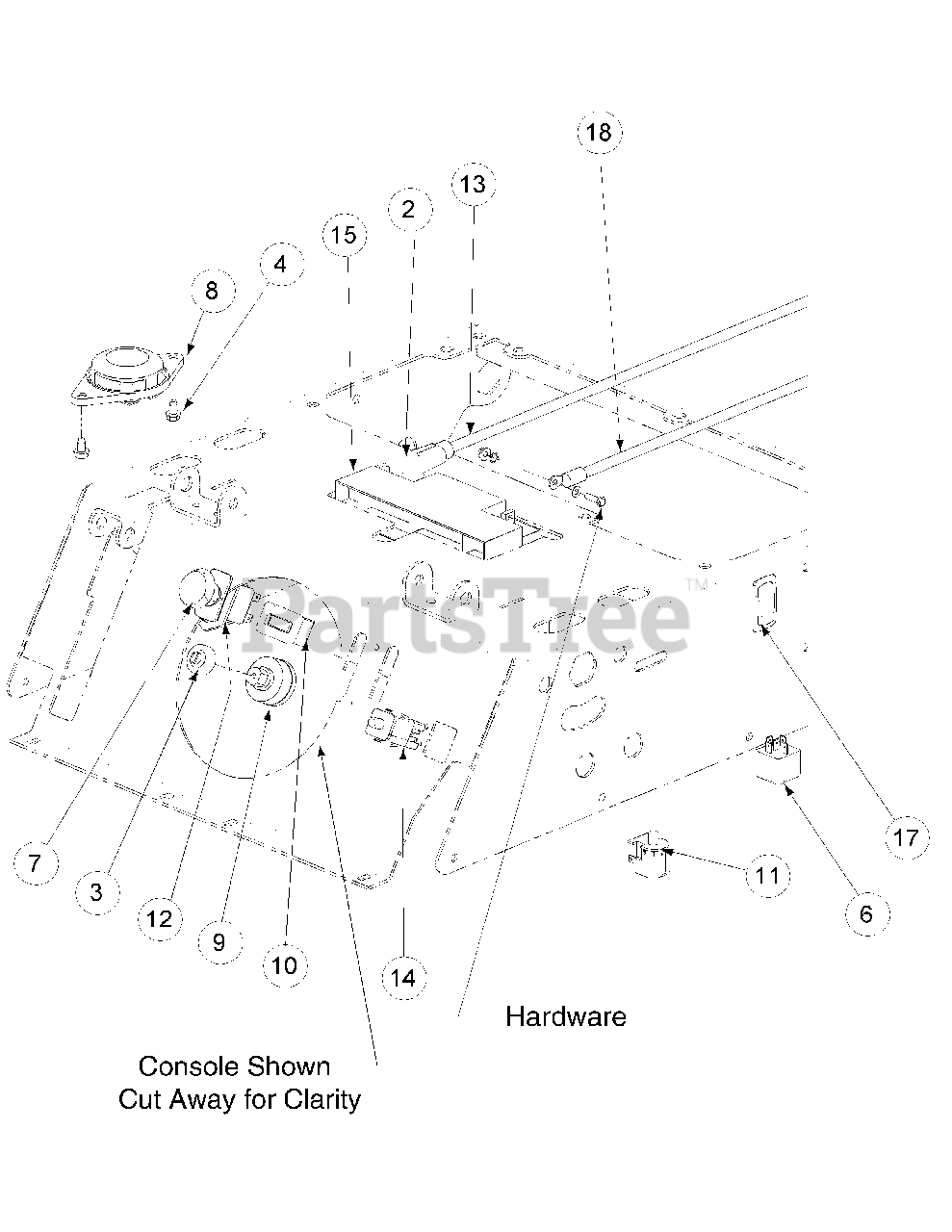

Electrical Assembly Kohler Parts Diagram

  • Title

1

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

4

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01002251

Relay 12V 40A

$53.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01003277

Normally Closed Seat Switch

$36.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$65.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-1341B

Key, Ignition

Note: (not shown)

$9.99

$

In Stock, only 2 left!

0

10

Cub Cadet 925-04893

Meter, Hour
(Superseded to 925-04893A)

$154.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01008028

Snap Mounting Switch, NO
(Superseded to 925-3167)

$13.99

$

In Stock, only 4 left!

0

12

Cub Cadet 01009905

PTO Switch Bracket

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02000684

Cable, Battery, Red, 31"

$

$

Not available

14

Cub Cadet 02000024P

Switch, Safety N.O./N.C.
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 13

0

15

Cub Cadet 02000279P

Battery, Small 12CE18

$242.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000683

Cable, Battery, Black, 31"

$

$

Not available

Cub Cadet 02000386

Harness Assembly

Note: (not shown)

$

$

Not available

Cub Cadet 02000390

Actuator Harness Assembly

Note: (not shown)

$

$

Not available

Cub Cadet 01001864

Screw, TT, 10-24, .5
(Superseded to 1767754)

Note: (not shown)

$

$

Not available

Cub Cadet 01009931

U-Nut, #10-16
(Superseded to 712-05009)

Note: (not shown)

$

$

Not available

Cub Cadet 01001811

HourMeter Harness
(Superseded to 929-04195)

Note: (not shown)

$7.99

$

Usually ships in 3-6 days

0
