Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Kohler Engine Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

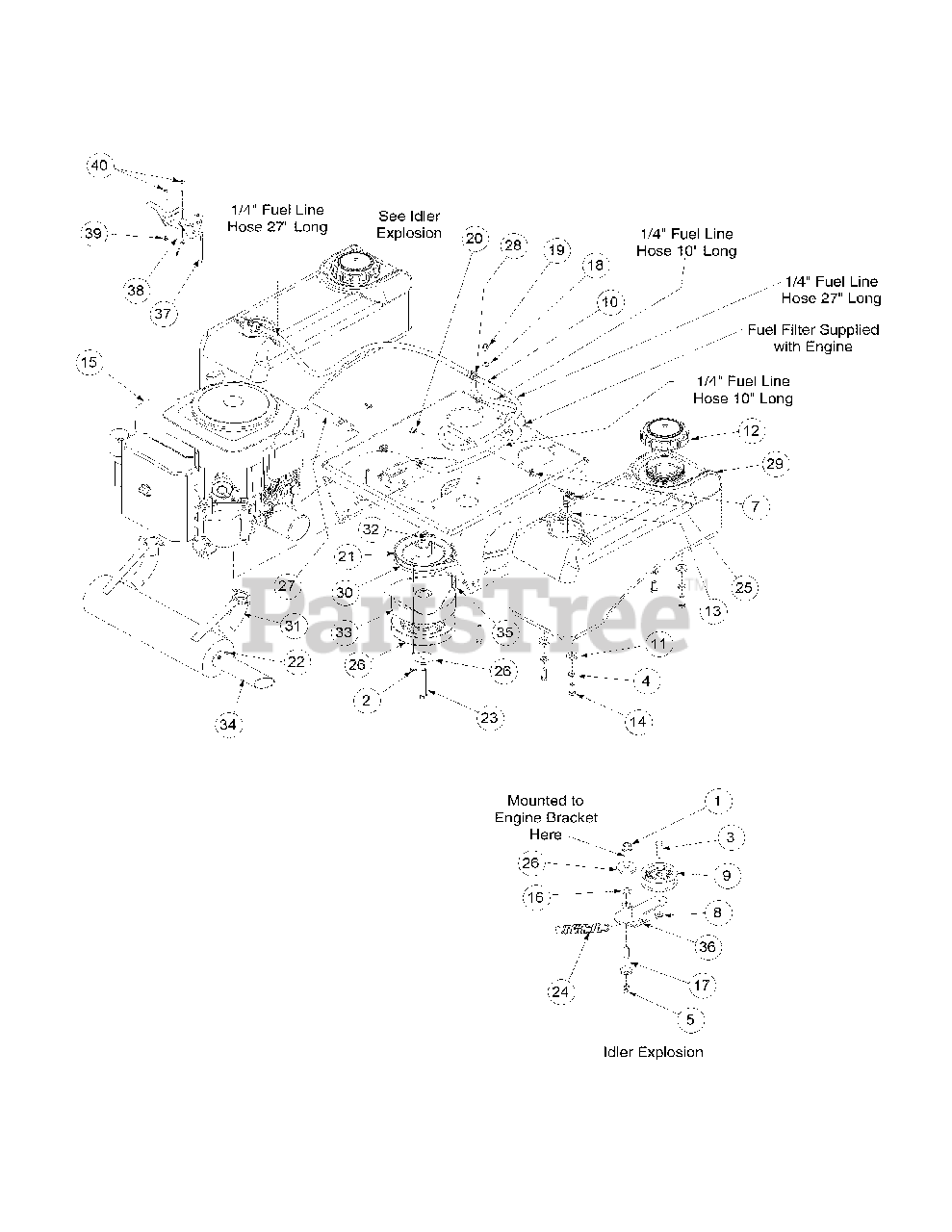

Kohler Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 02000948

Nut, 7/16-20, Flange Lock
(Superseded to 712-04337)

$3.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00010980

Hex Head Cap Screw, 3/8-16 x 1.50

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 737-3004

Grease Fitting, 90 degree

$10.99

$

In Stock, Qty 5

0

6

Cub Cadet n/a

Hose, 1/4" Fuel Line, 74 inches

Note: (purchase locally)

$

$

Currently unavailable

7

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

8

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 02004558

Idler Pulley w/ Adaptor

$21.99

$

In Stock, Qty 14

0

10

Cub Cadet 00031081

Clamp, 1/2 Tubing

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 951-3124E

Fuel Cap, 3.5

$33.99

$

In Stock, Qty 20+

0

13

Cub Cadet 02002253

Grommet, Fuel Tank

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3001

Hex, Cap Screw, 3/8-16, .88

$6.99

$

In Stock, Qty 11

0

15

Cub Cadet KH-CV680-3034

23HP Kohler Engine

$

$

Not available

16

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$20.99

$

In Stock, Qty 7

0

18

Cub Cadet 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 756-3060A

Trans Drive Pulley

$90.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0148

Screw, 8-32 x 0.375

$3.99

$

In Stock, Qty 16

0

23

Cub Cadet 710-0510

Hex Head Cap Screw, 7/16-20 x 3.00

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02001245

Extension Spring, .865 OD x 4.18 lg Version 2

$

$

Not available

24

Cub Cadet 01002874

Extension Spring, .865 OD x 4.68 lg Version 1

$10.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01003116

Fuel Pickup Fitting

$54.99

$

In Stock, Qty 7

0

26

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.49

$

In Stock, Qty 17

0

27

Cub Cadet 01003283

Oil Drain Hose

$78.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01003473

Tee Fitting, Fuel

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 01004350

Fuel Tank

$

$

Not available

30

Cub Cadet 01005010

V Belt, A Section x 47.3
(Superseded to 01005010P)

$66.99

$

In Stock, Qty 6

0

31

Cub Cadet 01006566

23HP Kohler Exhaust
(Superseded to 01006566P)

$

$

Not available

32

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 917-04127

Clutch Electric, Ogura JD08

$562.99

$

In Stock, only 1 left!

0

34

Cub Cadet 01008623

Straight Exhaust Pipe

$

$

Not available

35

Cub Cadet 01008640

Clutch Retainer Assembly

$

$

Not available

36

Cub Cadet 01009911

Idler Arm Assembly

$

$

Not available

37

Cub Cadet 02000387

Choke Control Cable

$

$

Not available

38

Cub Cadet 02000388

Throttle Control Cable

$

$

Not available

39

Cub Cadet 01009931

Nut, #10-24
(Superseded to 712-05009)

$

$

Not available

40

Cub Cadet 01008046

Screw,TT,Hex Index Washer #10-20,.75

$

$

Not available

Cub Cadet CC-737-3030A

Engine Oil, 10W30 qt
(Superseded to CC-737-3030A-B)

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-883-03-S1

Air Filter

Note: (not shown)

$27.99

$

In Stock, Qty 19

0

Cub Cadet KH-24-883-03-S1

Pre Filter

Note: (not shown)

$27.99

$

In Stock, Qty 19

0

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

Note: (not shown)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-12-050-01-S

Oil Filter

Note: (not shown)

$13.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: (not shown)

$3.49

$

In Stock, Qty 20+

0
