Z1-12 - Husqvarna Z Grass Catcher (2003-10) Container Assembly Parts Diagram

Z Grass Catcher

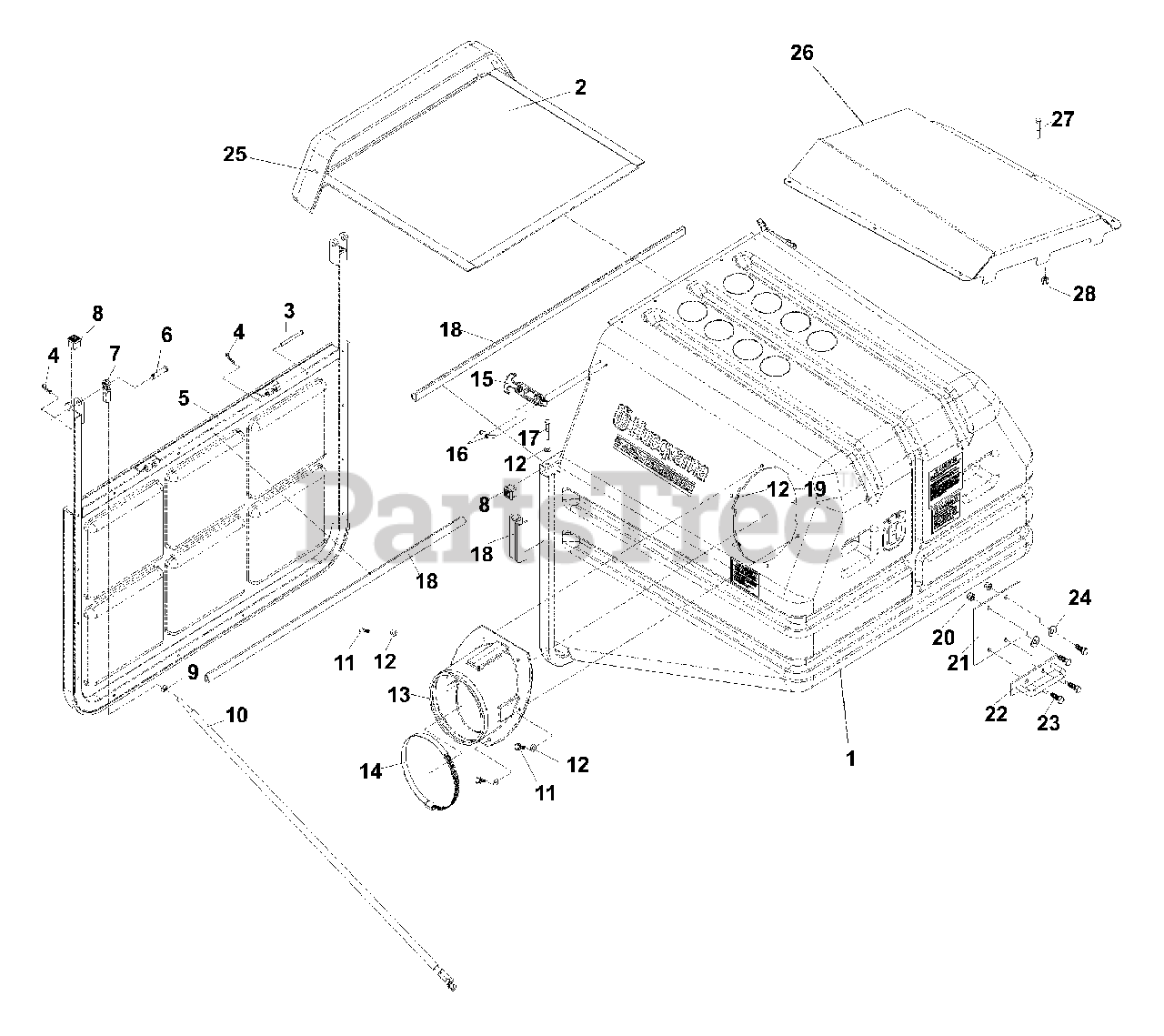

Container Assembly Parts Diagram

  • Title

1

Husqvarna 539108969

CONTAINER

$

$

Not available

2

Husqvarna 540200414

EXHAUST ASM.
(Superseded to 539200414)

$264.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540200691

CLEVIS PIN, 1/4 X 2 3/4

$

$

Not available

4

Husqvarna 540099082

HAIR PIN, #13

$

$

Not available

5

Husqvarna 540200401

DOOR ASM.

$

$

Not available

6

Husqvarna 540200692

CLEVIS PIN, 3/8 X 1 3/4
(Superseded to 539200692)

$

$

Not available

7

Husqvarna 540030425

ROD END
(Superseded to 539030425)

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540200690

PLUG

$

$

Not available

9

Husqvarna 540000224

NUT, 3/8-24
(Superseded to 539990155)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 540200520

ARM
(Superseded to 539200520)

$97.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540099008

BOLT, 1/4-28 X 1

$

$

Currently unavailable

12

Husqvarna 540000405

WASHER, 1/4

$

$

Currently unavailable

13

Husqvarna 540200408

INLET

$

$

Currently unavailable

14

Husqvarna 540097076

HOSE CLAMP
(Superseded to 539097076)

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540200478

LATCH

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540200641

SCREW, 10-24 X 1 1/4, P.T.H.

$

$

Not available

17

Husqvarna 540000134

BOLT, 1/4-20 X 2
(Superseded to 539101313)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540108134

DOOR SEAL KIT (CONTAINS 3 SEALS)
(Superseded to 539108134)

$113.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540099072

NUT, 1/4-20, NYLOC

$

$

Currently unavailable

20

Husqvarna 540099065

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 540200688

BACK PLATE

$

$

Currently unavailable

22

Husqvarna 540200695

LATCH
(Superseded to 539200695)

$47.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540000168

BOLT, 3/8-16 X 1

$

$

Currently unavailable

24

Husqvarna 540000417

WASHER, 3/8

$

$

Currently unavailable

25

Husqvarna 540200423

LATCH BASE

$

$

Currently unavailable

26

Husqvarna 539108309

HOOD

$

$

Not available

27

Husqvarna 539108535

SCREW #10-24 X 3/4 STD RD

$4.99

$

In Stock, Qty 7

0

28

Husqvarna 539976977

NUT #10-24, NYLOC

$

$

Not available

28

Husqvarna 540002004

NUT, #10-24, NYLOC

Note: (NOT SHOWN)

$

$

Currently unavailable
