Z1-12 - Husqvarna Z Grass Catcher (2003-10) Hitch Assembly Parts Diagram

Z Grass Catcher

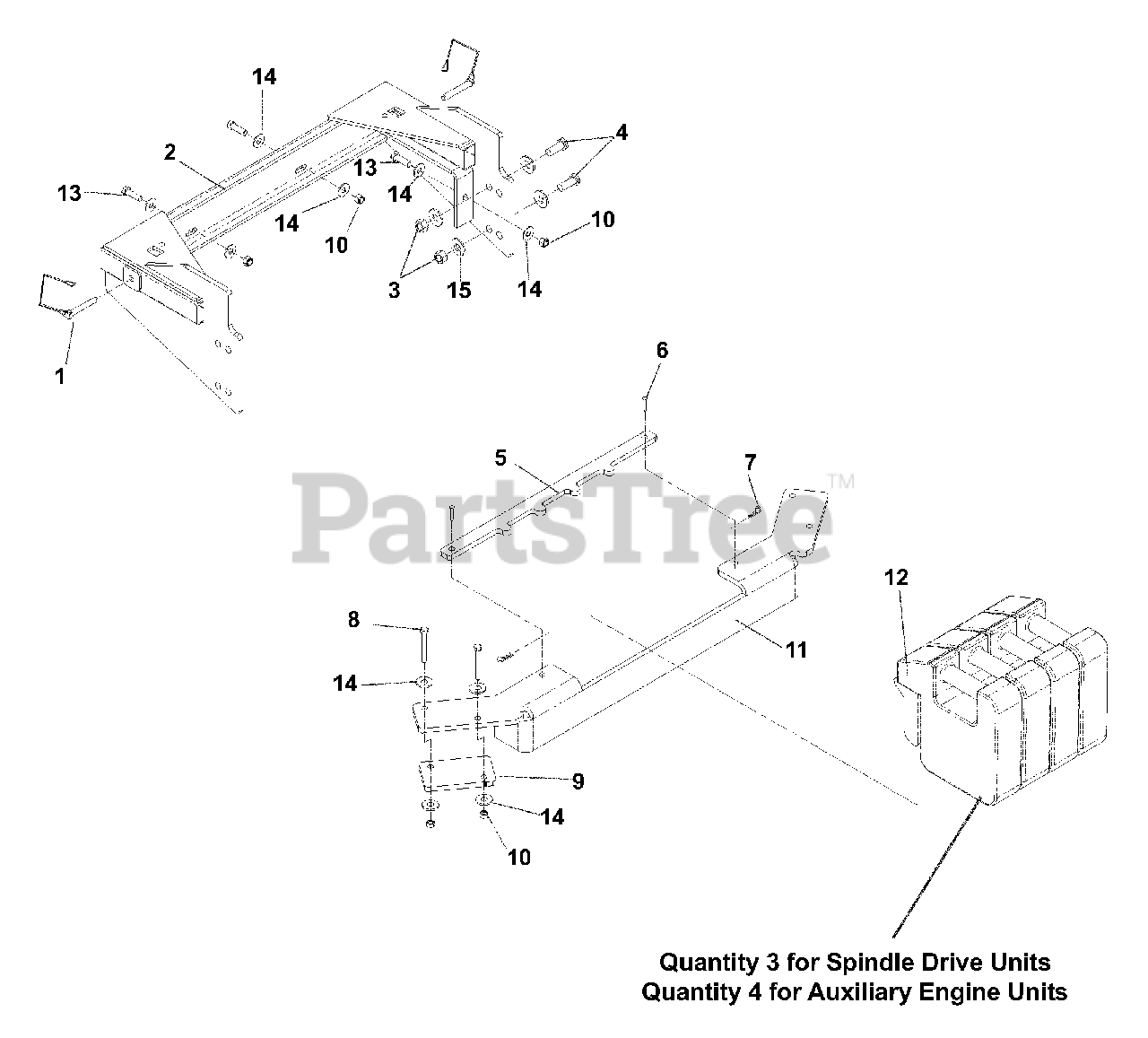

Hitch Assembly Parts Diagram

  • Title

1

Husqvarna 540099693

PIN, WIRE LOCK

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540200749

HITCH, GEN II

$

$

Not available

2

Husqvarna 540200828

HITCH, GEN I
(Superseded to 539200828)

$424.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540093082

NUT 1/2 NYLOC
(Superseded to 539101331)

$1.49

$

Usually ships in 3-10 days

0

4

Husqvarna 540099031

BOLT, 1/2-13 X 1 1/2

$

$

Not available

5

Husqvarna 540092731

FRONT WEIGHT HOLD BAR
(Superseded to 539111313)

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540099668

CLEVIS PIN, 3/8 X 1
(Superseded to 539102049)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540099616

HAIR PIN, #11
(Superseded to 539108096)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540099113

BOLT, 3/8-16 X 3 1/2

$

$

Currently unavailable

9

Husqvarna 540092519

FRONT WEIGHT CLAMP

$33.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540099065

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 540020255

FRONT WEIGHT BAR
(Superseded to 539020255)

$267.99

$

Usually ships in 3-10 days

0

12

Husqvarna 540092531

FRONT WEIGHT
(Superseded to 539092531)

$133.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540099020

BOLT, 3/8-16 X 1 1/4
(Superseded to 539976941)

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 540000415

WASHER, 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 540000425

WASHER, 1/2

$

$

Not available
