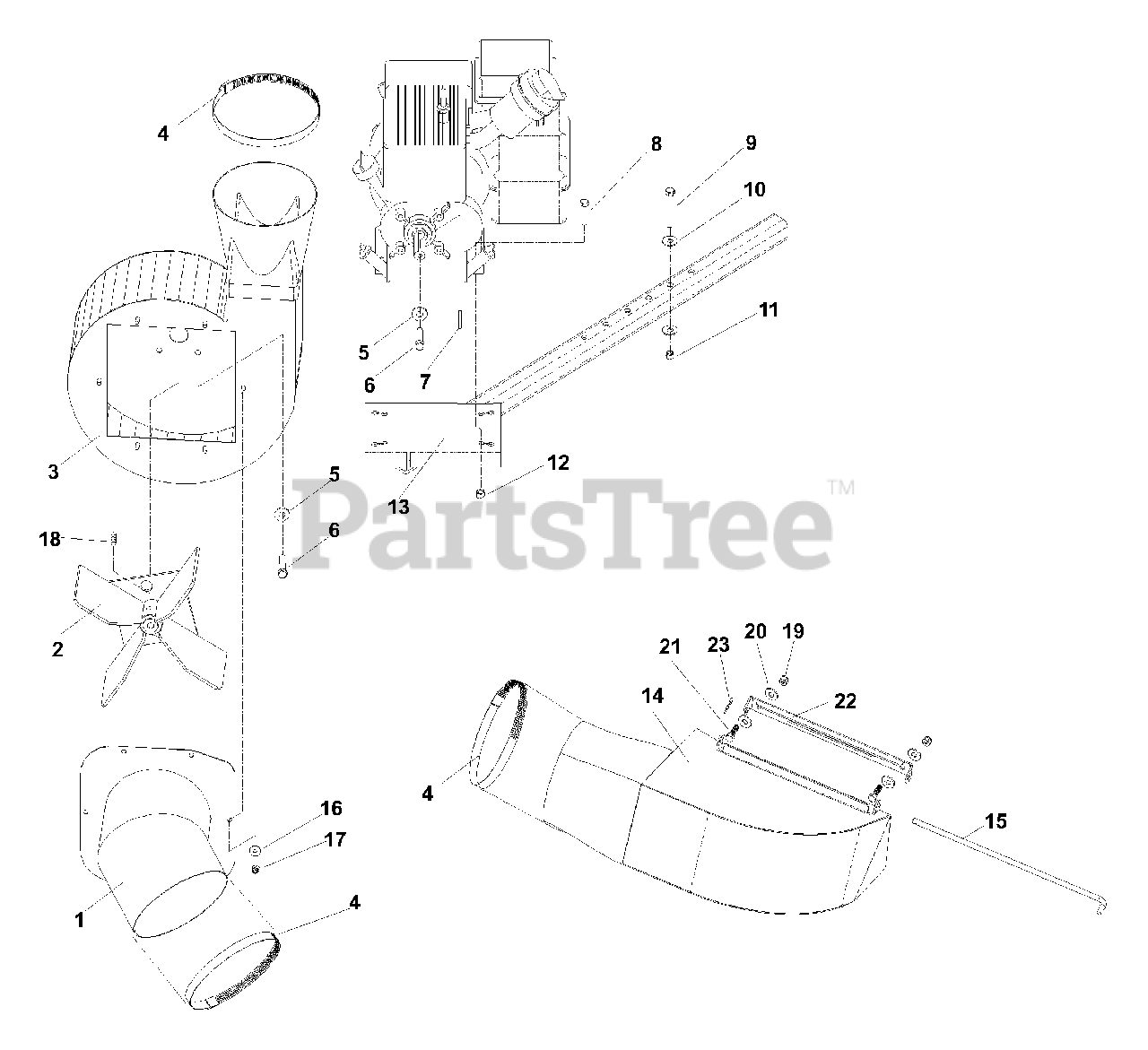

Z1-12 - Husqvarna Z Grass Catcher (2003-10) Power Unit Assembly Parts Diagram

Z Grass Catcher

Power Unit Assembly Parts Diagram

  • Title

1

Husqvarna 540092705

INLET, BLOWER HSG.

$63.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540094005

IMPELLER

$

$

Not available

3

Husqvarna 540094004

BLOWER HSG.

$190.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540097076

HOSE CLAMP
(Superseded to 539097076)

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540099001

WASHER 5/16 SPRING
(Superseded to 539109600)

$

$

Not available

6

Husqvarna 540099012

BOLT, 5/16-24 X 3/4
(Superseded to 539990233)

$0.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540099002

KEY, 3/16 X 1 3/4 SQ.
(Superseded to 539100471)

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540099015

BOLT, 5/16-18 X 1 1/2

$

$

Currently unavailable

9

Husqvarna 540099611

BOLT, 3/8-16 X 2 1/2

$

$

Not available

10

Husqvarna 540000415

WASHER, 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 540099065

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 540099079

NUT, 5/16-18, NYLOC
(Superseded to 539990717)

$1.49

$

Usually ships in 3-10 days

0

13

Husqvarna 540062092

ENGINE MOUNT
(Superseded to 539062092)

$85.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540200671

BOOT, GEN II
(Superseded to 539200671)

$136.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540200818

BOOT, GEN I
(Superseded to 539200818)

$126.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540093814

HINGE PIN, 5/16 X 14"

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540099074

WASHER, 1/4

$

$

Currently unavailable

17

Husqvarna 540099072

NUT, 1/4-20, NYLOC

$

$

Currently unavailable

18

Husqvarna 540099027

SETSCREW 3/8 X .375
(Superseded to 539108557)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540099079

NUT, 5/16-18, NYLOC
(Superseded to 539990717)

$1.49

$

Usually ships in 3-10 days

0

20

Husqvarna 540000413

WASHER, 5/16

$

$

Currently unavailable

21

Husqvarna 540099077

BOLT, 5/16-18 X 1

$

$

Currently unavailable

22

Husqvarna 540200863

BRACKET
(Superseded to 539108273)

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540099082

COTTER PIN, #13

$

$

Not available

Husqvarna 540097136

UPPER HOSE
(Superseded to 523000201)

Note: (NOT SHOWN)

$

$

Not available

Husqvarna 540097154

LOWER HOSE
(Superseded to 539111314)

Note: (NOT SHOWN)

$339.99

$

Usually ships in 3-10 days

0
