Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) ELECTRICAL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

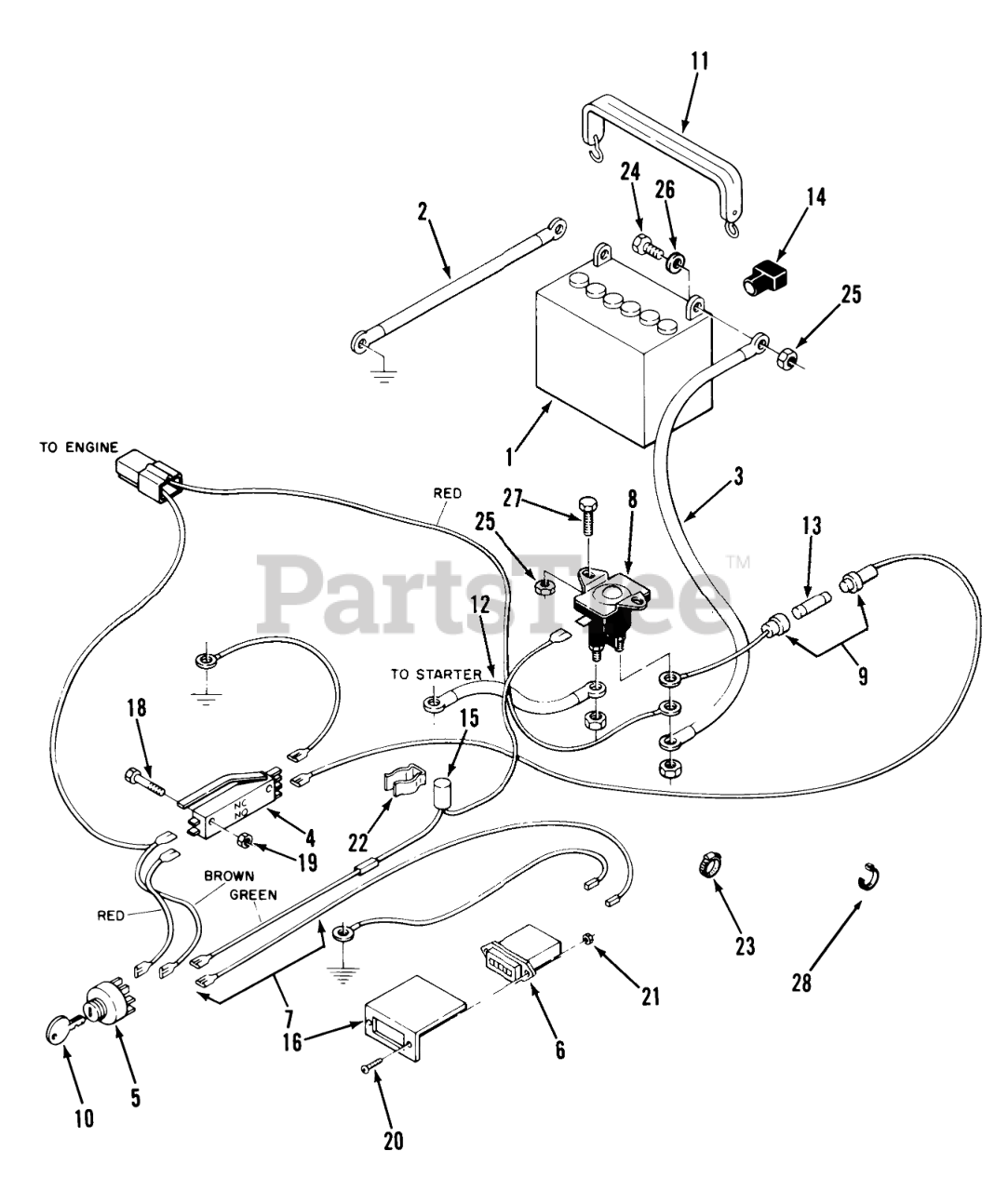

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

2

Toro 20226

Battery to Ground Cable
(Superseded to 20226B)

$

$

Not available

3

Toro 20227

Solenoid to Starter Cable

$

$

Not available

4

Toro 20244

SAFETY SWITCH

$

$

Not available

5

Toro 102981

SWITCH ASSY

$235.99

$

Usually ships in 3-6 days

0

6

Toro 20246

Hourmeter

$

$

Not available

7

Toro 112944

Wiring Harness (less items 2, 3, 12 & Hourmeter Ground Wire)

$

$

Not available

8

Toro 111674

SOLENOID-STARTER

$75.99

$

In Stock, only 1 left!

0

9

Toro 111907

20 amp. Fuse Holder Assembly

$

$

Not available

10

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

11

Toro 20228

Battery Hold Down

$

$

Not available

12

Toro 112945

ASSY-WIRE 20226-Z87

$

$

Not available

13

Toro 101639

FUSE

$2.99

$

Usually ships in 3-6 days

0

14

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

15

Toro 111886

Mercury Parking Brake Switch

$

$

Not available

16

Toro 20247

Hourmeter Bracket

$

$

Not available

18

Toro B128

BOLT SCREW 10-32X1

$

$

Not available

19

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

20

Toro 910790

BOLT

$0.99

$

In Stock, only 2 left!

0

21

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 4 left!

0

22

Toro 112391

CLIP MERC SW C-100

$

$

Not available

23

Toro 101349

CLAMP
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

24

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 960008

Nut 1/4-20
(Superseded to N102)

$

$

Not available

26

Toro 920037

WASHER

$

$

Not available

27

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

28

Toro 100571

PLASTIC TIE

$

$

Not available
