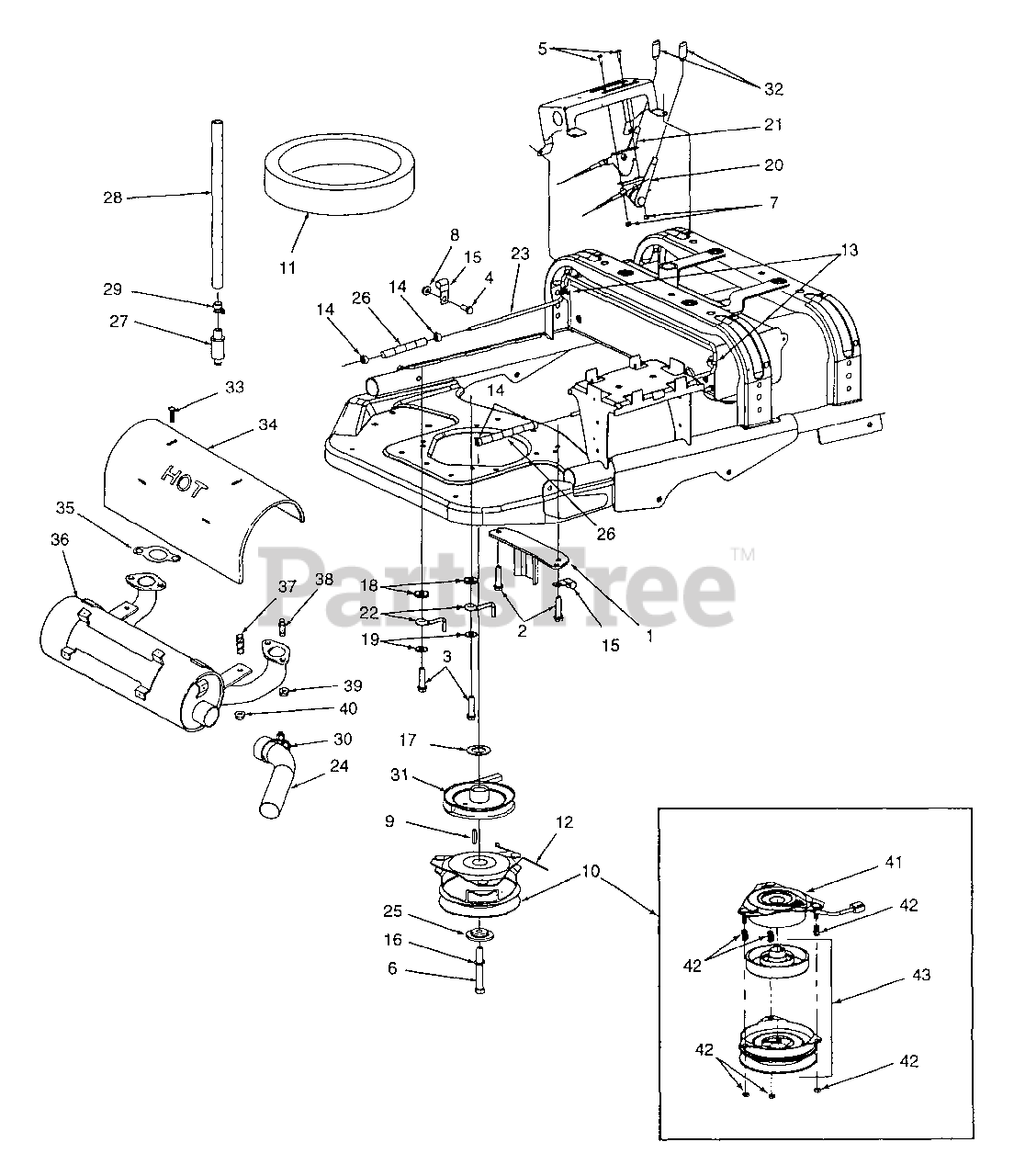

Z48 (53AC355M100) - Cub Cadet 48" Zero-Turn Mower Engine Mounting, Muffler, Controls & PTO Clutch Mfg. 4-19-98 & Before Parts Diagram

48" Zero-Turn Mower

Engine Mounting, Muffler, Controls & PTO Clutch Mfg. 4-19-98 & Before Parts Diagram

  • Title

1

Cub Cadet 603-0317

Retainer, PTO Clutch Assembly

Variations

Cub Cadet 603-0317-0637

RETAINER-CLUTCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-1007

Screw, Hex Wash Hd Tapp 3/8-16 x 1.5

$6.49

$

In Stock, Qty 5

0

3

Cub Cadet 710-1007

Screw, Hex Wash Hd Tapp 3/8-16 x 1.5

Note: Mfg Date 1F307G9 and before

$6.49

$

In Stock, Qty 5

0

Cub Cadet 710-1008

Screw, Hex Wash Hd Tapp 3/8-16 x 1.88

Note: Mfg Date 1G017G9 and after

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3009

Screw, Phil. Pan Hd, 10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3157

Screw, Hex Cap 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 10

0

7

Cub Cadet 712-0161

Nut, Hex Lock, #10-24

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-0128

Key, Square, 1/4 x 1.0

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 717-3389

Clutch Assembly, PTO
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 723-0454

Seal Ring, Foam Gasket

$

$

Not available

12

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-1711

Clip, Retainer

$

$

Not available

14

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .10

$4.49

$

In Stock, Qty 10

0

18

Cub Cadet 736-0258

Washer, Flat .385 x 1.0 x .135

Note: Mfg Date 1G017G9 and after

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet 736-3010

Washer, Flat .407 x .812 x .135 Hdn

Note: Mfg Date 1G017G9 and after

$4.99

$

In Stock, Qty 16

0

20

Cub Cadet 746-3066

Cable, Choke Control

$

$

Not available

21

Cub Cadet 746-3070

Cable, Throttle Control

$

$

Not available

22

Cub Cadet 747-3362

Rod, Rear Belt Retainer

Note: Mfg Date 1G017G9 and after

$

$

Not available

23

Cub Cadet 749-3048

Fuel Line

$

$

Not available

24

Cub Cadet 749-3071A

Tube, Muffler Exhaust

$

$

Currently unavailable

25

Cub Cadet 750-3106

Spacer, PTO Clutch

$35.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-0535-5

Fuel Line Hose 5" Length
(Superseded to 751-10349-13)

$17.99

$

In Stock, Qty 7

0

27

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, Qty 20+

0

28

Cub Cadet 751-3141-13

Extension Hose, Oil Drain 13" Lg
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

29

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 751-3147

Clamp, Muffler Exhaust Tube

$

$

Not available

31

Cub Cadet 756-3060

Pulley, Transmission Drive
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 720-0302

Knob

$

$

Not available

33

Cub Cadet KH-25-086-40

Screw, Sems Drill, #8-18 x 9/16

$

$

Not available

34

Cub Cadet KH-24-281-06

Duct, Heat Shield

$

$

Not available

35

Cub Cadet KH-24-041-02

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$

$

Not available

36

Cub Cadet KH-24-068-08

Muffler
(Superseded to KH-24-068-114-S)

$392.99

$

Usually ships in 2-5 days

0

37

Cub Cadet KH-24-072-08

Stud, Thread Rolling

$

$

Not available

38

Cub Cadet KH-M-0829033

Stud, Exhaust Manifold M8 x 1.25 x 20
(Superseded to KH-25-072-24-S)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet KH-M-0841080

Nut, Muffler Mounting, M8 x 1.25
(Superseded to 712-3086)

$4.49

$

In Stock, Qty 18

0

40

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 14

0

41

Cub Cadet 759-3694

Field Assembly
(Superseded to 959-3694)

$303.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 759-3697

Kit Spring and Nut

$

$

Not available

43

Cub Cadet 759-3739

Armature/Rotor Assembly
(Superseded to 959-3739)

$

$

Not available
