ZF 2501KH (7084574) - Snapper Zero-Turn Mower, 25hp Parking Brake Assembly Parts Diagram

Zero-Turn Mower, 25hp

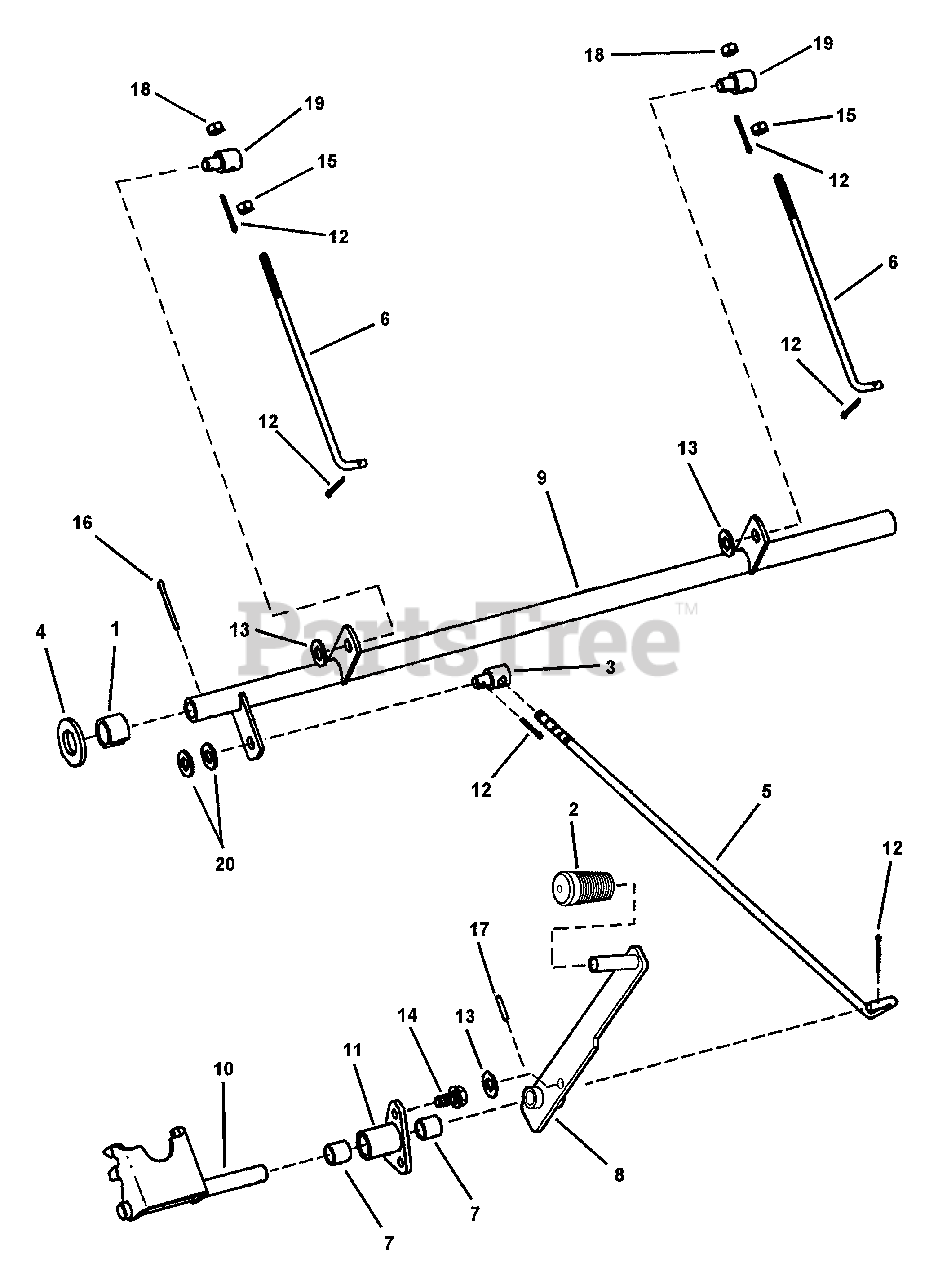

Parking Brake Assembly Parts Diagram

  • Title

1

Snapper Pro 7012068

RING, Rear Lift Arm
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7072222

GRIP, Park Brake Lever
(Superseded to 7072222YP)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7046451

SWIVEL, Adjustable (3/8-24 thread)
(Superseded to 7046451YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7034453

WASHER, 3/4 I.D. x 1-1/2 O.D. x 9/64" Flat
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7046456

ARM, Brake Lift (3/8-24 thread)

$

$

Not available

6

Snapper Pro 7035888

ROD, Hydrostatic Brake (1/4-28 thread)
(Superseded to 7035888YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7036399

SLEEVE Bearing, 1/2 I.D. x .629

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7058729

WELDMENT, Parking Brake Arm
(Superseded to 7058729YP)

$58.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7042635

WELDMENT, Brake Shaft

$

$

Not available

10

Snapper Pro 7042647

WELDMENT, Joystick Lockout Bracket
(Superseded to 7042647YP)

$100.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7042648

WELDMENT, Support Plate

$24.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

13

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

14

Snapper Pro 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

15

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 7091809

COTTER PIN, 1/8 x 1-1/4"
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7014001

PIN, Roll 1/8 x 3/4"
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 7091812

NUT, 1/4-28 Hex Nyloc

$3.49

$

In Stock, Qty 13

0

19

Snapper Pro 7091832

SWIVEL, 1/4" Smooth

$26.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025337

WASHER, 5/16" Flat
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0
