ZT 18440 KH (5091000) - Snapper 44" Zero-Turn Mower, 18hp Seat Kickplate Floor Group Parts Diagram

44" Zero-Turn Mower, 18hp

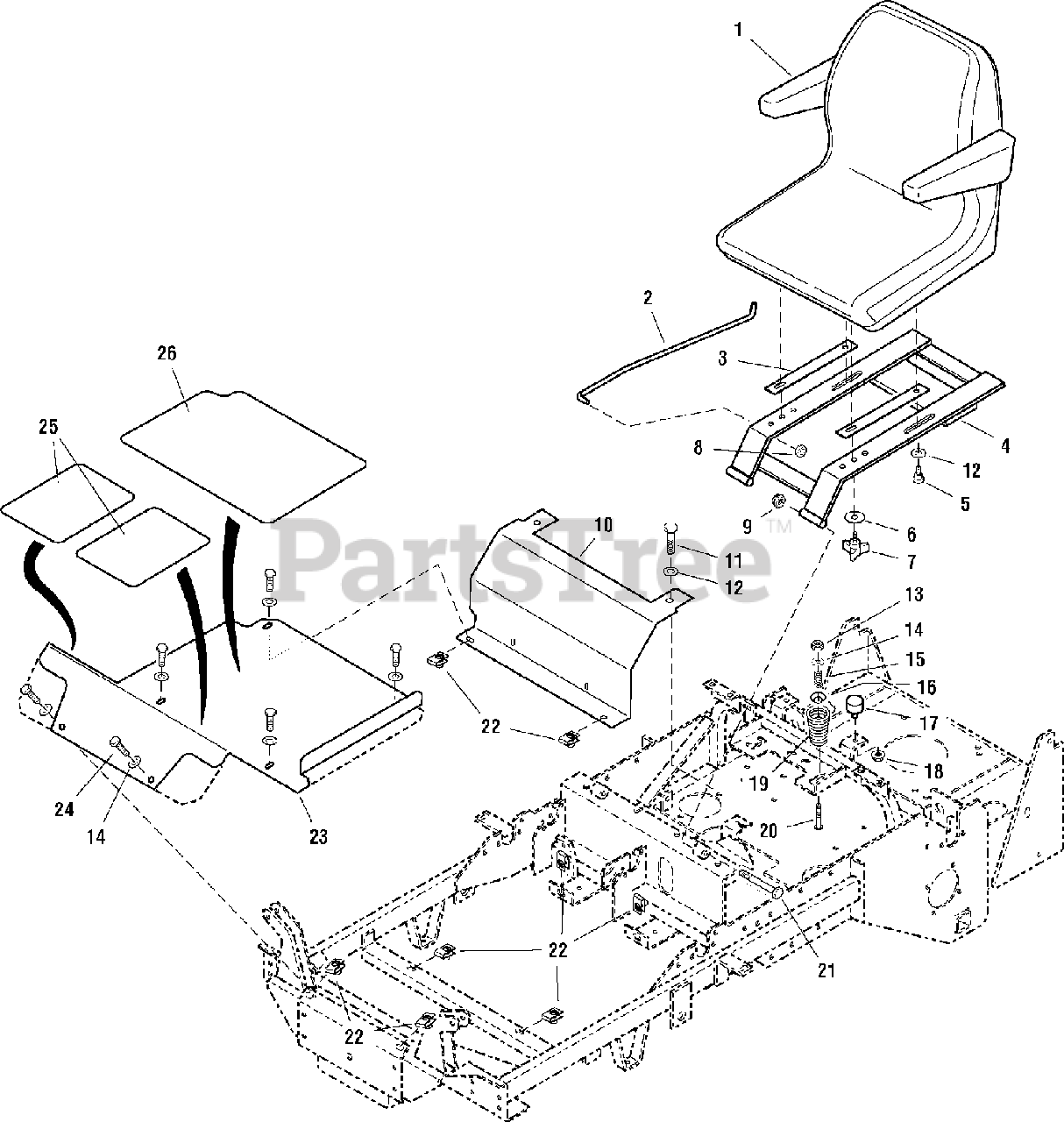

Seat Kickplate Floor Group Parts Diagram

  • Title

1

Snapper 5023184

SEAT
(Superseded to 5061600SM)

$506.99

$

Usually ships in 2-12 days

0

2

Snapper 5046470

SEAT STOP ROD
(Superseded to 5046470SM)

$33.99

$

Usually ships in 2-12 days

0

3

Snapper 4848365

PLATE, SEAT SLIDER

$

$

Currently unavailable

4

Snapper 4848117

SEAT MOUNT

$

$

Currently unavailable

5

Snapper 5025385

SHOULDER BOLT, 3/8 X 3/8
(Superseded to 5025385SM)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7090692

WASHER, USS, 5/16
(Superseded to 7090692YP)

Note: (Was 5025337)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 1700669

KNOB
(Superseded to 1700669SM)

$19.99

$

Usually ships in 2-12 days

0

8

Snapper 5020047

COLLAR, SET, 5/16
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 5025096

NUT, HEX NYLON LOCK, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

10

Snapper 4848218

BRAKE COVER PLATE

$

$

Currently unavailable

11

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

12

Snapper 3025156

WASHER, SAE, 3/8
(Superseded to 703590)

Note: (Was 5025156)

$3.99

$

In Stock, Qty 14

0

13

Snapper 7091298

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 12

0

14

Snapper 7091098

WASHER, SAE, 5/16
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1714263

SPRING, COMPRESSION
(Superseded to 1714263SM)

$4.99

$

In Stock, only 1 left!

0

16

Snapper 1729256

WASHER, SPRING, 5/16 X 1-1/4
(Superseded to 1729256SM)

$

$

Not available

17

Snapper 5022673

BUMPER
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

18

Snapper 5025126

NUT, HEX SERRATED FLANGE, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 1717051

SPRING, COMPRESSION
(Superseded to 1717051FS)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 1931339

CARRIAGE BOLT, 5/16-18 X 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

22

Snapper 3022308

BODY CLIP, 5/16-18

Note: (Was 5022308)

$

$

Not available

23

Snapper 4848338

FLOOR PLATE

$

$

Currently unavailable

24

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

25

Snapper 5047139

SAFETY WALK
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

26

Snapper 5048964

SAFETY WALK
(Superseded to 5048964SM)

$50.99

$

Usually ships in 2-12 days

0
