ZT 2142 (7800612) - Simplicity Axion 42" Zero-Turn Mower, 21hp 42" Mower Deck - Clutch & Support Group Parts Diagram

Axion 42" Zero-Turn Mower, 21hp

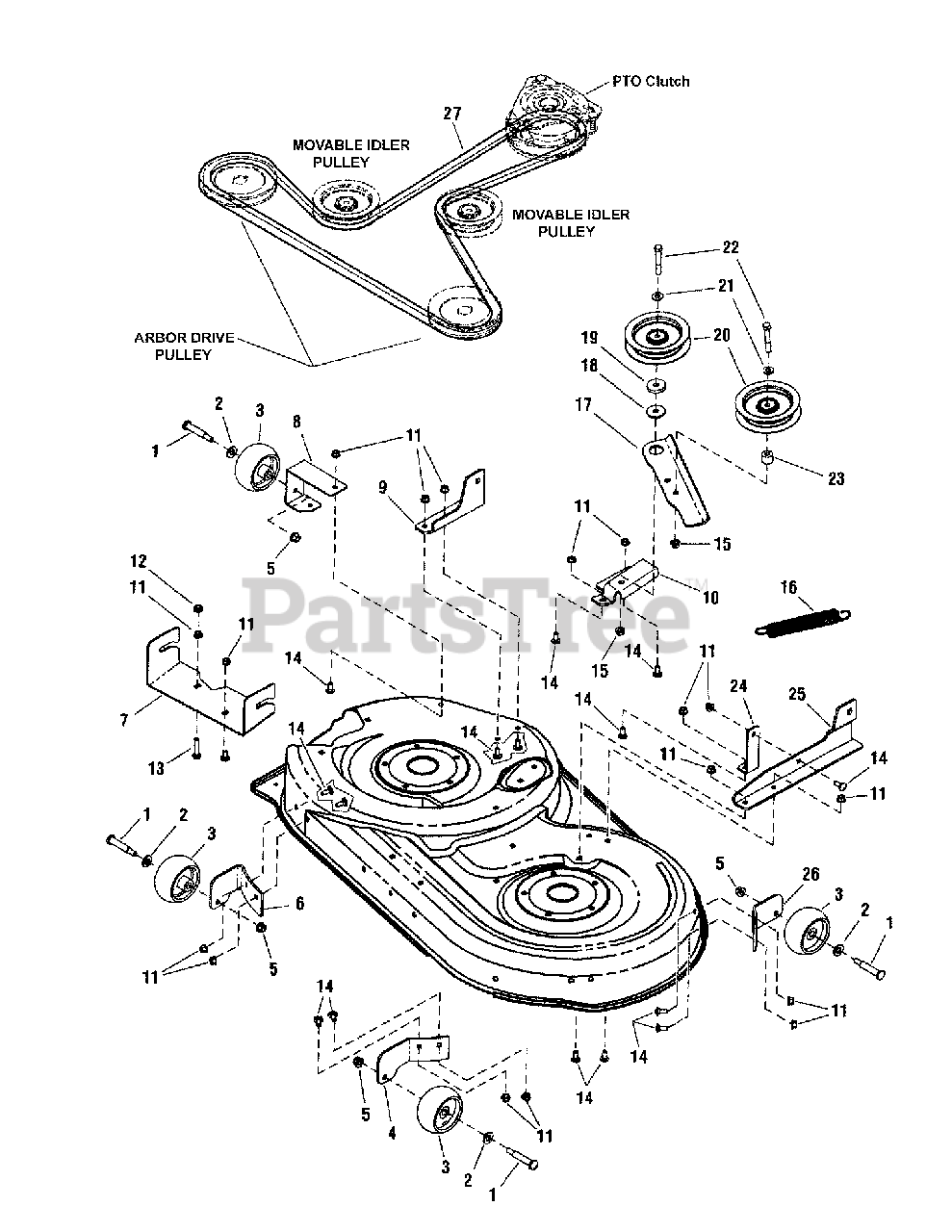

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Simplicity 2108765

BOLT, Shoulder (Gage Wheel) 3/8-16 x 2.781 x 3/4"
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

2

Simplicity 1960170

WASHER, .51 I.D. x 1.0 O.D. x .10 Thick
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1714760

WHEEL, Gage (2" Wide, 3.92 Dia.)
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

4

Simplicity 1732258BM

BRACKET, Gage Wheel L.H. Front
(Superseded to 1732258BMYP)

$29.99

$

In Stock, only 1 left!

0

5

Simplicity 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1734344BM

BRACKET, Gage Wheel R.H. Front
(Superseded to 1734344BMYP)

$35.99

$

In Stock, only 1 left!

0

7

Simplicity 1733578BM

HITCH, Mower Front
(Superseded to 1733578BMYP)

$75.99

$

Usually ships in 2-12 days

0

8

Simplicity 1734185BM

BRACKET, Gage Wheel R.H. Rear
(Superseded to 1734185BMYP)

$38.99

$

In Stock, only 4 left!

0

9

Simplicity 1733576BM

SUPPORT, Mower Rear R.H.
(Superseded to 1733576BMYP)

$41.99

$

Usually ships in 2-12 days

0

10

Simplicity 1734242BM

BRACKET, Fixed Idler
(Superseded to 1734242BMYP)

$49.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1935048

NUT, 5/16-18 Hex Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 7091612

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck, GR5
(Superseded to 704210)

Note: or 1931338 (Round Head Square Neck Bolt, 5/16-18 x 1-3/4")

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1931333

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1931211

NUT, 3/8-16 Hex Flange Whizlock, GR F
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1733844

SPRING, Extension
(Superseded to 1733844SM)

$22.99

$

In Stock, only 4 left!

0

17

Simplicity 1734243BM

ARM, Idler
(Superseded to 1734243BMYP)

$

$

Not available

18

Simplicity 1714255

SPACER, .406 I.D. x 1.50 O.D. x .350 Thick, Powdered Metal
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 6

0

19

Simplicity 1960534

WASHER, 3/8 (.41 I.D. x 1.50 O.D. x .25 Thick)
(Superseded to 1960534SM)

$

$

Not available

20

Simplicity 1732360

PULLEY, Idler, 4" O.D. x .378 I.D. x 1"
(Superseded to 1732360SM)

$48.99

$

In Stock, Qty 17

0

21

Simplicity 1924940

WASHER, .3/8 (.41 I.D. x .87 O.D. x .08 Thick)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

23

Simplicity 1667812

SPACER (.390 x .900 x .70 Thick)
(Superseded to 1667812SM)

$5.99

$

In Stock, only 2 left!

0

24

Simplicity 1733577BM

BRACE, Mower Support
(Superseded to 1733577BMYP)

$24.99

$

Usually ships in 2-12 days

0

25

Simplicity 1733575BM

SUPPORT, Mower Rear L.H.
(Superseded to 1733575BMYP)

$86.99

$

Usually ships in 2-12 days

0

26

Simplicity 1731403

BRACKET, Gage Wheel L.H. Rear
(Superseded to 1731403ASM)

$14.99

$

In Stock, only 1 left!

0

27

Simplicity 1732966

V-BELT, A Wedge 98.00 Effective Length, Belt Sect. HA
(Superseded to 1732966SM)

$75.99

$

Usually ships in 2-12 days

0
