ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp 42" Deck Group Parts Diagram

42" Zero-Turn Mower, 21hp

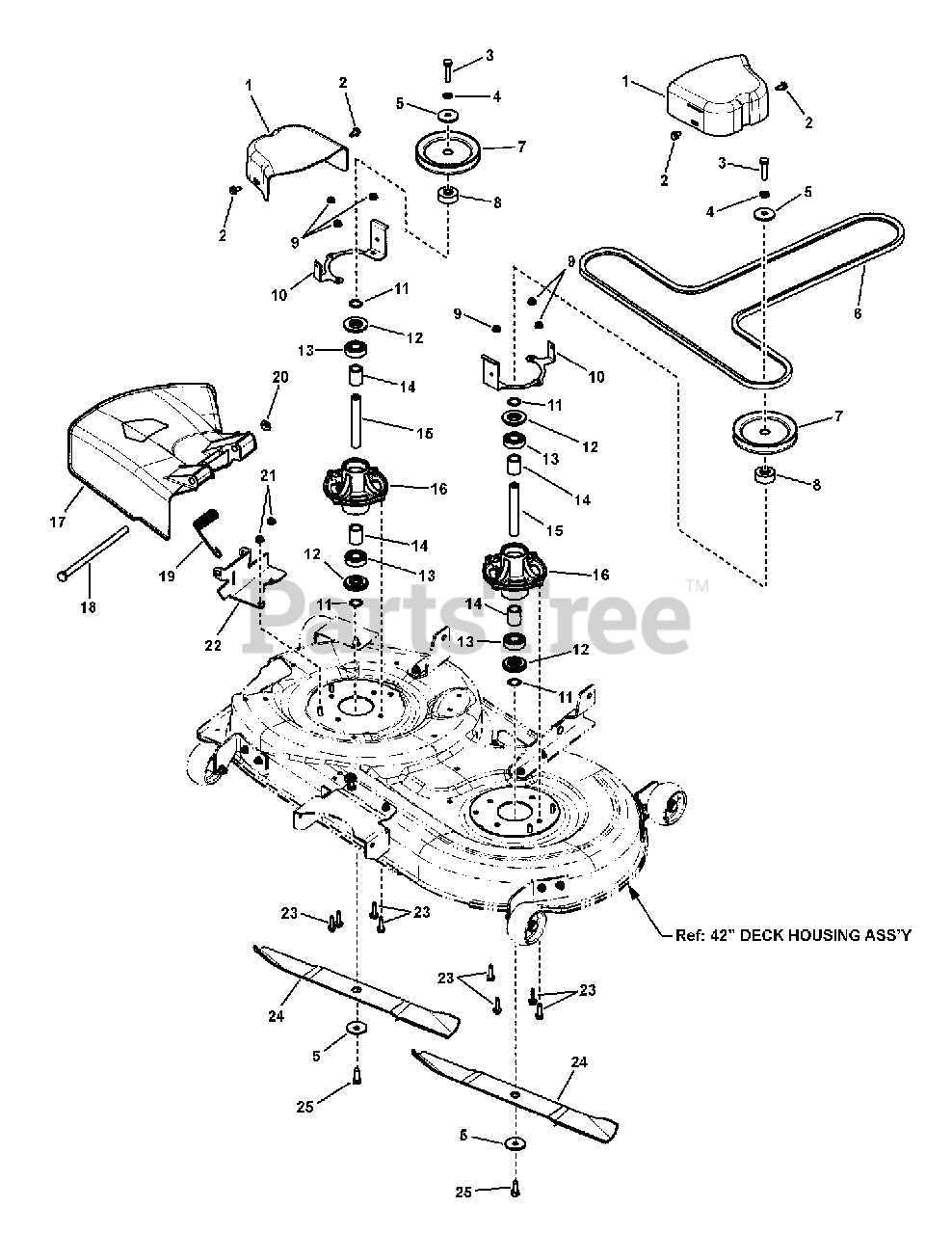

42" Deck Group Parts Diagram

  • Title

1

Simplicity 1735752

BELT COVER, RH, HD Polypropolene, Black
(Superseded to 1735752YP)

$29.99

$

In Stock, only 1 left!

0

2

Simplicity 1930601

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap, Black
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

3

Simplicity 1923027

SCREW, 7/16-14 x 1-3/4" Hex Head Cap, GR 5, Black
(Superseded to 703171)

$3.99

$

In Stock, Qty 5

0

4

Simplicity 1918199

LOCKWASHER, .438, Spring, Black
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

5

Simplicity 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1732956

V-BELT, HA 118.00 LG A-Wedge Aramid
(Superseded to 1732956SM)

$75.99

$

In Stock, Qty 6

0

7

Simplicity 1737835

PULLEY, V Deep Groove
(Superseded to 1737835YP)

$20.99

$

In Stock, only 1 left!

0

8

Simplicity 1737457

SPACER, Pulley, Yellow Zinc
(Superseded to 1737457YP)

$10.99

$

In Stock, only 2 left!

0

9

Simplicity 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 7301177BZ

BRACKET, Belt Cover
(Superseded to 7301177BZYP)

$35.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1735323

SHIELD, Arbor, 2.050 OD
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1735399

BALL BEARING, 20 MM
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

14

Simplicity 1735328

SPACER, Bearing Powdered Metal
(Superseded to 1735328YP)

$6.49

$

In Stock, Qty 20+

0

15

Simplicity 1735326

SHAFT, Spindle 20MM Dia. 134.60 MM Long
(Superseded to 1735326YP)

$27.99

$

In Stock, Qty 10

0

16

Simplicity 1735573

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 1735573YP)

$43.99

$

In Stock, Qty 11

0

17

Simplicity 7104733

SIDE CHUTE, Discharge
(Superseded to 7104733YP)

$87.99

$

Usually ships in 2-12 days

0

18

Simplicity 7104640

ROD, Pivot, Chute, Discharge
(Superseded to 7104640YP)

$28.99

$

In Stock, only 1 left!

0

19

Simplicity 7035813

SPRING, Torsion, Side Discharge
(Superseded to 7035813SM)

$24.99

$

In Stock, only 3 left!

0

20

Simplicity 1960519

PUSH NUT, for .500 Dia Stud, Capped, Black
(Superseded to 703179)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1927557

NUT, 5/16-18 Hex Flange Lock, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

22

Simplicity 7301176BZ

BRACKET, Hinge
(Superseded to 7301176BZYP)

$39.99

$

Usually ships in 2-12 days

0

23

Simplicity 7091524

SCREW, 5/16-18 x 1-1/4" Hex Washer Self-Tap
(Superseded to 703167)

Note: (or 7091151)

$3.99

$

In Stock, Qty 13

0

24

Simplicity 1737816BM

BLADE, 21.16"
(Superseded to 1737816BMYP)

$27.99

$

In Stock, Qty 6

0

25

Simplicity 1920676

SCREW, 7/16-14 x 1" Hex Head Cap, GR 5, Black
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 5

0
