ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp Electrical Group Parts Diagram

42" Zero-Turn Mower, 21hp

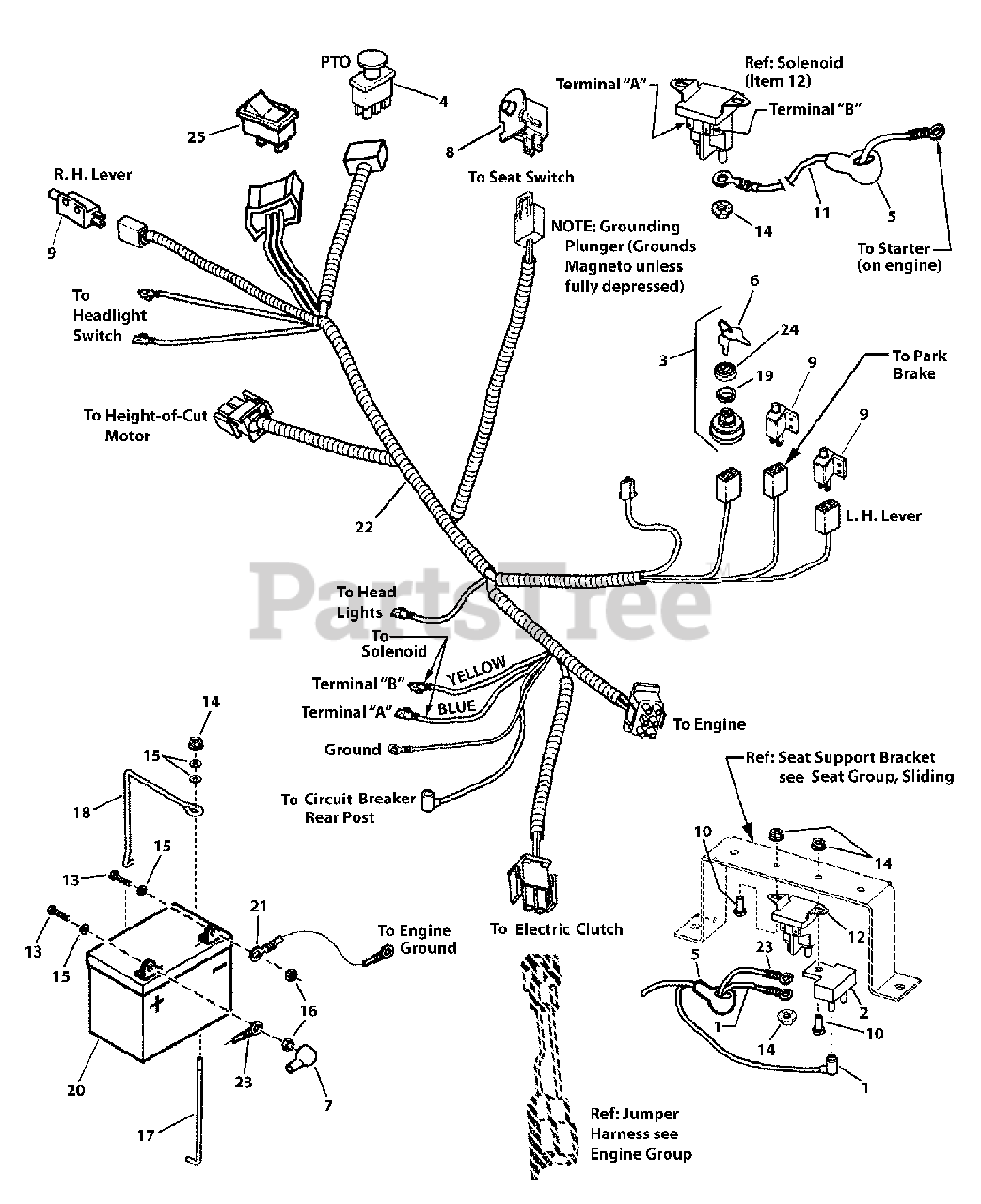

Electrical Group Parts Diagram

  • Title

1

Simplicity 1665237

WIRE, 12 Gage, 8" Red
(Superseded to 1665237SM)

$11.99

$

In Stock, only 1 left!

0

2

Simplicity 1665238

BREAKER, Circuit 12 Volt 20 Amps w/Tab
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 9

0

3

Simplicity 1737853

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

4

Simplicity 1722887

SWITCH, PTO Push/Pull Symbols
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

5

Simplicity 1724588

COVER, Terminal Red Vinyl
(Superseded to 1724588SM)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1737836

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM
(Superseded to 1737836YP)

$20.99

$

Usually ships in 2-12 days

0

7

Simplicity 1677296

BOOT, Insulator, Battery Terminal PVC Red
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

8

Simplicity 7023354

SWITCH, Seat, Push Button (NC) (gray)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 7023355

SWITCH, DPDT (NC/NO) (Gray)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 12

0

10

Simplicity 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5 YZ
(Superseded to 001X38MA)

Note: (or 7027172)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 7042956

WIRE, Negative, 8 Gage, 14, Black
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

12

Simplicity 7075622

SOLENOID, Super Trombetta, 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 10

0

13

Simplicity 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5 YZ
(Superseded to 001X38MA)

Note: (or 7027172)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 7091584

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 7091294

WASHER, 1/4" Flat, YZ
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

16

Simplicity 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 BZ
(Superseded to 703954)

$

$

Not available

17

Simplicity 7100308

HOLD DOWN, Battery
(Superseded to 7100308SM)

$7.99

$

In Stock, only 1 left!

0

18

Simplicity 7100309

BRACKET, Battery
(Superseded to 7100309SM)

$10.99

$

Usually ships in 2-12 days

0

19

Simplicity 7100329

NUT, 5/8-32, E-Start
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 7060618SM

BATTERY, 12 Volt, 230 CCA
(Superseded to 1685215SM)

Note: (or 7100449)

$

$

Not available

21

Simplicity 7100636

CABLE, Battery, Negative, 8 Gage, 20", Black
(Superseded to 7100636SM)

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 7103412

HARNESS, Wiring, RZT
(Superseded to 7103412YP)

$103.99

$

Usually ships in 2-12 days

0

23

Simplicity 720348

CABLE, Battery, Positive, 8 Gage, Red
(Superseded to 024X31MA)

$7.49

$

Usually ships in 2-12 days

0

24

Simplicity 727338

CAP, Ignition Switch
(Superseded to 091488MA)

$4.99

$

In Stock, only 4 left!

0

25

Simplicity 1734141

SWITCH, Rocker Electric Height-Of-Cut
(Superseded to 1734141SM)

$47.99

$

In Stock, Qty 17

0
