ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp Front Axle Group (7501589) Parts Diagram

42" Zero-Turn Mower, 21hp

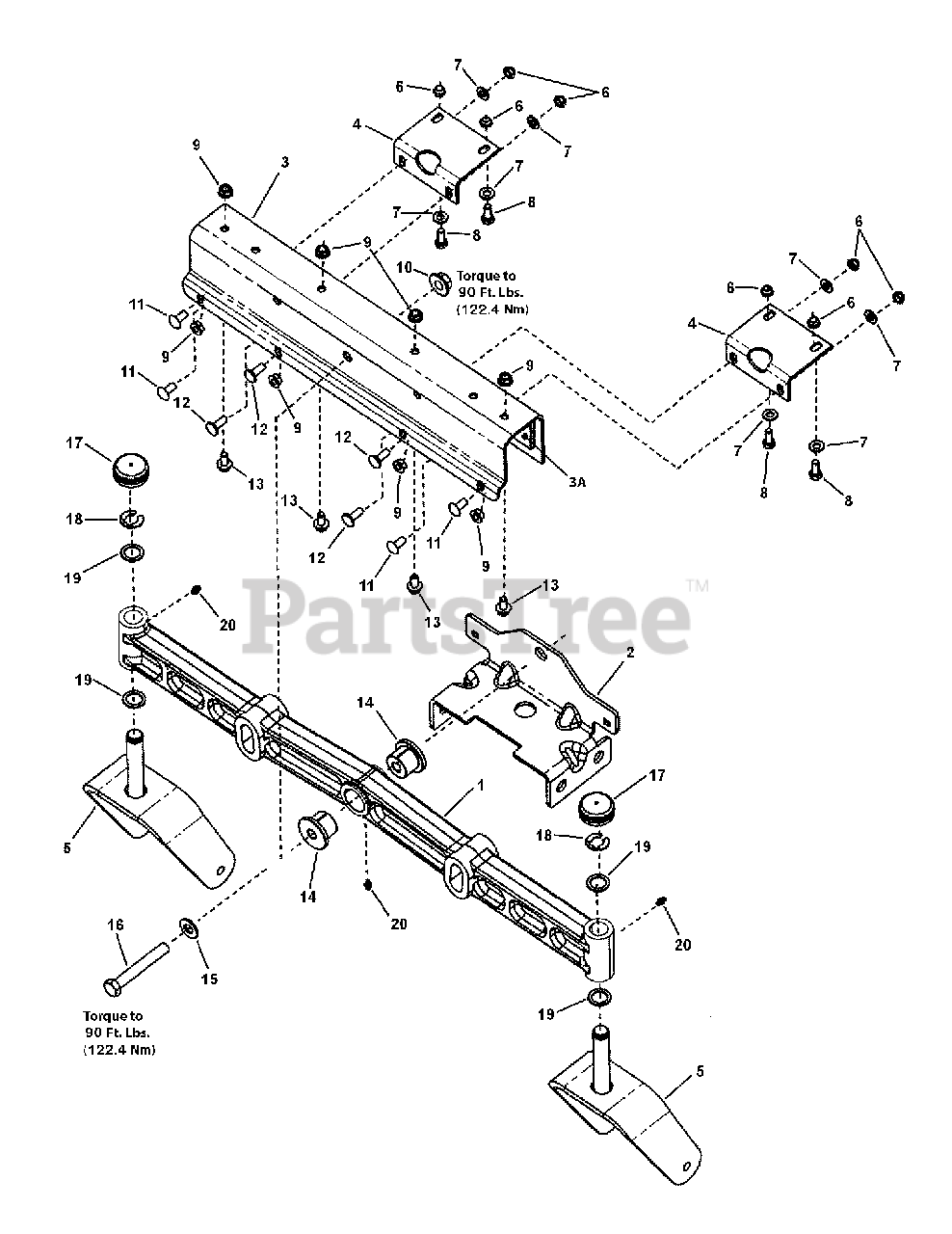

Front Axle Group (7501589) Parts Diagram

  • Title

1

Simplicity 1733426YP

AXLE, Front

$

$

Not available

2

Simplicity 7301096BMYP

BRACKET, Hanger, Front, 46 / 52

$39.99

$

Usually ships in 2-12 days

0

3

Simplicity 7301076BMYP

BRACKET, Axle

$39.99

$

Usually ships in 2-12 days

0

3A

Simplicity 7103773YP

PLATE, Friction, Adhesive Backed

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 7300004BMYP

BRACKET, Axle Support

$21.99

$

Usually ships in 2-12 days

0

5

Simplicity 1733448BMYP

CASTER YOKE & SPINDLE

$152.99

$

In Stock, only 1 left!

0

6

Simplicity 7091706SM

NUT, Hex Top Lock, 5/16-18, GR B

$3.99

$

In Stock, only 1 left!

0

7

Simplicity 7090188SM

WASHER, Flat, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 7091318SM

CAPSCREW, Hex Flange, 5/16-18 x 3/4, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Simplicity 7091601SM

NUT, Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 1930644SM

NUT, Hex Flange, Two Way Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 7091508SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

13

Simplicity 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

14

Simplicity 7103454YP

BUSHING, Axle Pivot

$45.99

$

Usually ships in 2-12 days

0

15

Simplicity 7091587SM

WASHER, Flat, 1/2
(Superseded to 704123)

$4.49

$

In Stock, Qty 15

0

16

Simplicity 7091558SM

CAPSCREW, Hex Head, 1/2-13 x 3-1/2

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 1734135SM

HUB CAP

$5.99

$

In Stock, Qty 11

0

18

Simplicity 1611710SM

RING, Klipring, 3/4

$4.49

$

In Stock, Qty 16

0

19

Simplicity 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 7013864SM

LUBE FITTING, 3/16" Press Fit

$3.49

$

In Stock, Qty 6

0
