ZT 2148 B - Simplicity Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton Engine Group - PTO - Briggs & Stratton (7034epgb) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton

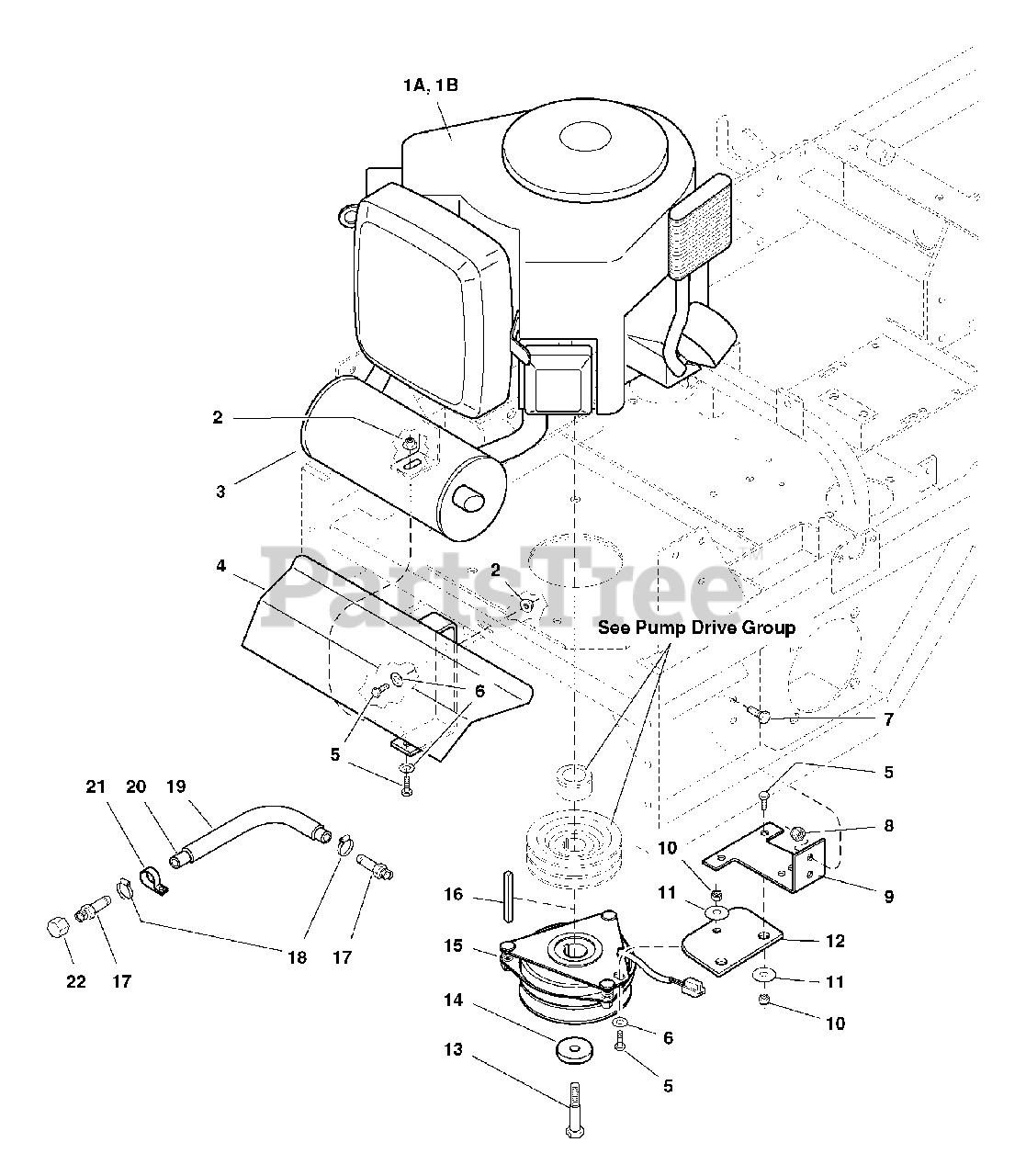

Engine Group - PTO - Briggs & Stratton (7034epgb) Parts Diagram

  • Title

1A

Simplicity 5022823SM

ENGINE, 21HP Briggs & Stratton, Model #381777

$

$

Not available

1B

Simplicity 5022824

ENGINE, 23HP Briggs & Stratton, Model #380777

$

$

Not available

2

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 5022837SM

MUFFLER

$330.99

$

Usually ships in 2-12 days

0

4

Simplicity 1846487

MUFFLER SUPPORT

$

$

Not available

5

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

6

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

9

Simplicity 1847134

CLUTCH ANCHOR

$

$

Not available

10

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

11

Simplicity 5025165SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

13

Simplicity 5044853SM

CRANKSHAFT BOLT, 7/16 x 2

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 5045475SM

RETAINER, Clutch

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023231

ELECTRIC CLUTCH
(Superseded to 5023432SM)

$683.99

$

In Stock, only 1 left!

0

16

Simplicity 50504072

KEY, 1/4 Sq. x 3

$

$

Not available

17

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$15.99

$

Usually ships in 2-12 days

0

18

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 50508627

WIRE LOOM, 7"

$

$

Not available

20

Simplicity 5050857X9

HOSE, 9"
(Superseded to 5050857X9SM)

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 5021500SM

CLAMP, Vinyl

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021466SM

CAP, 3/8NPT

$6.49

$

Usually ships in 2-12 days

0
