ZT 2352 T - Simplicity Colt 52" Zero-Turn Mower, 23hp Kohler Parking Brake Group - Upper (7090pbgu) Parts Diagram

Colt 52" Zero-Turn Mower, 23hp Kohler

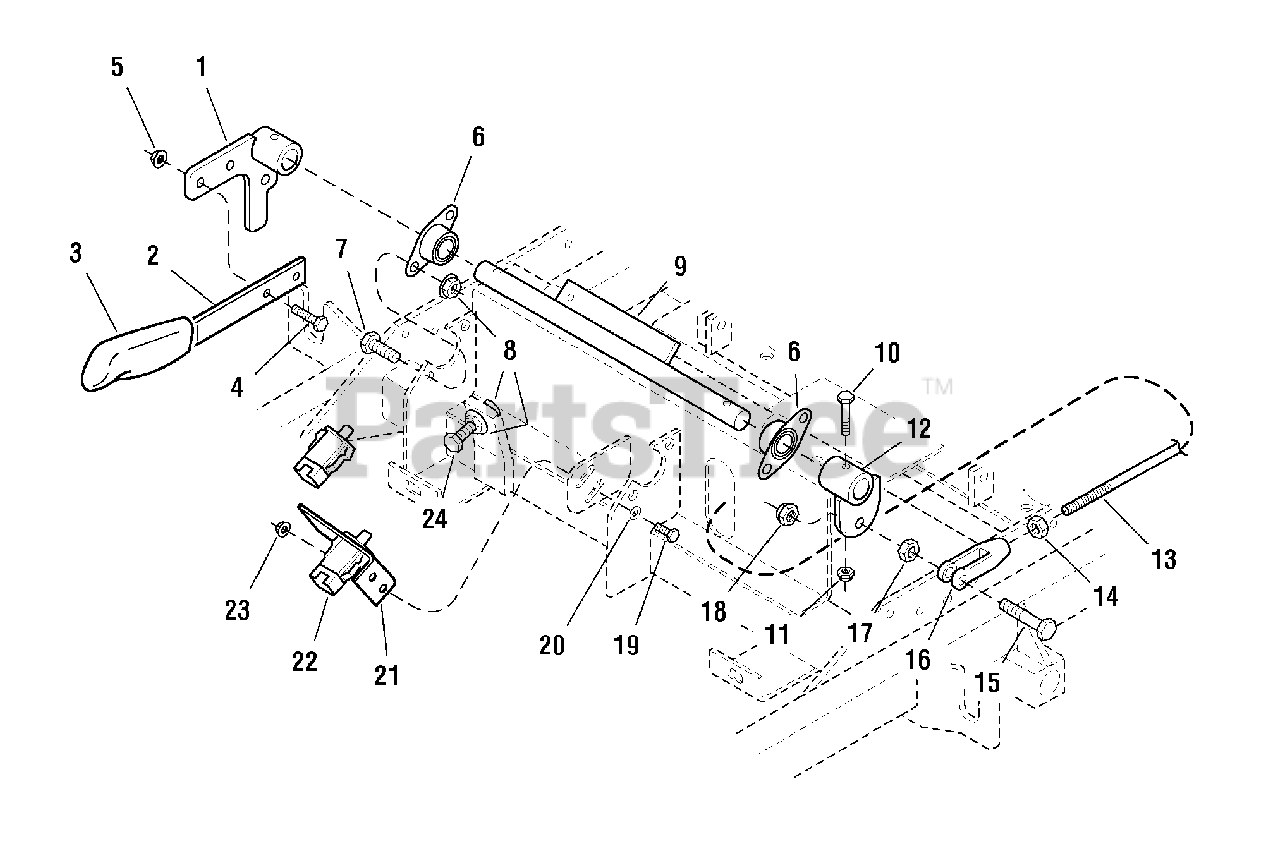

Parking Brake Group - Upper (7090pbgu) Parts Diagram

  • Title

1

Simplicity 5045616CSM

BRAKE HANDLE MOUNT

$49.99

$

Usually ships in 2-12 days

0

2

Simplicity 5045619CSM

BRAKE HANDLE

$

$

Not available

3

Simplicity 1722302SM

GRIP

$8.49

$

In Stock, Qty 11

0

4

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

5

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 7

0

7

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5047083CSM

BRAKE HANDLE SHAFT

$

$

Not available

10

Simplicity 5025010X14SM

CAPSCREW, Hex Hd, 1/4-20 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5045618CSM

BRAKE LINKAGE PIVOT

$50.99

$

Usually ships in 2-12 days

0

13

Simplicity 5047119SM

BRAKE CONNECTING ROD

$

$

Not available

14

Simplicity 5025035SM

NUT, Hex, 3/8-24

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X16SM

CAPSCREW, Hex Hd, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5021171SM

CLEVIS, 3/8-24

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

18

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

19

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 13

0

20

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 5045621CSM

SWITCH MOUNT BRACKET

$14.99

$

In Stock, only 1 left!

0

22

SWITCH (see electrical schematic)

$

$

Not available

23

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 5025058X14

CAPSCREW, Hex Hd, TFL, 3/8-16 x 1-3/4
(Superseded to 5025058X14YP)

$3.49

$

Usually ships in 2-12 days

0
