ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Electrical Group (7010eg) Parts Diagram
Stallion 54" Zero-Turn Mower, 23hp Kohler

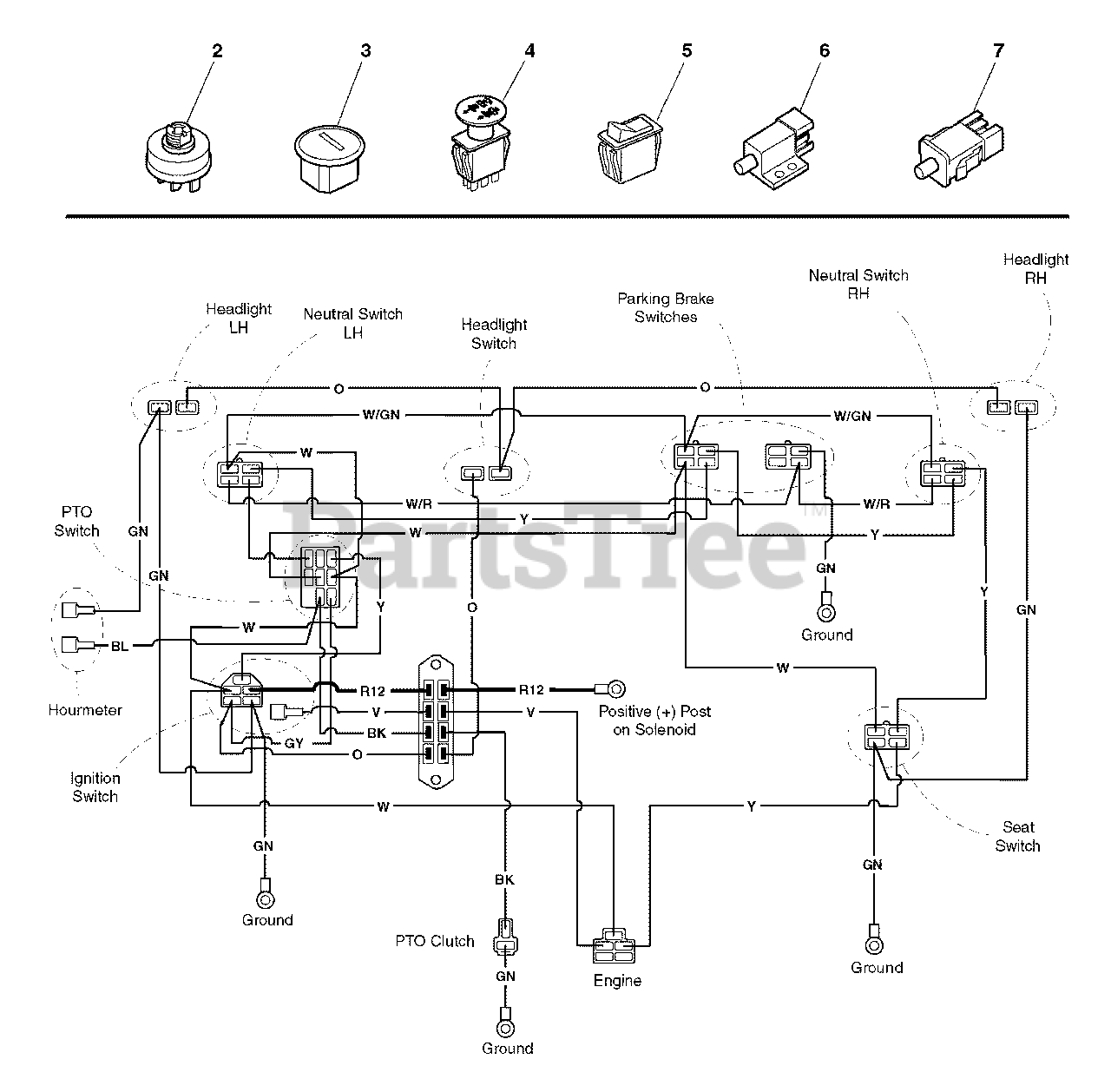

Electrical Group (7010eg) Parts Diagram
Simplicity 5045896SM
ZT2354 Wire Harness
$215.99
$
Usually ships in 2-12 days
Simplicity 1686734SM
SWITCH, Ignition
$32.99
$
In Stock, Qty 17
Simplicity 5020060SM
HOURMETER
$250.99
$
Usually ships in 2-12 days
Simplicity 1722887SM
SWITCH, PTO
$33.99
$
In Stock, Qty 20+
Simplicity 1703799SM
SWITCH, Headlight
$31.99
$
In Stock, only 2 left!
Simplicity 1717050SM
SWITCH, PLUNGER, N.O./N.C.
$17.99
$
In Stock, Qty 8
Simplicity 7022886YP
SWITCH, DP NO/NC SNAP-IN
$14.99
$
In Stock, Qty 20+
Simplicity 5021406SM
CABLE, Negative (-) Battery (not shown)
$16.99
$
Usually ships in 2-12 days
Simplicity 5044876SM
CABLE, Positive (+) Battery (not shown)
$29.99
$
Usually ships in 2-12 days
Simplicity 5044014SM
CABLE, Ground (between engine block & frame) (not shown)
$14.99
$
Usually ships in 2-12 days
Simplicity 5021603SM
FUSE, 20A (not shown)
$4.99
$
In Stock, only 2 left!
