ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Motion Control Group - Lower (7010mcgl) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

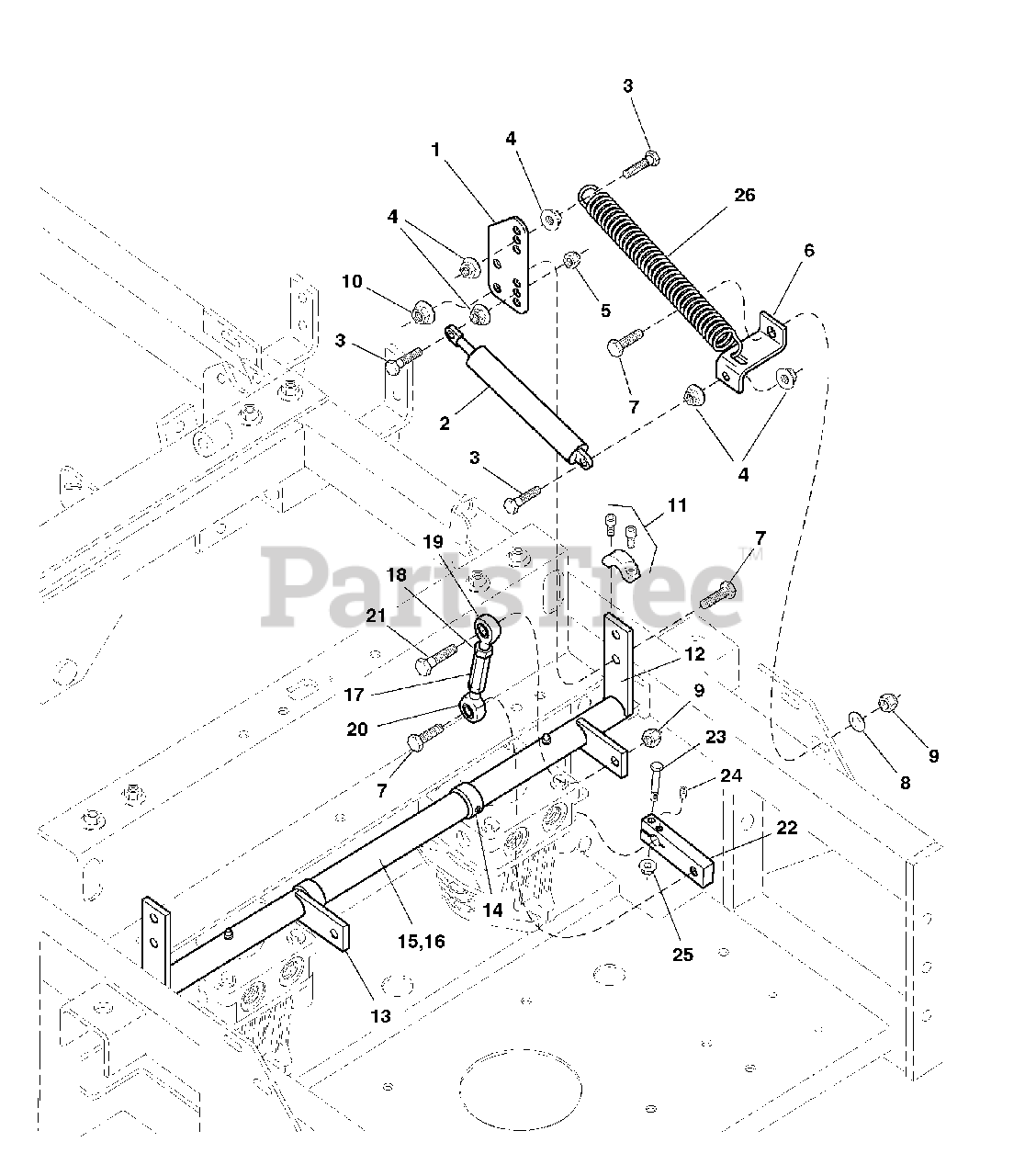

Motion Control Group - Lower (7010mcgl) Parts Diagram

  • Title

1

Simplicity 1845880

DAMPENER MOUNT PLATE
(Superseded to 5045880E)

$

$

Not available

2

Simplicity 5022360SM

DAMPENER

$216.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

6

Simplicity 1845888

DAMPENER MOUNT, Rear
(Superseded to 5045888E)

$

$

Not available

7

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

9

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 8

0

10

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5020594SM

COLLAR, 3/4 Double Split

$19.99

$

In Stock, only 3 left!

0

12

Simplicity 1845264

HYDRO CONTROL LEVER-RH
(Superseded to 5045264E)

$

$

Not available

13

Simplicity 1844952

HYDRO CONTROL LEVER-LH
(Superseded to 5044952E)

$

$

Not available

14

Simplicity 5010116

COLLAR, 3/4 Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 5044950

SHAFT, Control Pivot (hidden by cover)

$

$

Not available

16

Simplicity 5045350SM

COVER, Control Shaft

$

$

Not available

17

Simplicity 5044957SM

HEX ROD, Short

$

$

Not available

18

Simplicity 5025035SM

NUT, Hex, 3/8-24

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5021124SM

BALL JOINT, 3/8

$37.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022047SM

BALL JOINT, 3/8, LH

$

$

Not available

21

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

22

Simplicity 5044956SM

PUMP CONTROL ARM

$

$

Not available

23

Simplicity 5025010X10SM

CAPSCREW, Hex Hd, 1/4-20 x 1-1/4

$3.99

$

In Stock, Qty 9

0

24

Simplicity 50252833

SET SCREW, Cone, 1/4-20 x 3/8

$

$

Not available

25

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 5022397SM

SPRING, Extension

$10.99

$

Usually ships in 2-12 days

0
