ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Pump Drive Group (7010pdg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

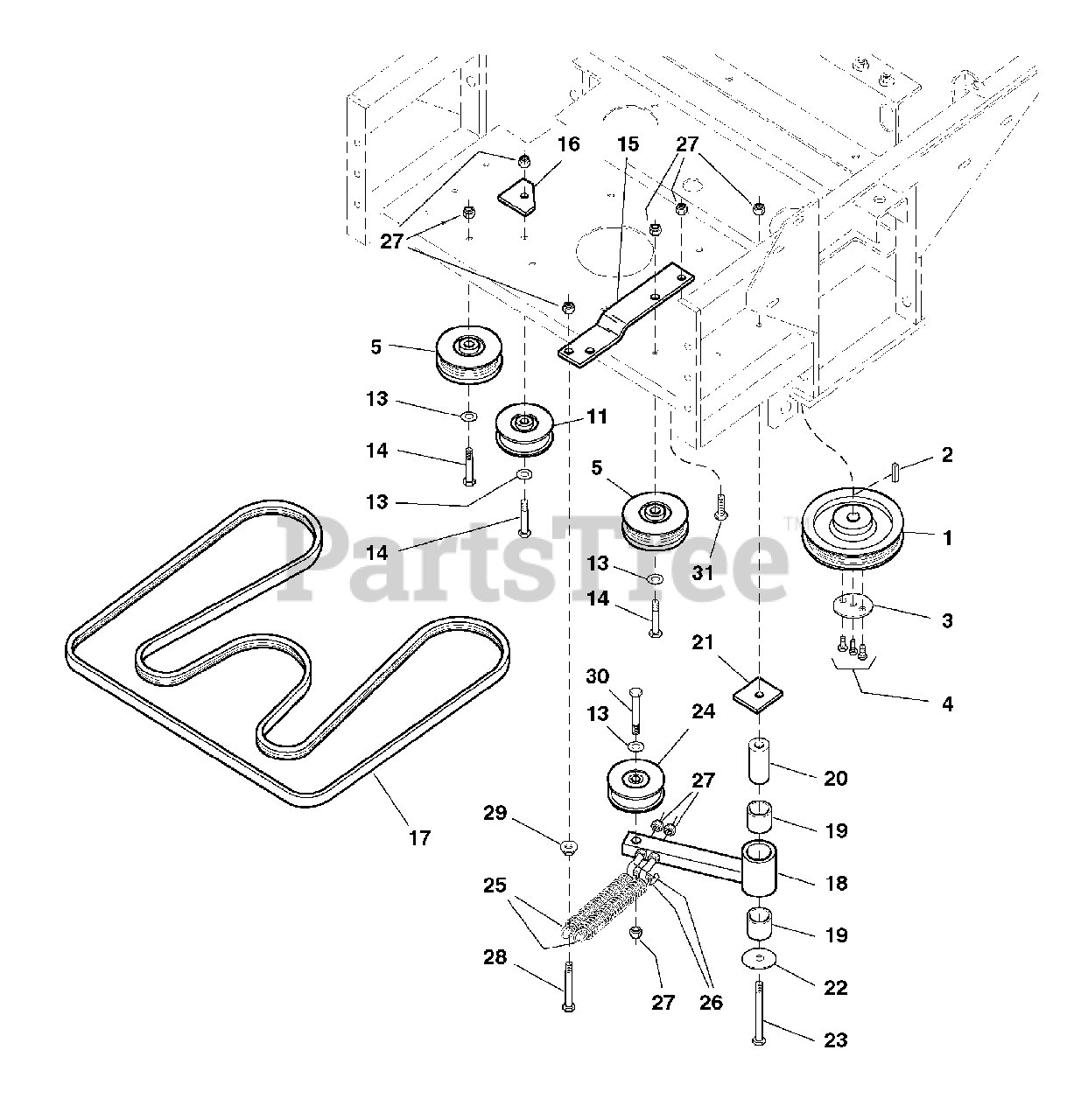

Pump Drive Group (7010pdg) Parts Diagram

  • Title

1

Simplicity 5022155SM

PULLEY, Pump Drive

$130.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022156SM

KEY, 5mm x 25mm

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 5045143SM

RETAINER, Pulley

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025248SM

CAPSCREW, Hex Hd, M6 x 10mm

$

$

Not available

5

Simplicity 5060020SM

IDLER PULLEY ASSEMBLY, Complete (includes Ref 6, 7, 8, 9 & 10)

$119.99

$

Usually ships in 2-12 days

0

6

Simplicity 1705897SM

BEARING, BALL 11/16X1-9/16X15/32, Not Shown (included in Ref 5, 11)

$8.49

$

In Stock, Qty 20+

0

7

Simplicity 5020865

SNAP RING, Not Shown (included in Ref 5, 11)
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 5020880SM

INSERT, Not Shown (included in Ref 5, 11)

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 5021879

INSERT, Shoulder, Not Shown (included in Ref 5, 11)
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 5045073SM

PULLEY, Idler, Grooved, Not Shown (included in Ref 5, 11)

$58.99

$

Usually ships in 2-12 days

0

11

Simplicity 5060021SM

IDLER PULLEY ASSEMBLY, Complete (includes Ref 6, 7, 8, 9 & 12)

$121.99

$

Usually ships in 2-12 days

0

12

Simplicity 5045140

PULLEY, Idler, Smooth, Not Shown (included in Ref 11)
(Superseded to 5045140FS)

$99.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

14

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3-8-16 x 2-1/4

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1845396

SPRING ANCHOR
(Superseded to 5045396E)

$

$

Not available

16

Simplicity 5045144

PULLEY SUPPORT

$

$

Not available

17

Simplicity 5022062SM

BELT, Grooved

$152.99

$

In Stock, only 1 left!

0

18

Simplicity 1845132

IDLER ARM ASSEMBLY, Complete (includes Ref 19)
(Superseded to 5045132E)

$

$

Not available

19

Simplicity 5022157SM

BUSHING, Brass

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 5045135SM

SHAFT, Idler Pivot
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

21

Simplicity 5045090SM

SPACER, Idler Pivot

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025305SM

RETAINER, Idler Arm

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 5060040SM

IDLER PULLEY ASSEMBLY, Complete (incudes Ref 6, 7, 8, 9 & 12)

$180.99

$

Usually ships in 2-12 days

0

25

Simplicity 5020807SM

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

26

Snapper 5025290SM

SCREW HOOK

$5.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 8

0

28

Simplicity 5025013X20SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

29

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025013X22SM

CAPSCREW, Hex Hd, 3/8-16 x 2-3/4

$4.49

$

In Stock, Qty 5

0

31

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0
