ZT 26520 (7800766-01) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck - Housing and Rollers Group (7501702C) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

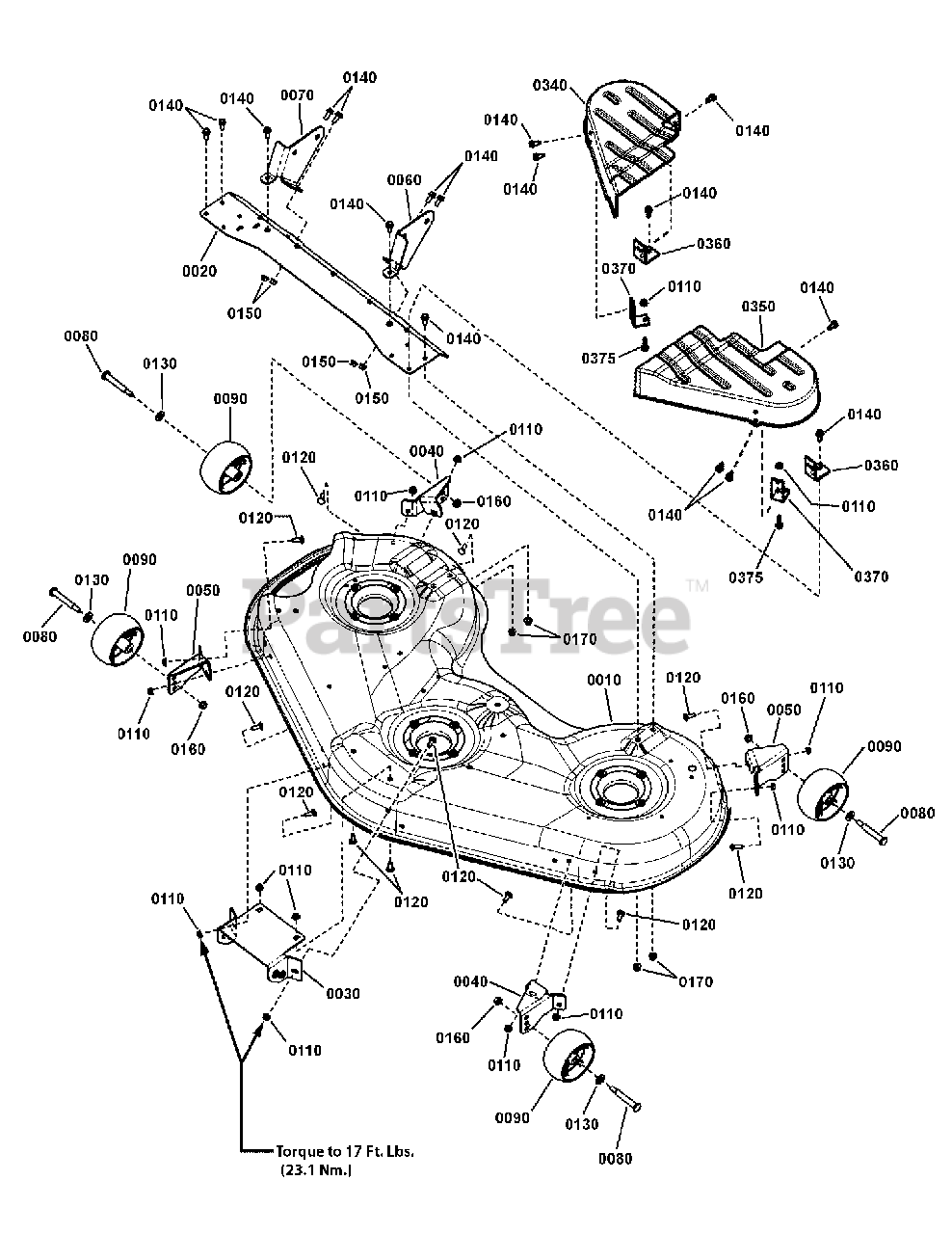

52" Mower Deck - Housing and Rollers Group (7501702C) Parts Diagram

  • Title

0010

Simplicity 1735735C

HOUSING, 52" Mower
(Superseded to 1735735CYP)

$853.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1736070BM

SUPPORT, Rear Cross
(Superseded to 1736070BMYP)

$82.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1736071BM

HITCH, Front, 46/52 Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1736074BZ

BRACKET, Gauge Wheel, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 3 left!

0

0050

Simplicity 1736075BZ

BRACKET, Gauge Wheel, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, only 1 left!

0

0060

Simplicity 1736397BM

BRACKET, LH Rear 46/52 ZTR - Black
(Superseded to 1736397BMYP)

$19.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1736398BM

BRACKET, RH Rear 46/52 ZTR - Black
(Superseded to 1736398BMYP)

$19.99

$

In Stock, only 1 left!

0

0080

Simplicity 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

In Stock, Qty 20+

0

0090

Simplicity 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 20+

0

0110

Simplicity 80002728

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

Note: (Was 1931277)

$5.49

$

In Stock, Qty 20+

0

0120

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0130

Simplicity 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0140

Simplicity 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black
(Superseded to 704146)

Note: (Was 7091524)

$3.99

$

In Stock, Qty 20+

0

0150

Simplicity 80002732

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

Note: (Was 1960686)

$3.49

$

In Stock, Qty 7

0

0160

Simplicity 80003660

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

Note: (Was 1960687)

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 80003675

NUT, 5/16-18 Hex Center Lock, GR 5 or B
(Superseded to 703164)

Note: (Was 7091575)

$3.49

$

In Stock, Qty 10

0

0340

Simplicity 7104696

COVER, Spindle, 46"/52" Deck RH 285Z
(Superseded to 7104696YP)

$55.99

$

Usually ships in 2-12 days

0

0350

Simplicity 7104697

COVER, Spindle, 46"/52" Deck LH 285Z
(Superseded to 7104697YP)

$55.99

$

In Stock, only 1 left!

0

0360

Simplicity 7301133BM

BRACKET, Rear Deck Cover Support 285Z
(Superseded to 7301133BMYP)

$14.99

$

Usually ships in 2-12 days

0

0370

Simplicity 7301134BM

BRACKET, 46"/52" Cover Mounting
(Superseded to 7301134BMYP)

$18.99

$

Usually ships in 2-12 days

0

0375

Simplicity 1960373

SCREW, 5/16-18 x 1-1/4" Hex Washer Face Self-Tap
(Superseded to 704146)

Note: (Was 7091524)

$3.99

$

In Stock, Qty 20+

0
