ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Main Frame & Front Suspension Group (7087mfsg) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

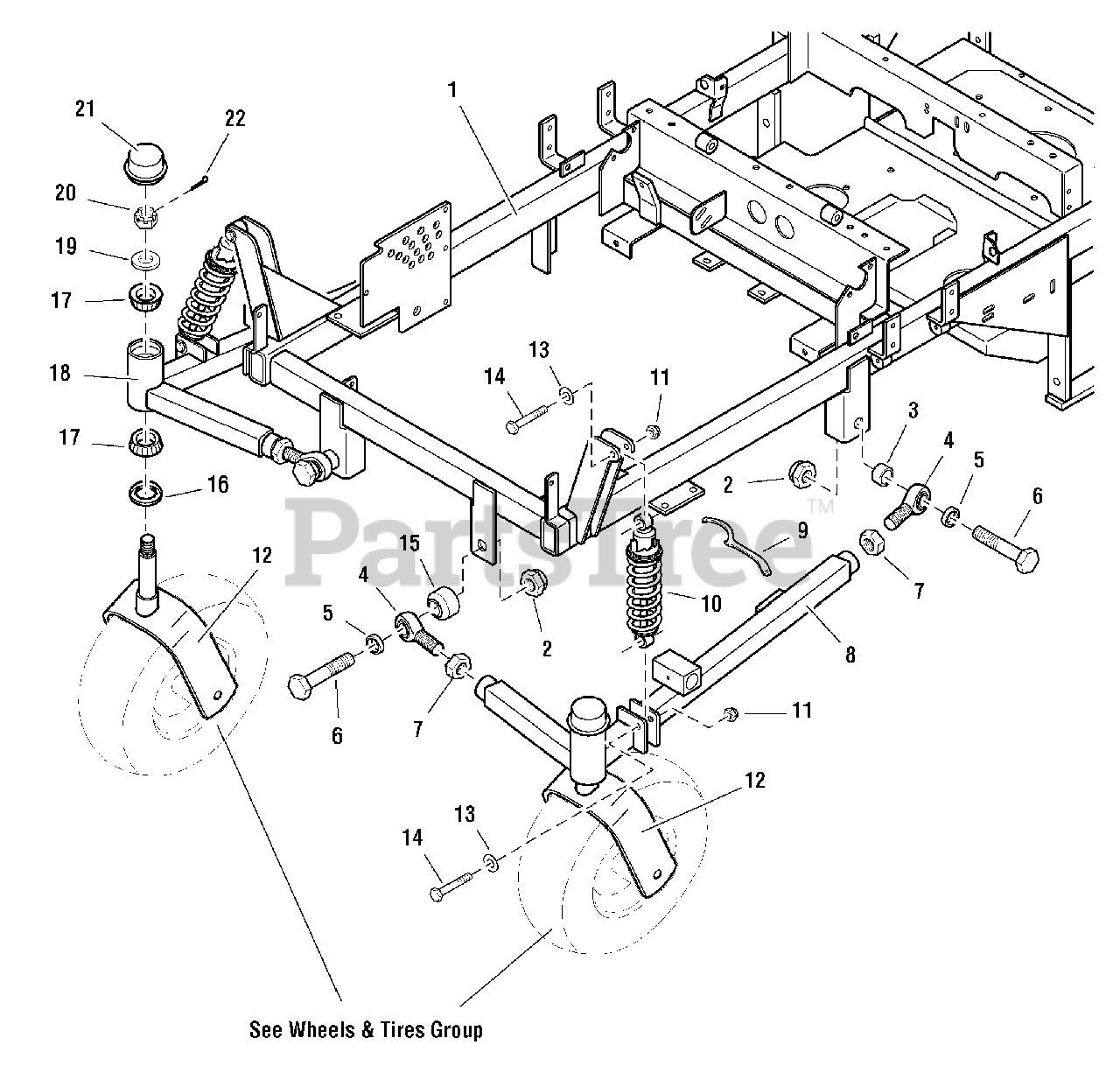

Main Frame & Front Suspension Group (7087mfsg) Parts Diagram

  • Title

1

Simplicity 5047952CSM

* MAIN FRAME

$

$

Not available

2

Simplicity 5025284SM

NUT, Hex, Nylon Lock, 3/4-16

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 5046092SM

SPACER, .76 x 1.00 x .50

$5.99

$

In Stock, only 1 left!

0

4

Simplicity 5022039SM

BALL JOINT, 3/4-16

$37.99

$

Usually ships in 2-12 days

0

5

Simplicity 5047461SM

SPACER, .76 x 1.00 x .25

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 502526528

CAPSCREW, Hex Hd, 3/4-16 x 3-1/2

$

$

Not available

7

Simplicity 5025093SM

NUT, Hex, Jam, 3/4-16

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5047743CSM

SUSPENSION ARM - LH

$302.99

$

Usually ships in 2-12 days

0

9

Simplicity 5022853SM

SPANNER WRENCH

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022842SM

SHOCK & SPRING ASSEMBLY

$216.99

$

In Stock, only 2 left!

0

11

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

12

Simplicity 5047049CSM

CASTER TIRE MOUNT
(Superseded to 5600098SM)

$176.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

14

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5046093SM

SPACER, .75 x 1.50 x 1.00

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021072SM

GREASE SEAL

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 5020884SM

BEARING, Tapered Roller

$25.99

$

In Stock, only 3 left!

0

18

Simplicity 5047742CSM

SUSPENSION ARM - RH

$267.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, only 3 left!

0

20

Simplicity 5025104SM

NUT, Hex, Slotted, 3/4-16
(Superseded to 1960387SM)

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 5021073SM

CAP

$7.49

$

In Stock, Qty 7

0

22

Simplicity 5025203X10SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0
