ZT 3000 B 2446 (5900773) - Simplicity ZT 3000 Series 46" Zero-Turn Mower, 24hp 46" Mower Deck Group - Rollers Parts Diagram

ZT 3000 Series 46" Zero-Turn Mower, 24hp

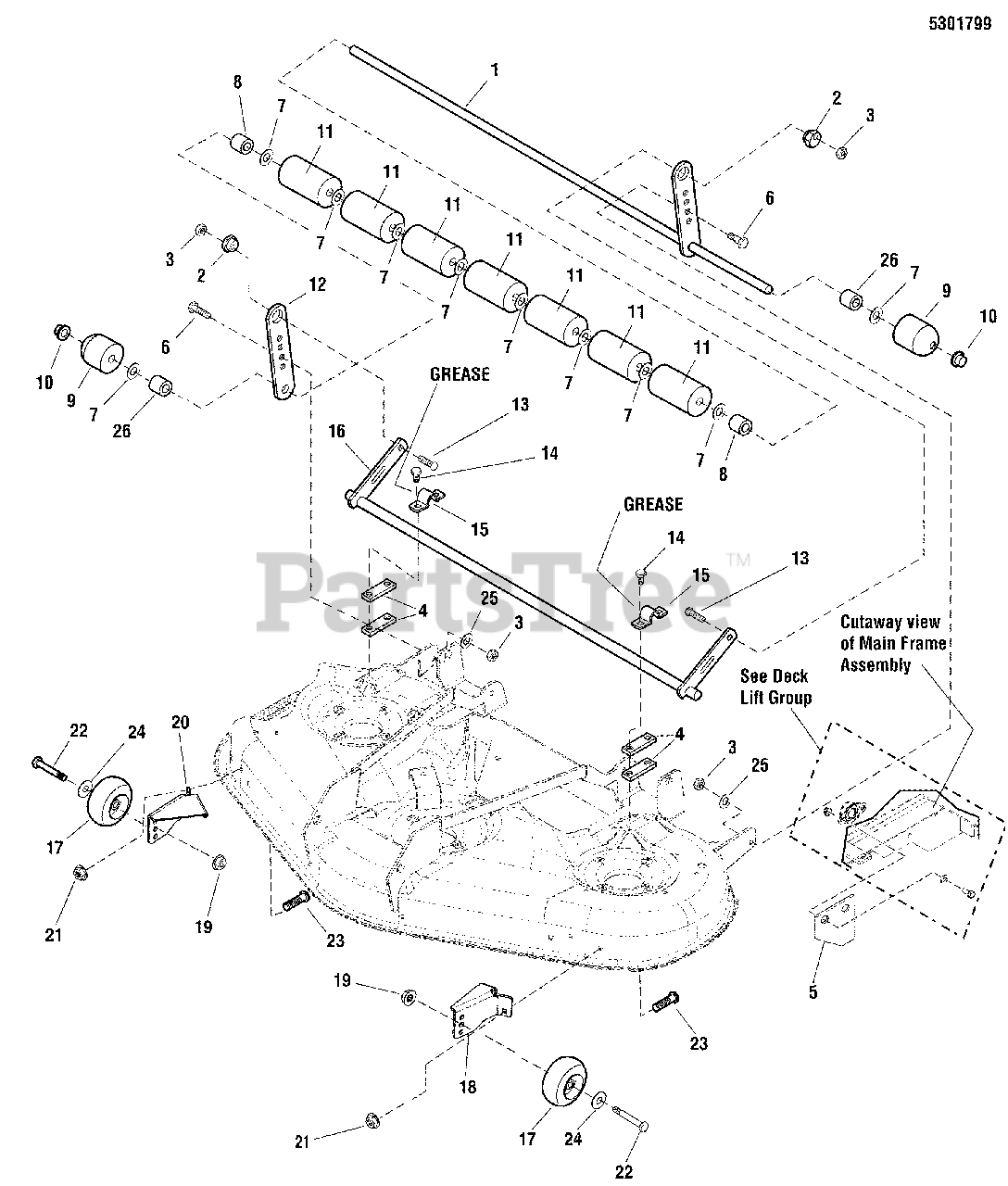

46" Mower Deck Group - Rollers Parts Diagram

  • Title

1

Simplicity 5405648CSM

WELD, SHAFT, ROLLER, 46 - ORG
(Superseded to 5405648CYP)

$134.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 11

0

3

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 19

0

4

Simplicity 5405652CSM

PLATE, SPACER, ROLLER 46 - ORG

$

$

Not available

5

Simplicity 5405683CSM

PLATE, DECK STOP

$

$

Not available

6

Simplicity 5025390X10SM

BOLT, 3/8-16 X 1-1/4, FLANGE
(Superseded to 770137)

$4.49

$

In Stock, only 4 left!

0

7

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 16

0

8

Simplicity 1709195SM

SPACER, .876 OD X .666 ID X 1.25 LG

$5.99

$

In Stock, Qty 13

0

9

Simplicity 1722036SM

ROLLER-0.650ID 2.50OD ROUNDED BLACK POLY

$7.99

$

In Stock, only 4 left!

0

10

Simplicity 1960520SM

NUT-PUSH FOR .625 DIA STUD CAPPED BLK
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1668513SM

ROLLER-0.652ID 2.50 OD 4.10LG BLACK POLY

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 5405605CSM

BAR, ROLLER - ORANGE
(Superseded to 5405605CYP)

$17.99

$

Usually ships in 2-12 days

0

13

Simplicity 7091945SM

RHSSNB, 3/8C X1-1/2 FLANGE GR5 YZ
(Superseded to 7091945YP)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665374SM

STRAP, ROCKER SHAFT
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

16

Simplicity 5405646CSM

WELD, SHAFT, ROLLER, 46 - ORG

$

$

Not available

17

Simplicity 1736896SM

WHEEL, GAUGE BLACK POLY 5" DIA
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 19

0

18

Simplicity 1736075ASM

BRKT, GAUGE WHEEL, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, only 1 left!

0

19

Simplicity 1960687SM

NUT-HEX FLANGE 3/8-16 ESNA BLK
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1736074ASM

BRKT, GAUGE WHEEL, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 2 left!

0

21

Simplicity 1931277SM

NUT-HEX FLANGE 5/16-18, WHIZ LK SM, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 1736539SM

BOLT-SHLDR 3/8-16X3.41 .750 THRD YELLOW
(Superseded to 1736539YP)

$8.99

$

In Stock, Qty 17

0

23

Simplicity 1931334SM

BOLT-RD HD SH SQ NK 5/16-18X0.875 G5 BLK
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

24

Simplicity 1960170SM

WASHER-0.500(0.51IDX1.00ODX.10THK) BLK
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 5025293SM

WASHER, 3/8 GD9 FLAT

$3.99

$

In Stock, Qty 7

0

26

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, only 3 left!

0
