ZT 3000 B 2450 (5900662) - Simplicity ZT 3000 Series 50" Zero-Turn Mower, 24hp Electrical Group Parts Diagram

ZT 3000 Series 50" Zero-Turn Mower, 24hp

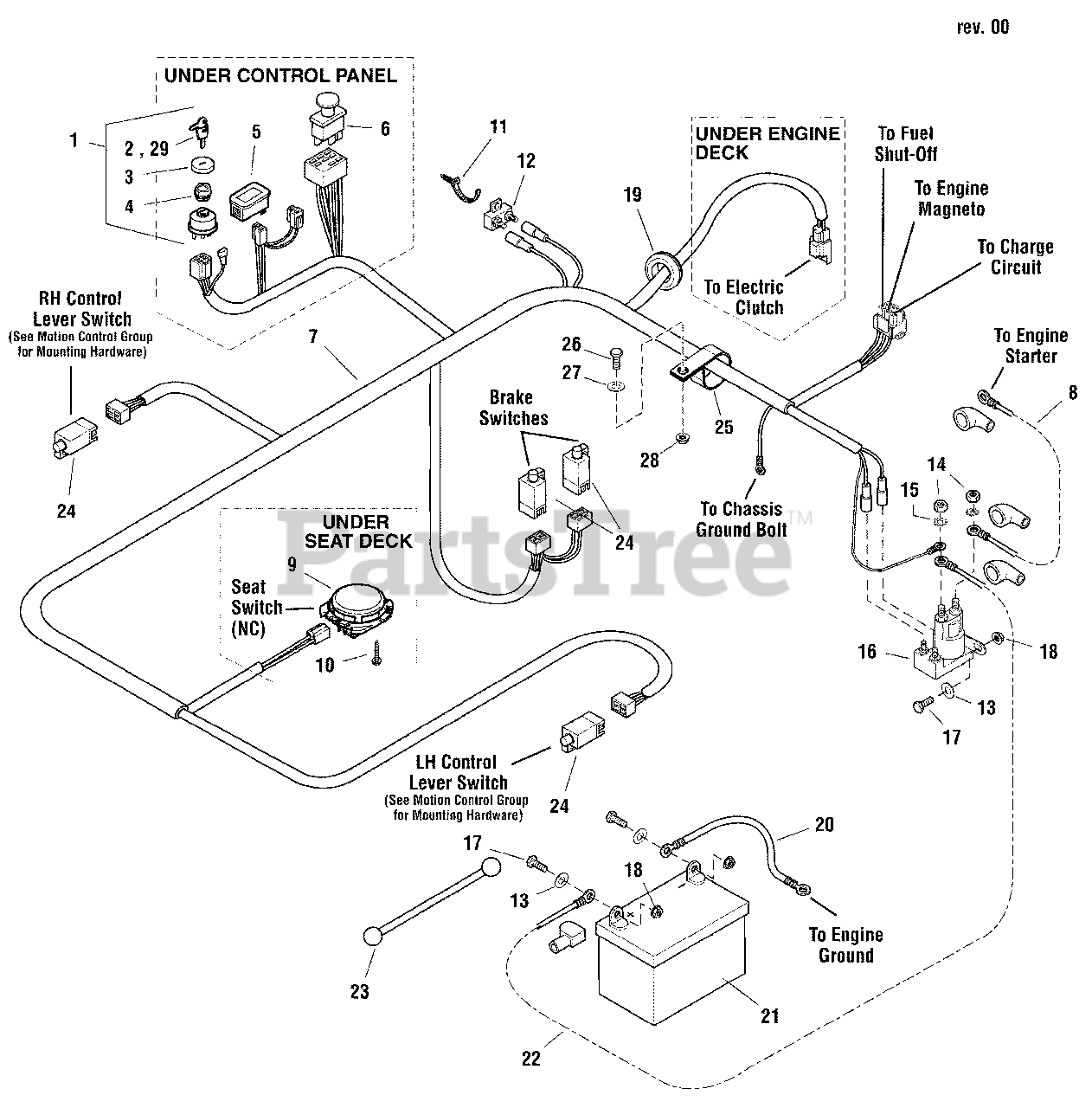

Electrical Group Parts Diagram

  • Title

1

Simplicity 1737853SM

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

2

Simplicity 1737836SM

KEYS. BLISTER PK KIDS+MWRS DON'T MIX, USA Models Only
(Superseded to 1737836YP)

Note: (USA MODELS ONLY)

$20.99

$

In Stock, only 1 left!

0

3

Simplicity 5022790SM

COVER (SV)
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5022791SM

PLASTIC NUT (SV)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1725523SM

HOUR METER, DIGITAL
(Superseded to 1731184SM)

Note: (Includes Retaining Ring)

$64.99

$

In Stock, only 2 left!

0

6

Simplicity 5022180SM

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5402849SM

WIRE HARNESS, CONSUMER Z

$323.99

$

In Stock, only 1 left!

0

8

Simplicity 5023488SM

BATTERY CABLE, POSITIVE, 22"

$27.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716368SM

SWITCH, SEAT, GRAY, NC (BOLT IN)

$20.99

$

In Stock, only 1 left!

0

9

Snapper 5100541SM

SWITCH, SEAT, GRAY, NC (TWIST IN)

$

$

Not available

10

Simplicity 1960536SM

BOLT, HEX WASHER HEAD PLASTITE, 1/4 X 1/2

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021199SM

CABLE TIE-PUSH MOUNT

$5.99

$

In Stock, only 1 left!

0

12

Simplicity 5023222SM

CIRCUIT BREAKER, 20A

$23.99

$

In Stock, only 1 left!

0

13

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 5023216SM

NUT, HEX JAM, 5/16-24 (SV)

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023217SM

WASHER, LIGHT LOCK, 5/16 (SV)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5 YZ

$3.99

$

In Stock, Qty 13

0

18

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 5023236SM

GROMMET, 3/4

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 5047690SM

BATTERY CABLE, NEGATIVE, 14"

$16.99

$

In Stock, only 1 left!

0

21

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

22

Simplicity 5047136

BATTERY CABLE, POSITIVE, 15"
(Superseded to 5047136SM)

$22.99

$

In Stock, only 1 left!

0

23

Simplicity 1722009SM

STRAP-BLACK RUBBER

$10.99

$

In Stock, only 1 left!

0

24

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 10

0

25

Simplicity 5023263SM

CLAMP, VINYL

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 4 left!

0

27

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

28

Simplicity 5025394SM

NUT, 3/8-16 HEX, NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1737837SM

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP, CE MODELS ONLY
(Superseded to 1737837YP)

Note: (CE MODELS ONLY)

$21.99

$

Usually ships in 2-12 days

0
