ZT 3000 B 2450 (5900662) - Simplicity ZT 3000 Series 50" Zero-Turn Mower, 24hp Lift Group Parts Diagram

ZT 3000 Series 50" Zero-Turn Mower, 24hp

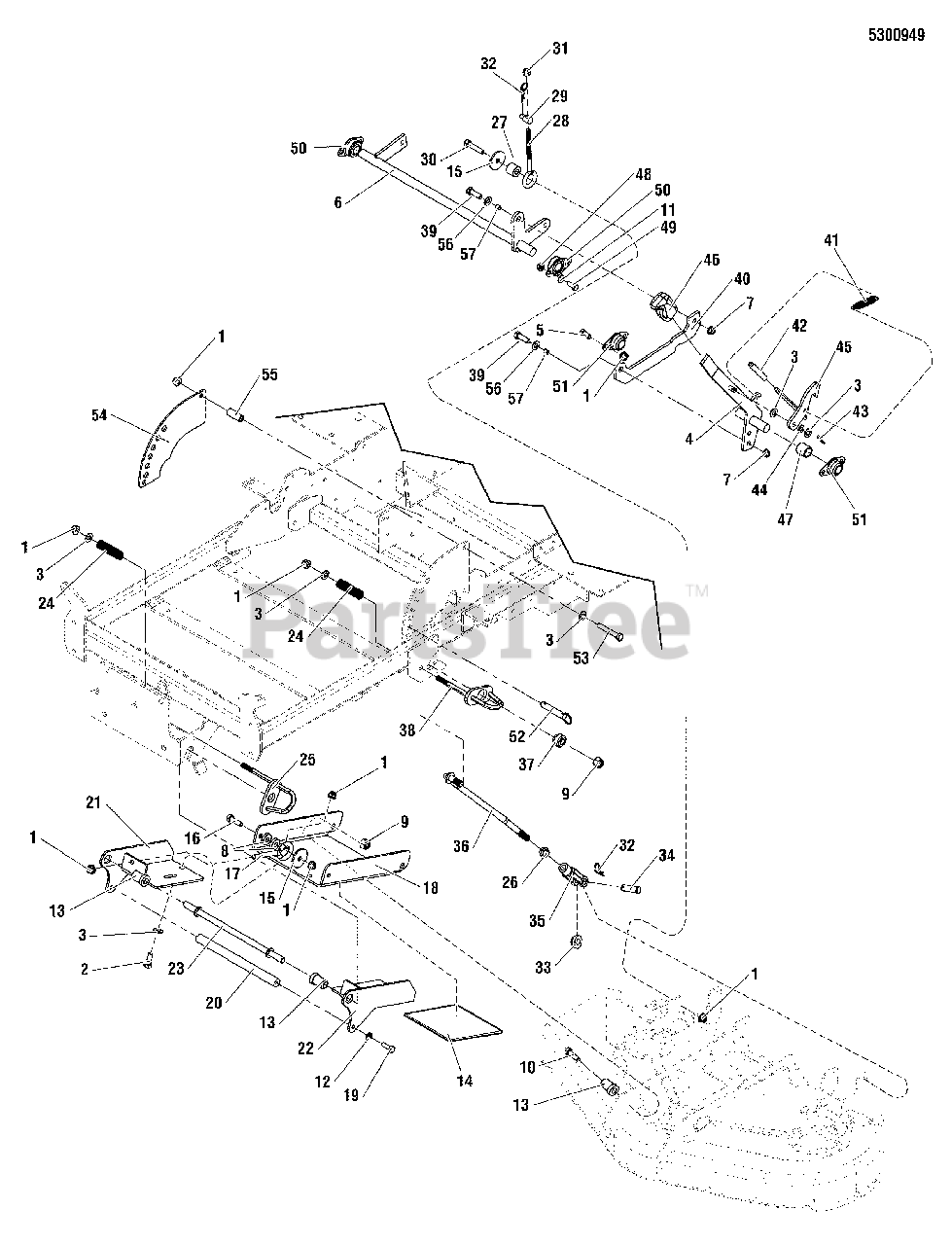

Lift Group Parts Diagram

  • Title
1

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

4

Simplicity 5403057CSM

WELD, HANDLE, DECK LIFT - ORG

$59.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5403041CSM

WELD, SHAFT, REAR DECK LIFT - ORG

$61.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, only 4 left!

0

9

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025018X20SM

BOLT, 1/2-20 X 2-1/2" GD5 YZ

$6.99

$

In Stock, only 1 left!

0

11

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5100144SM

SPACER, .53 X 1.00 X 1.00

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 5101008SM

SAFETY WALK, 4.50 X 3.50

$7.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5", 1 EYE

$9.49

$

In Stock, only 1 left!

0

18

Simplicity 5400382CSM

PLATE, DECK HANGER SUPPORT - ORG

$90.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

20

Simplicity 5100135SM

SHAFT, HANDLE, DECK MOUNT

$32.99

$

Usually ships in 2-12 days

0

21

Simplicity 5400392CSM

WELD, DECK HANGER, RH - ORG

$48.99

$

Usually ships in 2-12 days

0

22

Simplicity 5400391CSM

WELD, DECK HANGER, LH - ORG

$33.99

$

Usually ships in 2-12 days

0

23

Simplicity 5100177SM

SHAFT, HANGER

$8.99

$

Usually ships in 2-12 days

0

24

Simplicity 5021102SM

SPRING, COMPRESSION

$7.49

$

Usually ships in 2-12 days

0

25

Simplicity 5400401CSM

WELD, QUICK RELEASE HANDLE - ORG

$16.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 5047125SM

SPACER, .39 X 1.00 X .88

$7.99

$

In Stock, Qty 8

0

28

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

Usually ships in 2-12 days

0

29

Simplicity 5045947SM

ADJUSTER, BRAKE LINKAGE

$26.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, Qty 5

0

31

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 10

0

32

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 2 left!

0

33

Simplicity 5048258SM

BUSHING, DECK SUPPORT

$11.99

$

In Stock, Qty 6

0

34

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

Usually ships in 2-12 days

0

36

Simplicity 5100170SM

ROD, DECK LIFT LINKAGE

$31.99

$

Usually ships in 2-12 days

0

37

Simplicity 5100351SM

BUSHING, REAR QUICK TACH

$5.99

$

In Stock, only 2 left!

0

38

Simplicity 5400839CSM

WELD, QUICK RELEASE HANDLE, REAR - ORG.

$17.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$3.99

$

In Stock, only 3 left!

0

40

Simplicity 5048733CSM

LINK,DECK LIFT SHAFT

$

$

Not available

41

Simplicity 5020639SM

SPRING, EXTENSION

$31.99

$

Usually ships in 2-12 days

0

42

Simplicity 5023198SM

COVER, VINYL HANDLE

$4.49

$

Usually ships in 2-12 days

0

43

Simplicity 5025203X6SM

PIN, COTTER, 1/8" X 3/4

$3.99

$

In Stock, only 1 left!

0

44

Simplicity 5023202SM

WASHER,WAVE,M10

$5.49

$

Usually ships in 2-12 days

0

45

Simplicity 5048884CSM

WELD, DECK LOCK

$

$

Not available

46

Simplicity 5100171SM

GRIP, BLACK FLEXIBLE

$13.99

$

In Stock, only 1 left!

0

47

Simplicity 5048335SM

SPACER, .76 X 1.00 X 1.00

$7.99

$

Usually ships in 2-12 days

0

48

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

49

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

50

Simplicity 5100561SM

BEARING, BRONZE FLANGE, 3/4"

$14.99

$

In Stock, only 2 left!

0

51

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 7

0

52

Simplicity 5100179SM

HITCH PIN ASSEMBLY, 1/2" X 2.50"

$29.99

$

Usually ships in 2-12 days

0

53

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

54

Simplicity 5400370CSM

PLATE, DECK HEIGHT- INNER -ORG

$15.99

$

Usually ships in 2-12 days

0

55

Simplicity 5048264SM

SPACER, .39 X .63 X 1.50

$5.99

$

Usually ships in 2-12 days

0

56

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

57

Simplicity 5101448SM

SPACER, .38 X .50 X .38, YZ
(Superseded to 5101448YP)

$7.49

$

Usually ships in 2-12 days

0
