ZT 4000 B 2444 (5900707) - Simplicity ZT 4000 Series 44" Zero-Turn Mower, 24hp Briggs & Stratton 44" & 48" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

ZT 4000 Series 44" Zero-Turn Mower, 24hp Briggs & Stratton

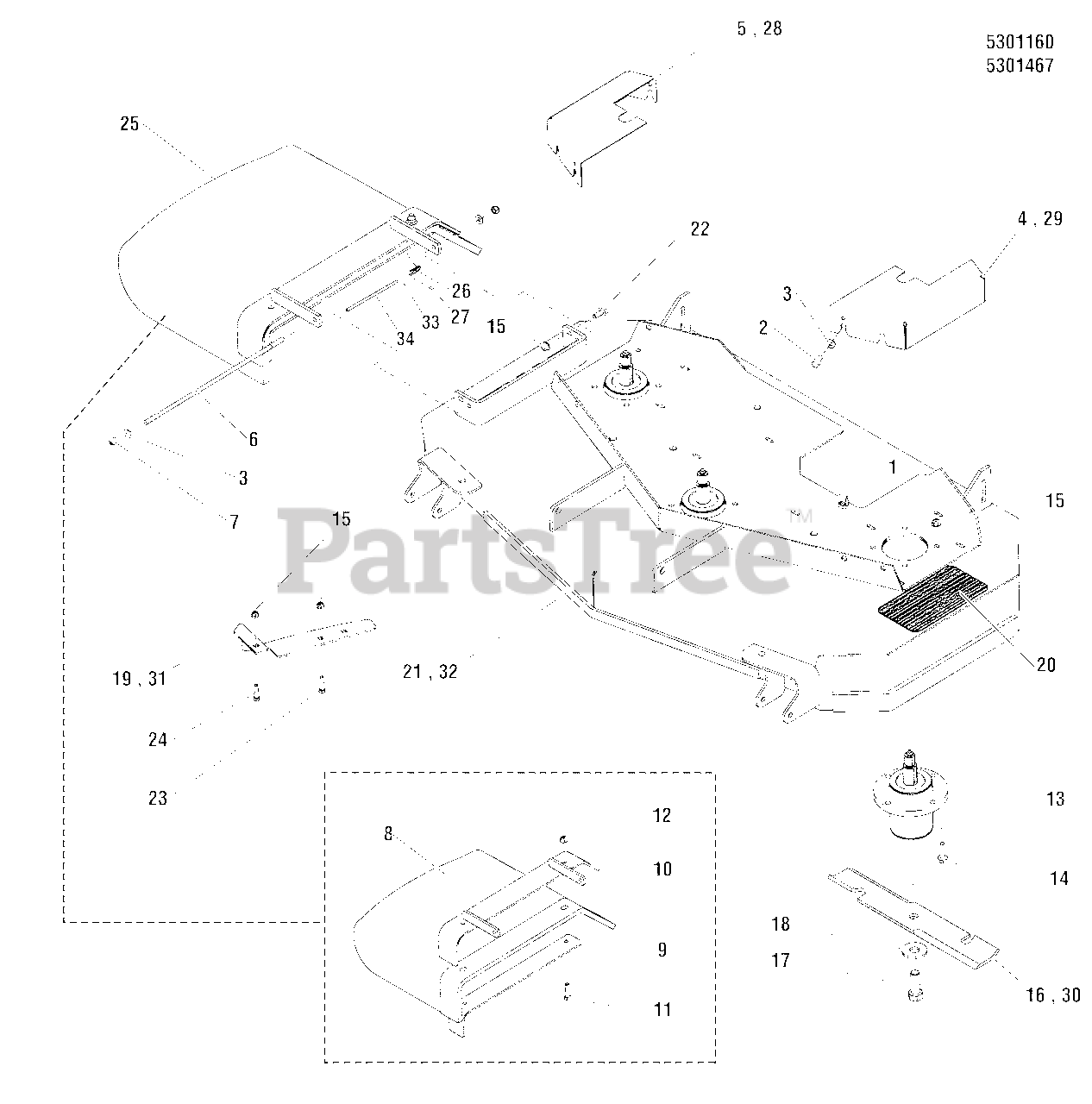

44" & 48" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

  • Title

1

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2 DEEP

$5.99

$

In Stock, Qty 10

0

2

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

3

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5061831CSM

GUARD, 44" MOWER DECK, LH - ORG

Note: (44" Models Only)

$27.99

$

Usually ships in 2-12 days

0

5

Simplicity 5061832CSM

GUARD, 44" MOWER DECK, RH - ORG

Note: (44" Models Only)

$27.99

$

Usually ships in 2-12 days

0

6

Simplicity 5042555SM

ROD, BRAKE LINKAGE

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

8

Simplicity 5402404SM

CHUTE, DISCHARGE, RUBBER, 44/48/52

$170.99

$

Usually ships in 2-12 days

0

9

Simplicity 5402362A

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

10

Simplicity 5413404AYP

WELD, FRAME CHUTE, 44/48/52 - BLK

$68.99

$

In Stock, only 1 left!

0

11

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 19

0

13

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, Qty 5

0

15

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

16

Simplicity 5061827S

BLADE, 15" (SET OF THREE)

Note: (44" Models Only)

$72.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5025159SM

WASHER, 5/8 USS
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 15

0

19

Simplicity 5401283A

WELD, DISCHARGE BAFFLE, 44" - BLK
(Superseded to 5401283AYP)

Note: (44" Models Only)

$49.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 5600218SM

DECK SHELL W/DECALS, 44, IS500Z (SV)

Note: (44" Models Only)

$2909.99

$

Usually ships in 2-12 days

0

22

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

23

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE

$3.99

$

In Stock, Qty 9

0

24

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4", CARRIAGE

$3.99

$

Usually ships in 2-12 days

0

25

NO LONGER AVAILABLE - ORDER INDIVIDUAL REPLACEMENT PARTS

Note: (Includes Ref. Nos 8 - 12)

$

$

Not available

26

Simplicity 5023385SM

SPRING, TORSION

$8.49

$

Usually ships in 2-12 days

0

27

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5408162CSM

GUARD, DECK, RH
(Superseded to 5408162CYP)

Note: (48" Models Only)

$55.99

$

Usually ships in 2-12 days

0

29

Simplicity 5049882CSM

GUARD, DECK, LH

Note: (48" Models Only)

$17.99

$

Usually ships in 2-12 days

0

30

Simplicity 5101986S

BLADE, 16.25 X.25 X 2.5, 1 X 3.5 (SET OF 3)
(Superseded to 5101986SYP)

Note: (48" Models Only)

$

$

Not available

31

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

Note: (48" Models Only)

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 5600203SM

DECK SHELL W/DECALS, 48, ZT4000 (SV)

Note: (48" Models Only / S/N: 2014646405 & Below)

$2678.99

$

Usually ships in 2-12 days

0

32

Simplicity 5600550SM

DECK SHELL W/DECALS, 48, ZT4000 (SV)
(Superseded to 5600550YP)

Note: (48" Models Only / S/N: 2014646406 & Above)

$2108.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025164SM

WASHER, 5/16 FENDER

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 5050086X8SM

TUBE, 1/2 X 3/8 BLACK POLY, 8.00 LG

$8.99

$

In Stock, only 1 left!

0
