ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2000-03) Frame Assembly Parts Diagram

48" Zero-Turn Mower

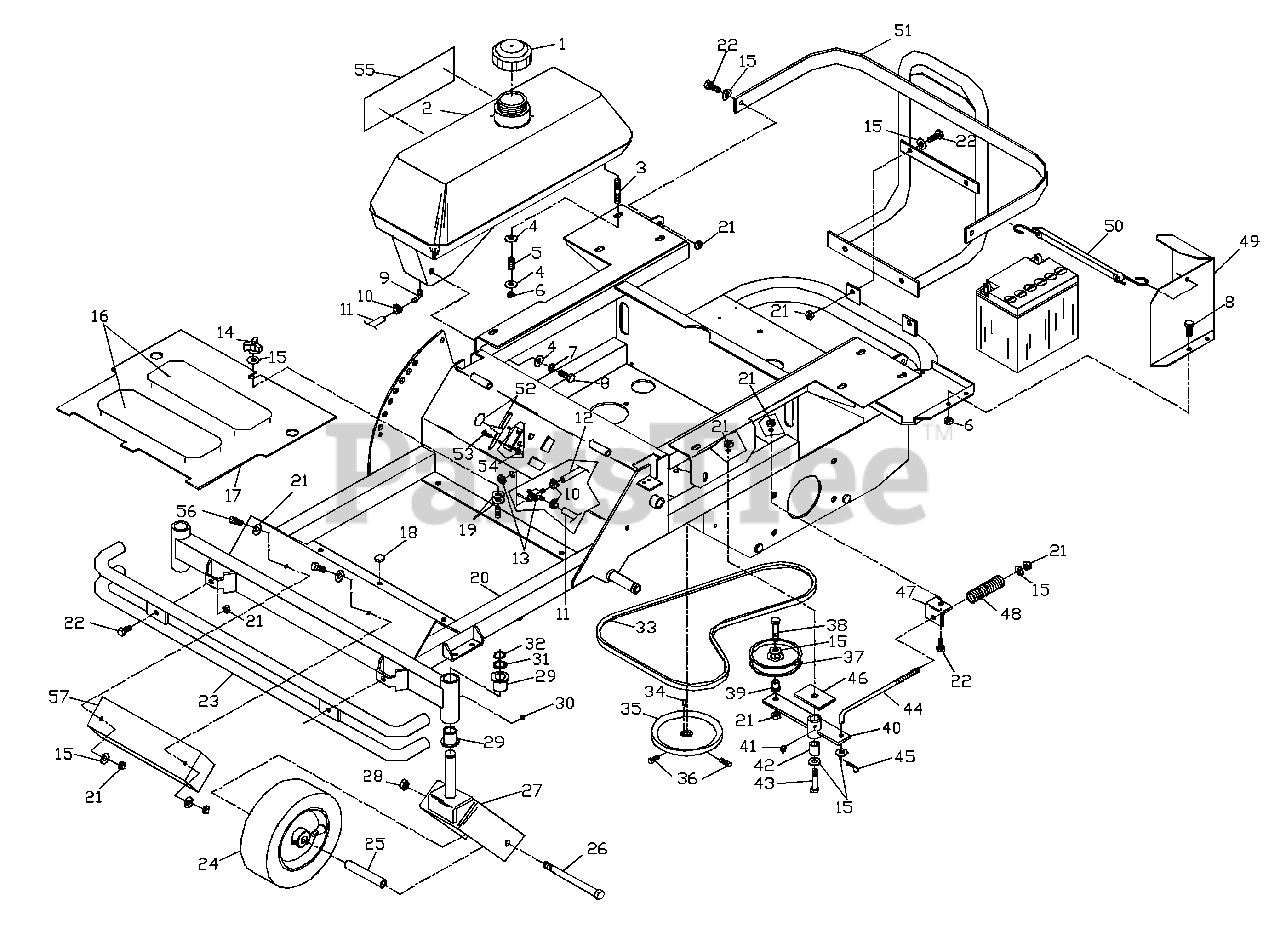

Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539914363

FUEL CAP

$

$

Not available

2

Husqvarna 539104585

FUEL TANK

$

$

Not available

3

Husqvarna 539102502

5/16C STUD

$10.99

$

In Stock, Qty 5

0

4

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990187

5/16 LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102650

90 DEG. HOSE BARB

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 539102680

FUEL LINE, TANK
(Superseded to 539115707)

$8.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102681

FUEL LINE, ENGINE

$

$

Not available

13

Husqvarna 539102679

FUEL VALVE

$53.99

$

In Stock, only 2 left!

0

14

Husqvarna 539102070

KNOB

$7.49

$

In Stock, Qty 13

0

15

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 539104590

FOOTPLATE
(Superseded to 539103242)

$

$

Not available

18

Husqvarna 539102587

BUMPER, RUBBER

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 539102593

3/8 DISC WASHER

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104611

FRAME W/DECALS

$

$

Not available

21

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

22

Husqvarna 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539104595

BUMPER, FRONT

$

$

Not available

24

Husqvarna 539104594

CASTER TIRE (COMPLETE)
(Superseded to 539106993)

$121.99

$

In Stock, Qty 15

0

24

Husqvarna 539103495

TIRE

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104600

RIM

$

$

Not available

24

Husqvarna 539917785

ROLLER BEARING 1"

$

$

Not available

24

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102484

FLANGED BEARING

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539103496

ROLLER BEARING 2 1/4"

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101872

SPACER

$31.99

$

In Stock, only 2 left!

0

26

Husqvarna 539101907

HCS 1/2C X 5 1/2

$9.99

$

In Stock, Qty 12

0

27

Husqvarna 539104589

YOKE WELDMENT

$278.99

$

In Stock, Qty 5

0

28

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539101232

FLANGE BUSHING

$6.49

$

In Stock, Qty 11

0

30

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539923787

MACHINERY BUSHING

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539101151

7/8" RETAINING RING

$

$

Not available

33

Husqvarna 539103241

PUMP BELT

$42.99

$

In Stock, only 1 left!

0

34

Husqvarna 539101177

KEY 5 MM SQ. X 25 MM

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539101176

PULLEY

$

$

Not available

36

Husqvarna 539102717

5/16C X 5/8 SQ. HEAD

$3.99

$

In Stock, Qty 6

0

37

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

38

Husqvarna 539990730

HCS 3/8C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

40

Husqvarna 539103252

IDLER ARM WELDMENT

$70.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539103300

45 DEG. ZERK

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539103429

PIVOT BUSHING

$

$

Not available

43

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539102337

TENSION ROD

$

$

Not available

45

Husqvarna 539976988

#2 HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

47

Husqvarna 539104533

TENSION BRACKET

$

$

Not available

48

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

49

Husqvarna 539102512

BATTERY GUARD W/DECALS

$

$

Not available

50

Husqvarna 539102501

BATTERY STRAP

$

$

Not available

51

Husqvarna 539103582

ENGINE GUARD W/DECALS

$

$

Not available

52

Husqvarna 539103275

THROTTLE CABLE

$34.99

$

In Stock, only 1 left!

0

53

Husqvarna 539990411

#10-24 X 1/2 HCS

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539976977

#10-24 NYLOC NUT

$

$

Not available

55

Husqvarna 539104805

DECAL, ZTH 4817

$

$

Not available

55

Husqvarna 539104806

DECAL, ZTH 4819

$

$

Not available

56

Husqvarna 539990629

HCS 3/8C X 2 1/4 GD5 (19 HP ONLY)
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539104614

WEIGHT BLOCK (19 HP ONLY)

$

$

Not available
