ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2000-03) Hydraulic Assembly Parts Diagram

48" Zero-Turn Mower

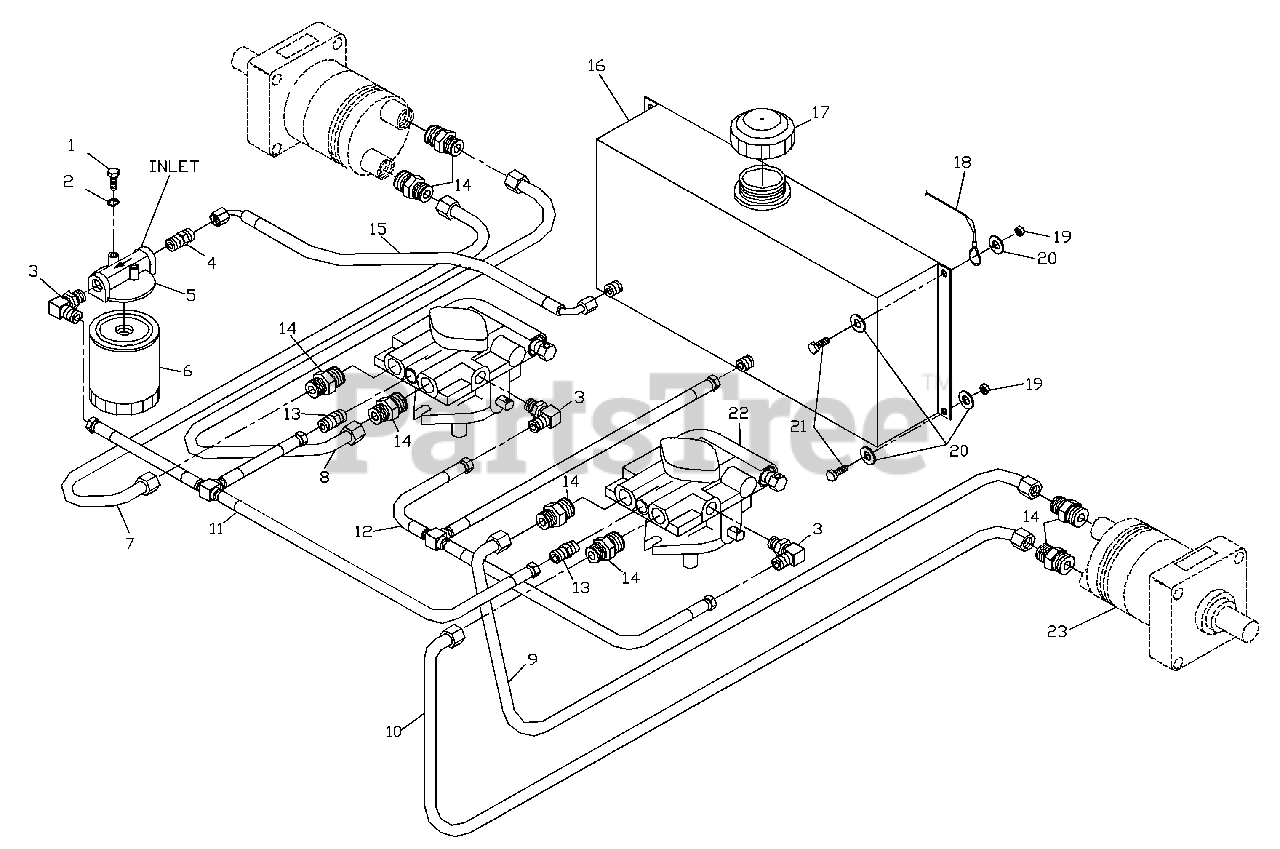

Hydraulic Assembly Parts Diagram

  • Title

1

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 539990052

1/4" LOCKWASHER

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101238

F6801-6-6-0 90 DEG. ELBOW

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539103316

F6400-6-6-0 STRAIGHT FITTING

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 11

0

7

Husqvarna 539103318

RIGHT OUTSIDE TUBE

$

$

Not available

8

Husqvarna 539103319

RIGHT INSIDE TUBE

$

$

Not available

9

Husqvarna 539103320

LEFT INSIDE TUBE

$

$

Not available

10

Husqvarna 539103321

LEFT OUTSIDE TUBE

$

$

Not available

11

Husqvarna 539103314

SUCTION TEE ASSEMBLY

$42.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539103315

RETURN TEE ASSEMBLY

$

$

Not available

13

Husqvarna 539101236

F6400-6-4-0 STRAIGHT FITTING

$

$

Not available

14

Husqvarna 539101237

F6400-8-8-0 STRAIGHT FITTING

$12.99

$

In Stock, only 3 left!

0

15

Husqvarna 539103326

TANK HOSE

$24.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103336

TANK, HYDRAULIC

$358.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101202

HYDRAULIC CAP

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

21

Husqvarna 539990548

HCS 1/4C X 1

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 539101111

PUMP

$1821.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102705

WHEEL MOTOR

$849.99

$

Usually ships in 3-10 days

0
