ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2000-03) Park Brake Assembly Parts Diagram

48" Zero-Turn Mower

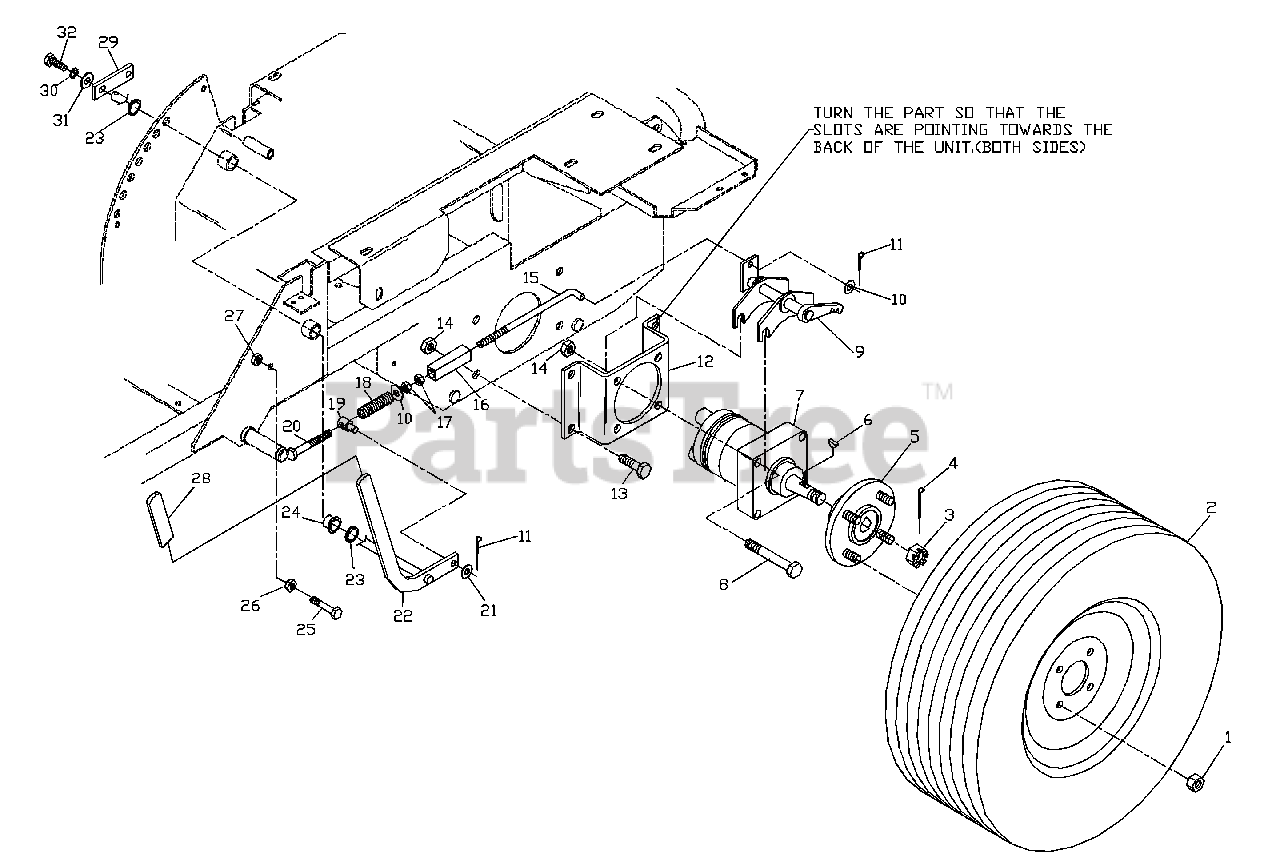

Park Brake Assembly Parts Diagram

  • Title

1

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

2

Husqvarna 539104591

REAR TIRE ASM.(COMPLETE)

$

$

Not available

2

Husqvarna 539103497

TIRE

$

$

Not available

2

Husqvarna 539104601

RIM
(Superseded to 539103498)

$

$

Not available

2

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 539101468

HEX SLOTTED NUT

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103244

HUB, W/SPROCKET

$339.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101465

KEY, #808 WOODRUFF

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102705

WHEEL MOTOR

$849.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 539103266

BRAKE WELDMENT LEFT

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539103265

BRAKE WELDMENT RIGHT

Note: (NOT SHOWN)

$97.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990365

1/8 X 3/4 COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 539103255

MOTOR STANDOFF

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539103273

BRAKE LINKAGE

$

$

Not available

16

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990196

5/16C HEX NUT

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539102796

SPRING

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103272

BRAKE SWIVEL

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103304

HCS 5/16C, SPECIAL

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539103574

PIVOT SHAFT

$141.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539991030

1/2" MACHINERY BUSHING

$0.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102519

BUSHING

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990730

HCS 3/8C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

28

Husqvarna 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 539103576

ARM, PARK BRAKE

$15.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990052

1/4" LOCKWASHER

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990598

WASHER 1/4" FLAT

$

$

Not available

32

Husqvarna 539990072

HCS 1/4C X 5/8"

$3.99

$

In Stock, only 3 left!

0
