ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2001-09) ELECTRICAL Parts Diagram

48" Zero-Turn Mower

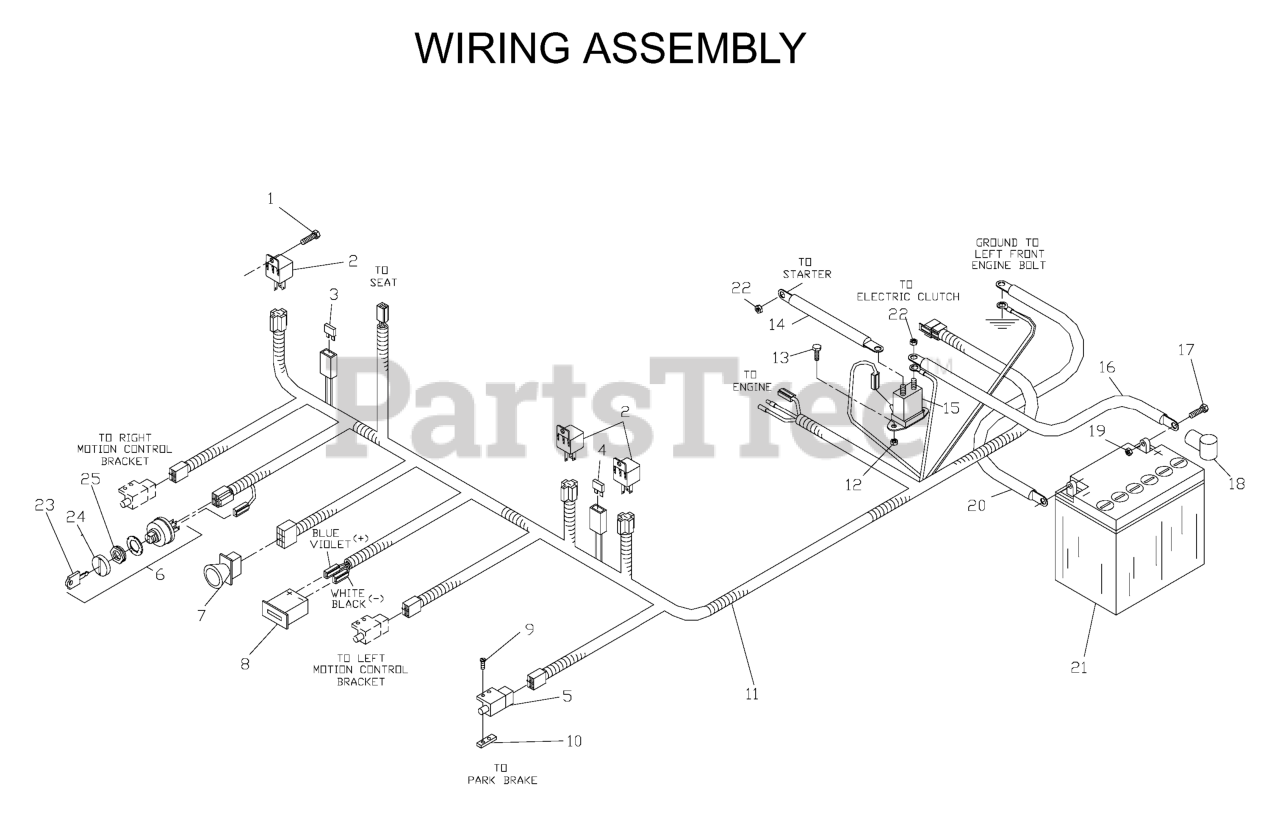

ELECTRICAL Parts Diagram

  • Title

4

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

9

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

14

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 14

0

18

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103276

WIRING HARNESS-KAW MINI

$

$

Not available

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

15

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

23

Husqvarna 539104812

KEY-PADDED

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

24

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, only 4 left!

0

13

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

1

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 539102758

CABLE-NEGATIVE

$15.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

8

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0
