ZTR 503 - Dixon Zero-Turn Mower (1991) T-BOX & HYDROSTATS ASSEMBLY Parts Diagram

Zero-Turn Mower

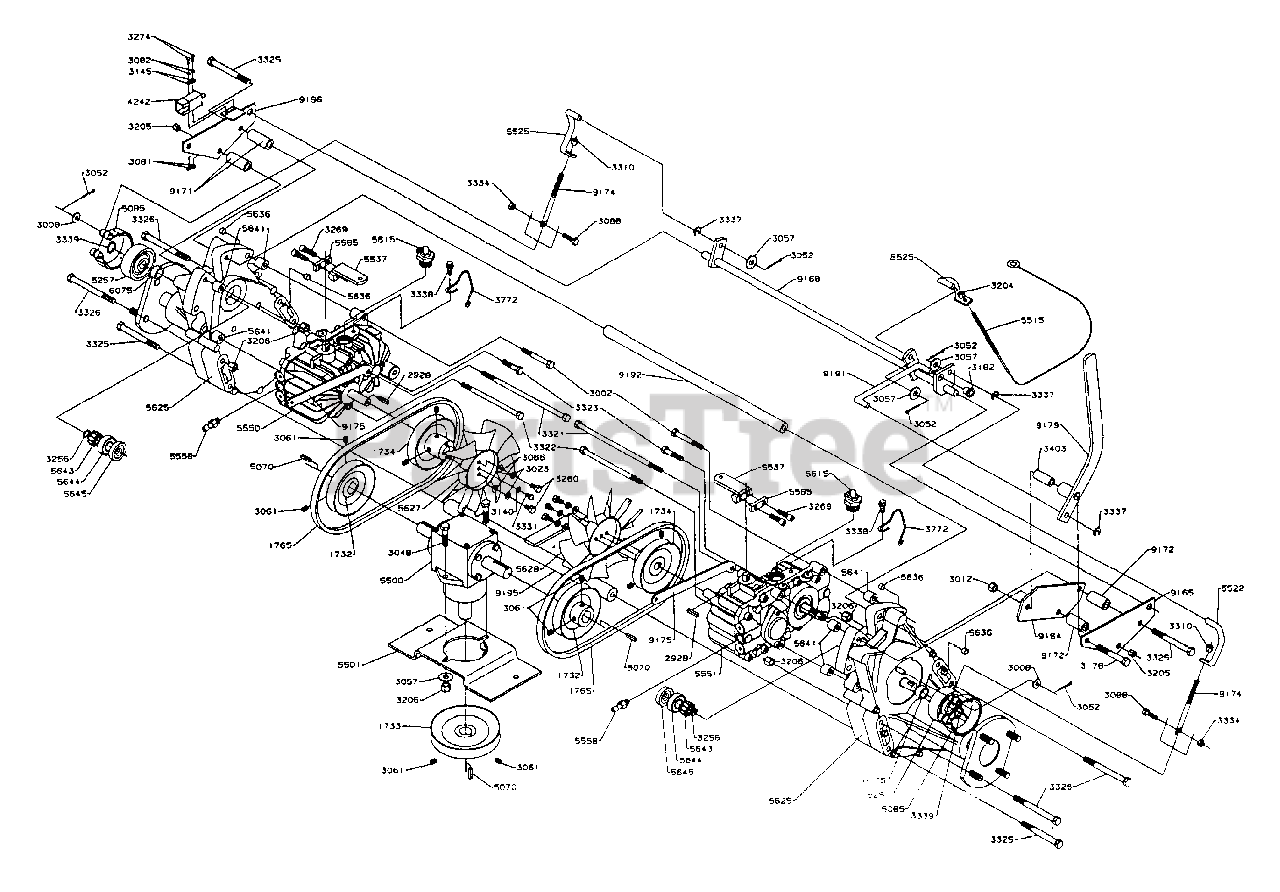

T-BOX & HYDROSTATS ASSEMBLY Parts Diagram

  • Title
1732

1732

4` A PULLEY-1732

$

$

Not available

1733

1733

5` B PULLEY-1733

$

$

Not available

1734

1734

4` A PULLEY-1734

$

$

Not available

1765

1765

V-BELT

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3081

3081

HEX NUT 6-32

$

$

Not available

3082

3082

LOCKWASHER #6

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3140

3140

1/4`ID DISC SPRING

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3256

3256

SNAP RING

$

$

Not available

3260

3260

1/4-20X1/2 HHB GR5

$

$

Not available

3269

3269

R/B 3093 5/16-18X1 SOC HD BLT

$

$

Not available

3274

3274

6-32X1/2 TRUSS HD PH

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3321

3321

5/16-18X8 HHB GR8

$

$

Not available

3322

3322

5/16-18X5-1/2HHB GR8

$

$

Not available

3323

Dixon 3323

5/16-18X1-1/2HHB GR8

$

$

Not available

3325

3325

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3331

3331

M6XP1X8MM HHBG8.8

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3337

3337

RETAINING RING

$

$

Not available

3338

3338

M8X1.25P HWH TAP SCR

$

$

Not available

3339

Dixon 3339

SNAP RING - 5/8`

$

$

Not available

3403

3403

BUSHING

$

$

Not available

3772

Dixon 3772

BY-PASS KEEPER

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5257

5257

BRAKE DRUM

$

$

Not available

5500

5500

T` BOX

$

$

Not available

5501

5501

MOUNT PLATE

$

$

Not available

5515

5515

IDLER CABLE

$

$

Not available

5522

5522

RH BRAKE LINK

$

$

Not available

5525

5525

LH BRAKE LINK

$

$

Not available

5537

5537

CONTROL ARM - TAPPED

$

$

Not available

5550

5550

HYDRO (BDU-10L-212)

$

$

Not available

5551

5551

HYDRO (BDU-10L-113)

$

$

Not available

5558

5558

HOSE FITTING

$

$

Not available

5585

5585

R/B 5537 DRILLED TAB

$

$

Not available

5615

5615

CONNECTOR/ELBOW ASM

$

$

Not available

5625

5625

GEARBOX (213-2500)

$

$

Not available

5627

Dixon 5627

CCW FAN

$

$

Not available

5628

5628

CW FAN

$

$

Not available

5636

5636

BRASS FERRULE

$

$

Not available

5641

5641

G-BOX MOUNT SPACER

$

$

Not available

5643

5643

INPUT GEAR - GB

$

$

Not available

5644

5644

BEARING - GEARBOX

$

$

Not available

5645

5645

BEARING SPACER - GB

$

$

Not available

6075

6075

ENG IDLER SPACER

$

$

Not available

9164

9164

BRAKE PLATE

$

$

Not available

9165

9165

BRAKE PLATE

$

$

Not available

9168

9168

BRAKE SHAFT WLDT

$

$

Not available

9171

9171

SPACER 1.75

$

$

Not available

9172

9172

SPACER 1.50

$

$

Not available

9174

9174

BRAKE ROD

$

$

Not available

9175

9175

SPRING ANCHOR

$

$

Not available

9179

9179

BRAKE LEVER WLDT

$

$

Not available

9191

9191

CONNECTING LINK

$

$

Not available

9192

9192

TIE BAR

$

$

Not available

9195

9195

TIE BAR WLDT

$

$

Not available

9196

9196

BRAKE PLATE

$

$

Not available
