ZTX 350 (2691713-00) - Snapper 52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton Transmission Group Parts Diagram

52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton

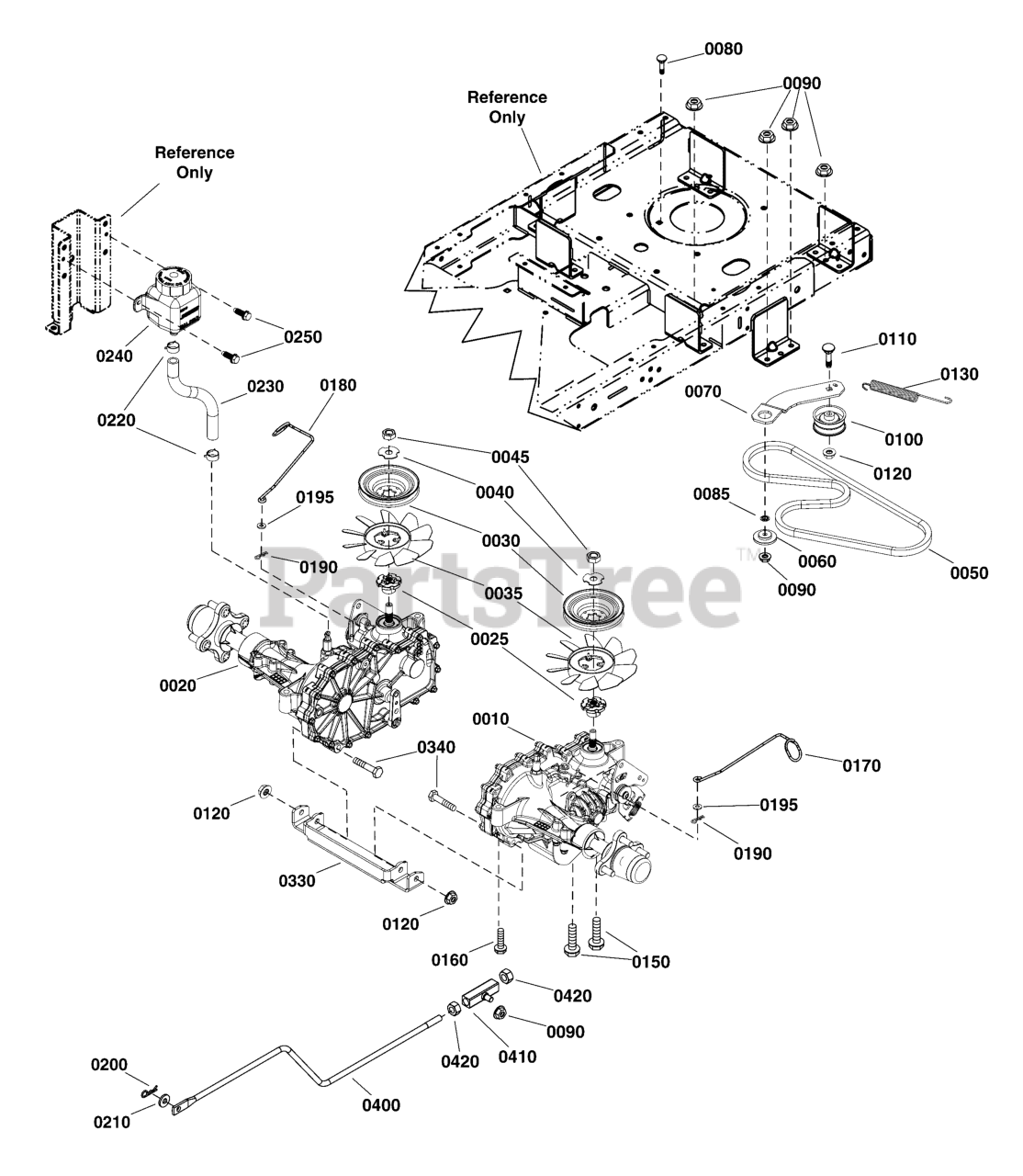

Transmission Group Parts Diagram

  • Title

0010

Snapper 84003845

TRANSMISSION, LH, Hydro Gear ZT 2800
(Superseded to 84007996)

Note: (Hydro Gear part Nos. ZH-JPBB-3F7B-2XLX)

$946.99

$

Usually ships in 2-12 days

0

0020

Snapper 84003846

TRANSMISSION, RH, Hydro Gear ZT 2800
(Superseded to 84004715)

Note: (Hydro Gear part Nos. ZH-MPBB-3F7C-3XLX)

$975.99

$

Usually ships in 2-12 days

0

0025

Snapper 84003847

SPACER, Transmission, 17 Tooth Spline

$7.99

$

Usually ships in 2-12 days

0

0030

Snapper 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 1 left!

0

0035

Snapper 1759448YP

FAN, Input

$14.99

$

In Stock, only 2 left!

0

0040

Snapper 5102914YP

WASHER, Slotted

$3.99

$

Usually ships in 2-12 days

0

0045

Snapper 5102916YP

NUT, ZT5400

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper 1758100YP

BELT, Transmission

$42.99

$

In Stock, Qty 5

0

0060

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0070

Snapper 1758044AYP

ARM, Idler

$20.99

$

In Stock, only 1 left!

0

0080

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0085

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 7

0

0100

Snapper 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

In Stock, only 4 left!

0

0110

Snapper 703879

BOLT, Carriage, 3/8-16X1-3/4, GR5

$3.99

$

In Stock, Qty 13

0

0120

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 1758045YP

SPRING, 7.18"Long, .75" OD, Extension

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0160

Snapper 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Snapper 1759246YP

ROD, Release, RH

$14.99

$

Usually ships in 2-12 days

0

0190

Snapper 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 8

0

0195

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0200

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 6

0

0220

Snapper 5025474SM

CLAMP, Hose .75"

$3.49

$

Usually ships in 2-12 days

0

0230

Snapper 5050857X9SM

HOSE, 1/2" Push-On, 9"

$8.99

$

Usually ships in 2-12 days

0

0240

Snapper 5100473SM

RESERVOIR, Hydro

$40.99

$

In Stock, only 4 left!

0

0250

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

0330

Snapper 1759172AYP

SUPPORT, Front Transmission

$64.99

$

Usually ships in 2-12 days

0

0340

Snapper 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

0400

Snapper 84002180

CONTROL ROD, Transmission

$60.99

$

Usually ships in 2-12 days

0

0410

Snapper 84002181

TRUNNION

$10.99

$

Usually ships in 2-12 days

0

0420

Snapper 7090460SM

NUT, 7/16F, GR5, Hex

$2.49

$

Usually ships in 2-12 days

0

0500

Snapper 7600158YP

KIT, Hub Replacement

$122.99

$

Usually ships in 2-12 days

0
